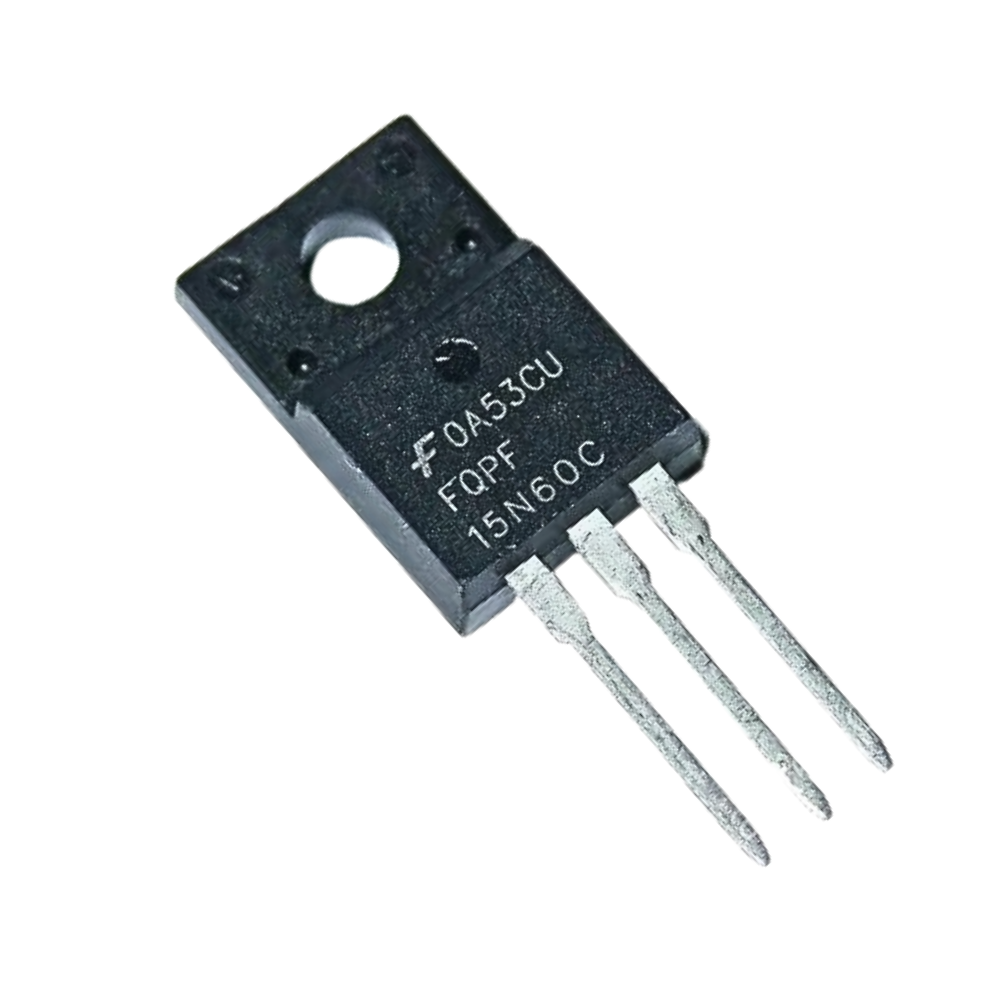

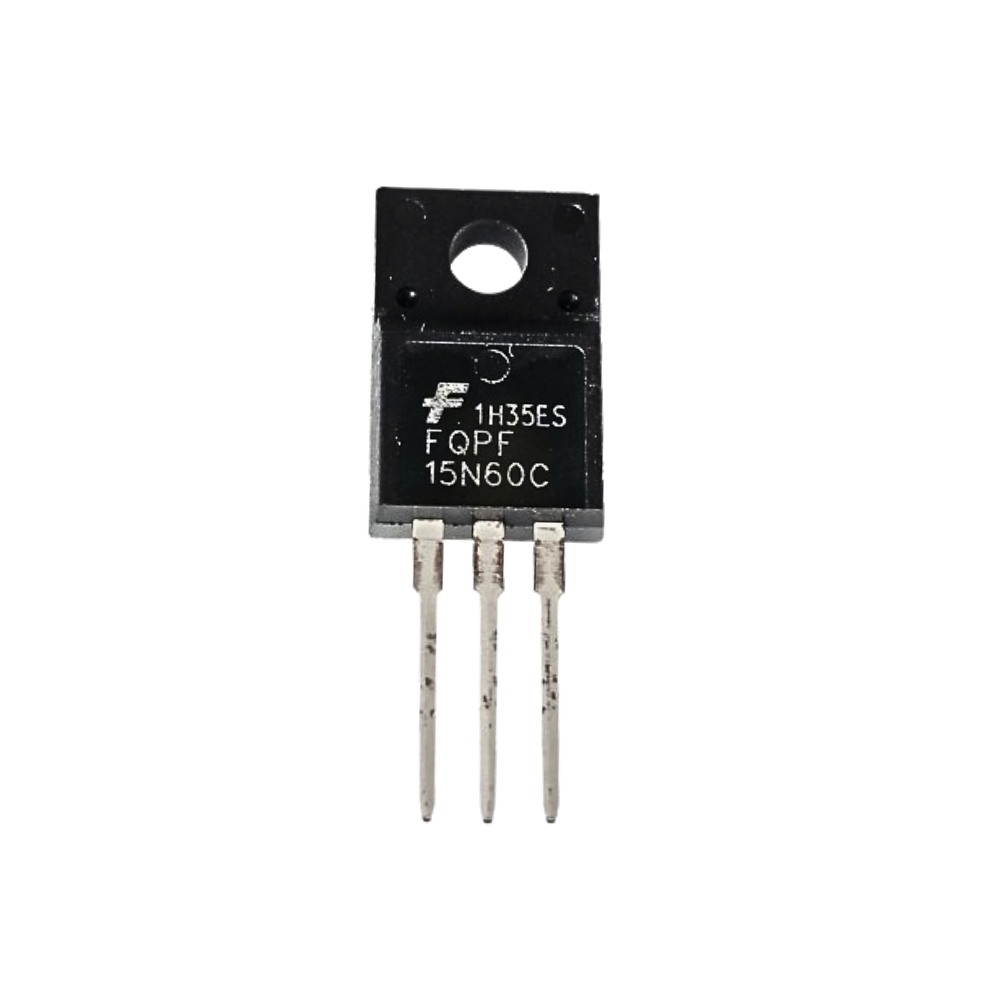

15N60 / 15N65 N-Channel Power MOSFET – High Quality and Reliable for Power Electronics
The 15N60 / 15N65 is a high-performance N-Channel Power MOSFET designed for reliable and efficient switching in high-voltage and high-speed power applications. These transistors offer excellent thermal performance, low gate charge, and fast switching characteristics—making them ideal for use in power electronics such as LED TVs, SMPS, inverters, and other industrial-grade circuits.
Key Features:
✅ Type: N-Channel
✅ Voltage Rating:
-
15N60: 600V
-
15N65: 650V
✅ Current Rating: 15A Continuous Drain Current
✅ Low On-Resistance: Reduces power loss
✅ Fast Switching Speed: Suitable for high-frequency applications
✅ High Efficiency: Improved thermal and electrical performance
✅ TO-220 Package: Easy to mount and solder
✅ Reliable and Durable: Designed for long-term operation in rugged environments
Technical Specifications Table:
| Parameter | 15N60 Specification | 15N65 Specification |
|---|---|---|
| Drain-Source Voltage (V<sub>DS</sub>) | 600V | 650V |
| Continuous Drain Current (I<sub>D</sub>) | 15A | 15A |
| Gate Threshold Voltage (V<sub>GS(th)</sub>) | 2.0V – 4.0V | 2.0V – 4.0V |
| Total Gate Charge (Q<sub>g</sub>) | ~100nC | ~105nC |
| R<sub>DS(on)</sub> (max) | < 0.4Ω | < 0.5Ω |
| Package Type | TO-220 | TO-220 |
Applications:
-
Switched Mode Power Supplies (SMPS)
-
LED TV Power Boards
-
Inverter Circuits
-
Motor Control Systems
-
Battery Chargers
-
UPS Systems
-
Solar Power Controllers
-
Industrial Power Modules
