6 in 1 Multifunctional AC Voltage and Current Digital Display Instrument Energy Meter D69-2058
The D69-2058 is a high-precision 6-in-1 multifunctional AC digital display meter, designed for real-time monitoring of essential electrical parameters in one compact unit. Ideal for use in distribution boxes, control panels, industrial equipment, and home energy monitoring, this intelligent meter provides clear, simultaneous readouts of AC voltage, current, active power, power factor, frequency, and energy consumption (kWh) on a backlit LCD screen.
Key Features (Point-by-Point)
-
6 in 1 Functionality: Displays six crucial electrical parameters:
-
Voltage (V)
-
Current (A)
-
Active Power (W)
-
Energy (kWh)
-
Power Factor (PF)
-
Frequency (Hz)
-
-

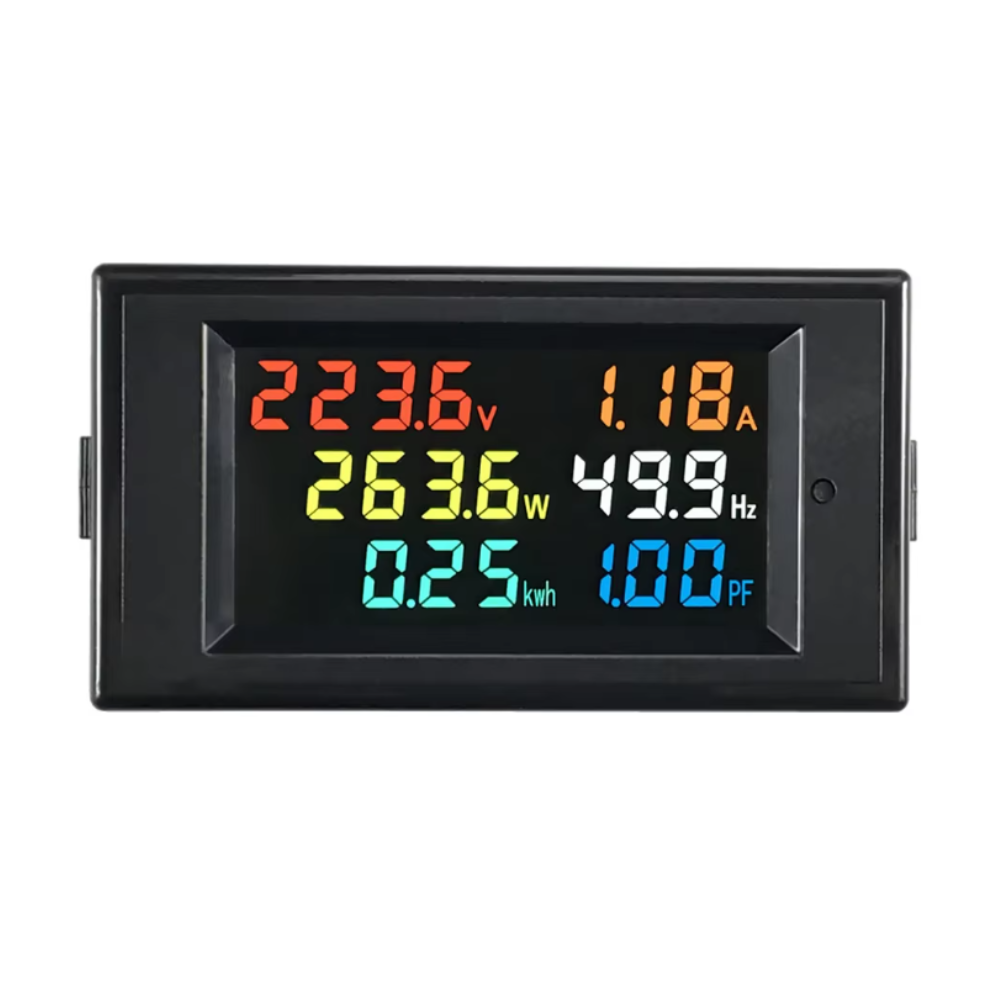

Digital LCD Display: Clear backlit screen with easy-to-read digits, suitable for dark environments.
-
High Accuracy: Provides reliable and accurate measurement with minimal deviation.
-
Compact & Durable Design: Built with high-quality materials, compact form factor fits in standard panel cutouts.
-

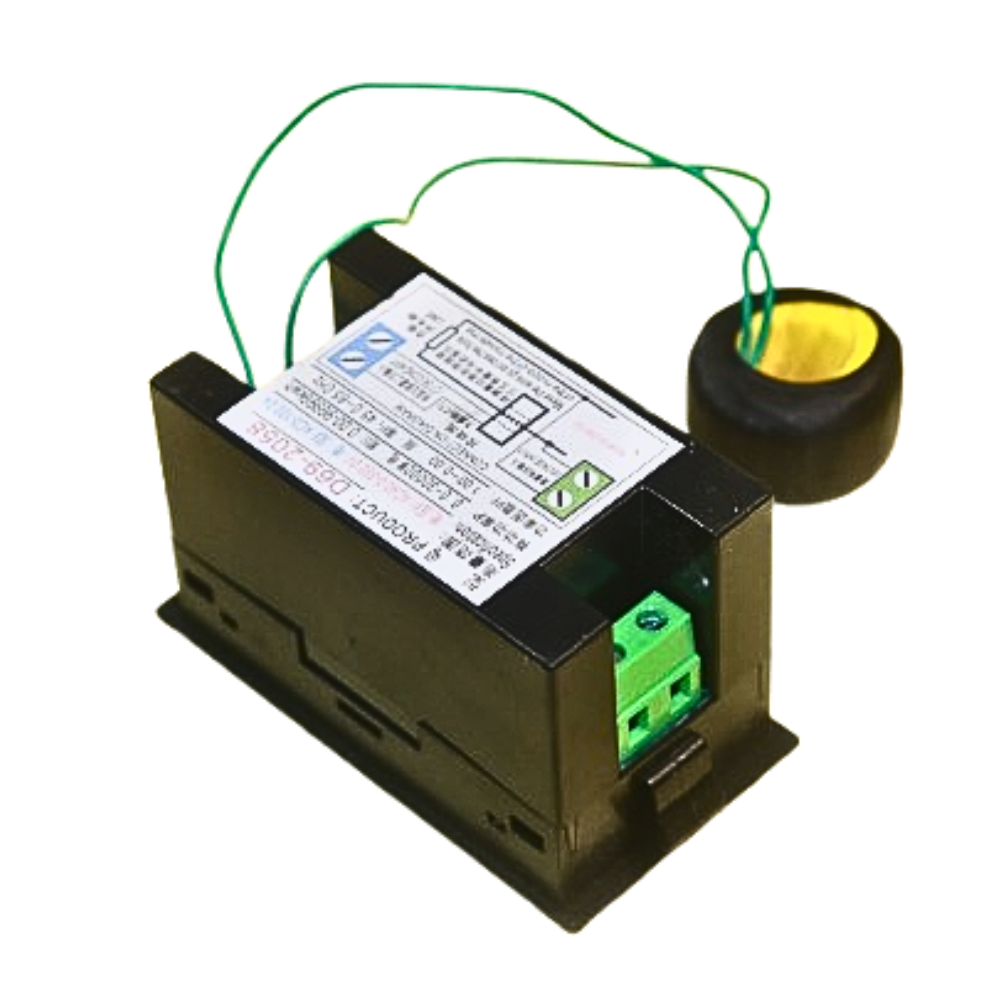

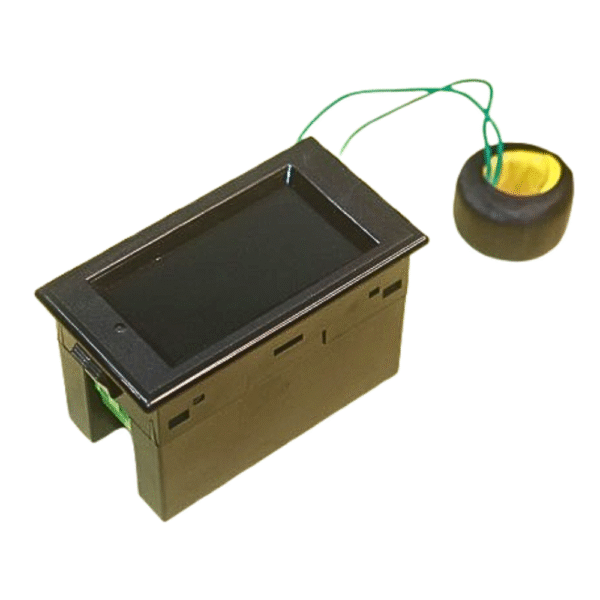

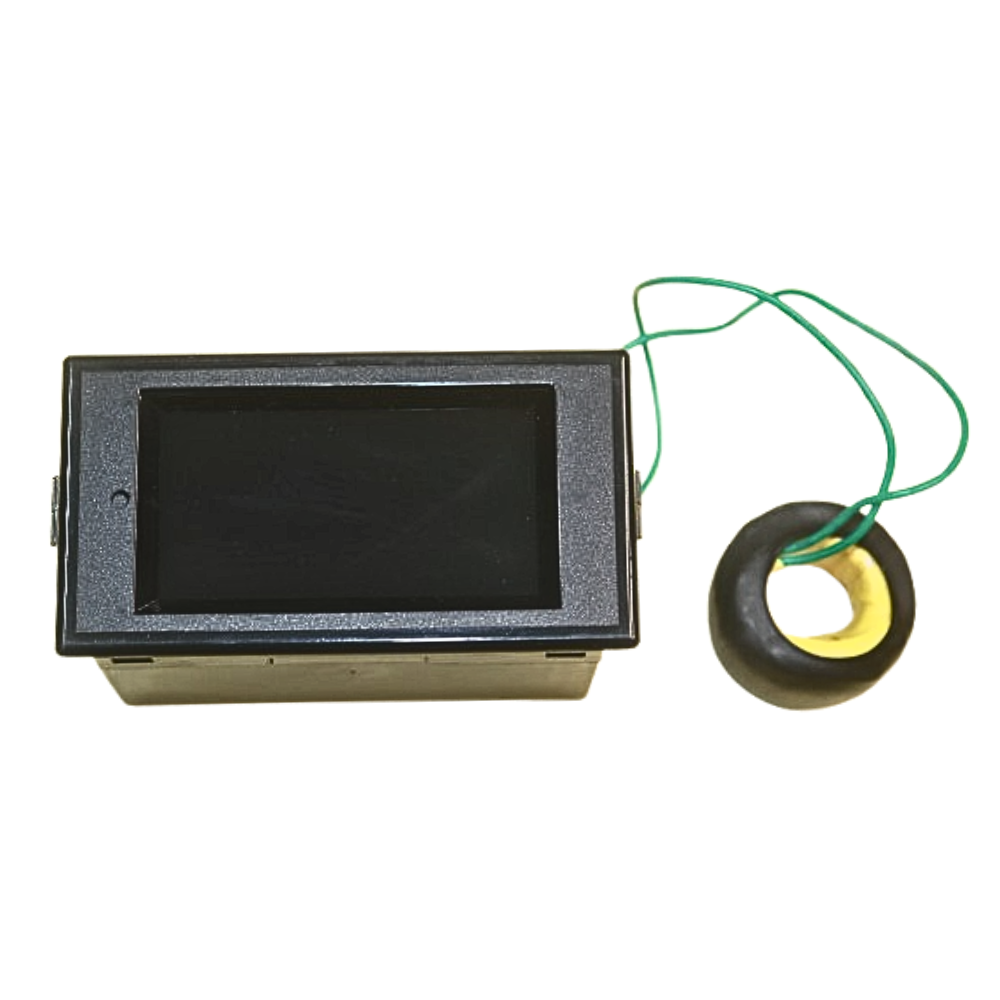

External CT (Current Transformer): Included with the package for easy and safe current measurement without cutting wires.
-
Real-Time Monitoring: Continuously updates and displays parameters in real-time.
-
Wide Application Voltage: Operates on 80–300V AC input voltage.
-
Overload Protection Display: Shows an overload symbol when power consumption exceeds rated power.
Technical Specifications Table
Parameter | Specification |
---|---|
Model | D69-2058 |
Input Voltage Range | AC 80V – 300V |
Measuring Current Range | 0 – 100A (with external CT) |
Frequency Range | 45 – 65Hz |
Active Power Range | 0 – 22kW |
Energy Range | 0 – 9999.99 kWh |
Power Factor Range | 0.00 – 1.00 |
Display Type | LCD with Backlight |
Installation Type | Panel Mount (Rectangular cut-out required) |
CT Cable Length | Approx. 15cm |
Refresh Rate | 1 second |
Accuracy Class | ±1% |
Applications
-
Electrical distribution panels
-
Energy monitoring in homes and offices
-
Load management in industrial machines
-
DIY solar and inverter setups
-
Educational electronics projects
-
Generator output monitoring
-
Smart energy consumption tracking
