Sale!

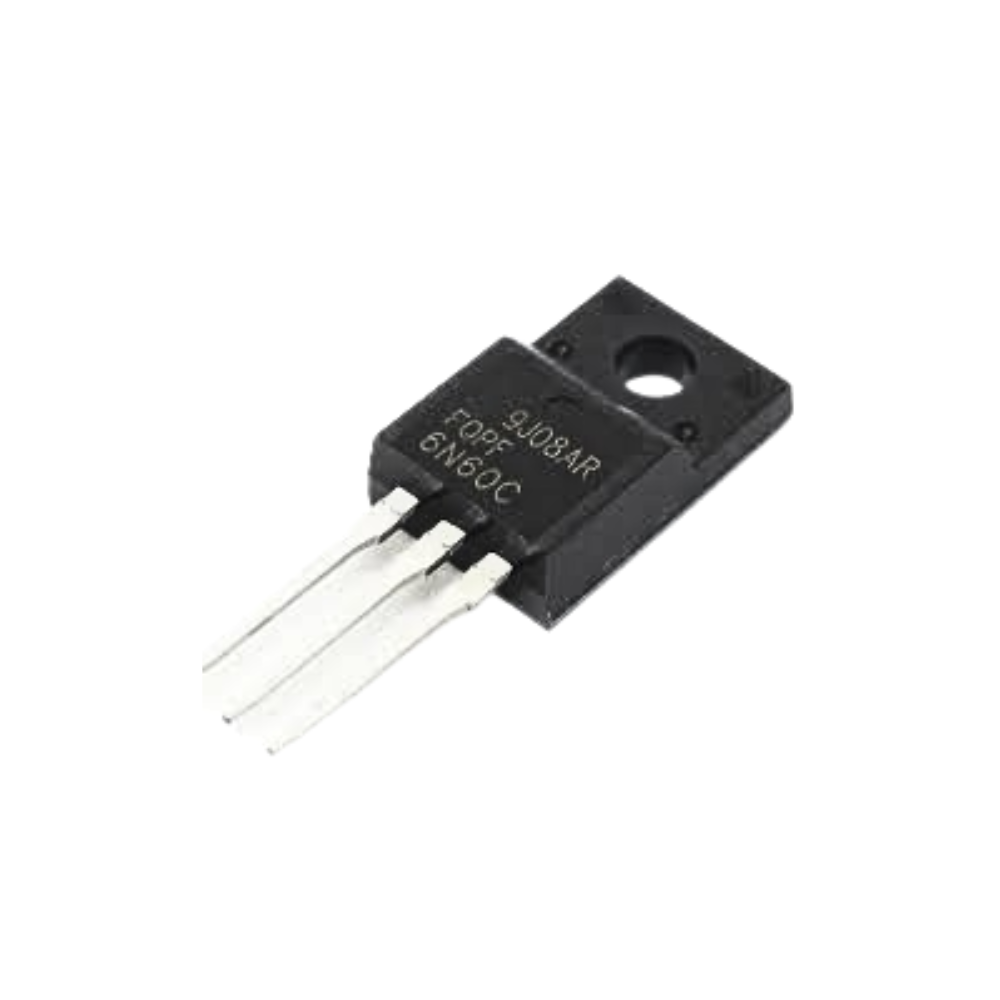

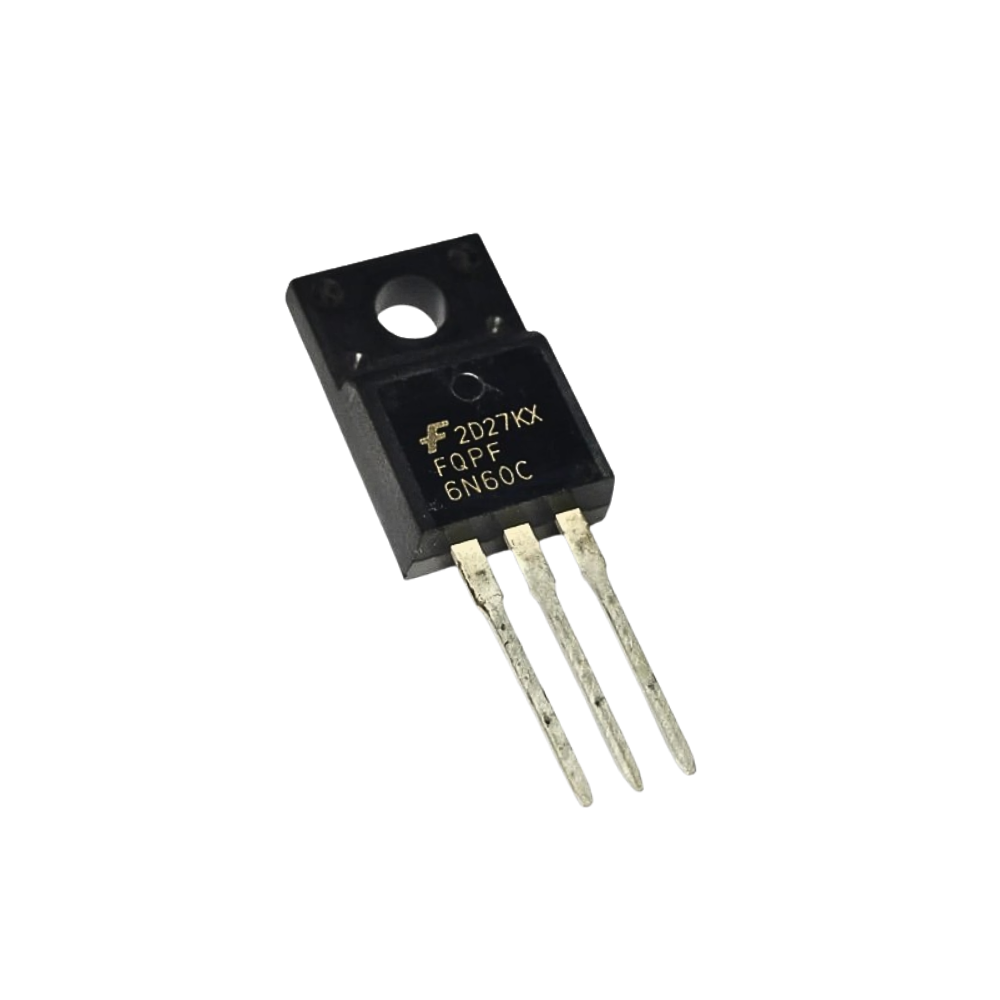

6N60 / 6N65 N-Channel Power MOSFET – High Quality and Reliable

Original price was: ₹49.00.Current price is: ₹45.00.

  • 6N60 MOSFET
  • 6N65 MOSFET
  • N-Channel Power Transistor
  • High Voltage MOSFET
  • TO-220 MOSFET
  • LED Driver MOSFET
  • SMPS Component
  • Inverter MOSFET
  • Power Switching Transistor
  • Electronics Repair Parts

In stock

Quantity Discount (%) Price
1 45.00
2 - 4 11.11 % 40.00
5 - 9 17.78 % 37.00
10+ 22.22 % 35.00

Description

6N60 / 6N65 N-Channel Power MOSFET – High Quality and Reliable

The 6N60 / 6N65 is a high-performance N-Channel Power MOSFET designed for efficient switching and power control in a wide range of electronic devices. With high voltage handling capabilities and fast switching speeds, this MOSFET is ideal for applications in SMPS (Switched-Mode Power Supplies), LED drivers, inverters, and other power management systems.

Made from high-quality materials and tested for performance and durability, the 6N60 / 6N65 MOSFET offers low Rds(on), high-speed switching, and excellent thermal stability, ensuring reliable and long-lasting operation.

Key Features:

  • Type: N-Channel Power MOSFET

  • Voltage Rating: 600V / 650V (6N60 = 600V, 6N65 = 650V)

  • Current Rating: Up to 4.5A

  • Low Gate Charge for Fast Switching

  • Low On-Resistance (Rds(on))

  • High Input Impedance

  • Reliable and Durable Package (TO-220)

  • Suitable for High-Efficiency Power Applications

Technical Specifications Table:

Parameter 6N60 6N65
Drain-Source Voltage (Vds) 600V 650V
Continuous Drain Current (Id) 4.5A 4.5A
Gate Threshold Voltage (Vgs(th)) 2V – 4V 2V – 4V
Max Gate Voltage (Vgs) ±30V ±30V
Power Dissipation (Pd) 50W 50W
Package Type TO-220 TO-220
Rds(on) (max) ~1.2Ω ~1.3Ω

Applications:

  • ✅ SMPS (Switched Mode Power Supplies)

  • ✅ LED Lighting Circuits

  • ✅ Inverter and UPS Systems

  • ✅ Battery Chargers

  • ✅ AC-DC Converters

  • ✅ Power Management Circuits

  • ✅ General Purpose Switching

Additional information

Weight 0.01 kg
Dimensions 4 × 3 × 3 cm
