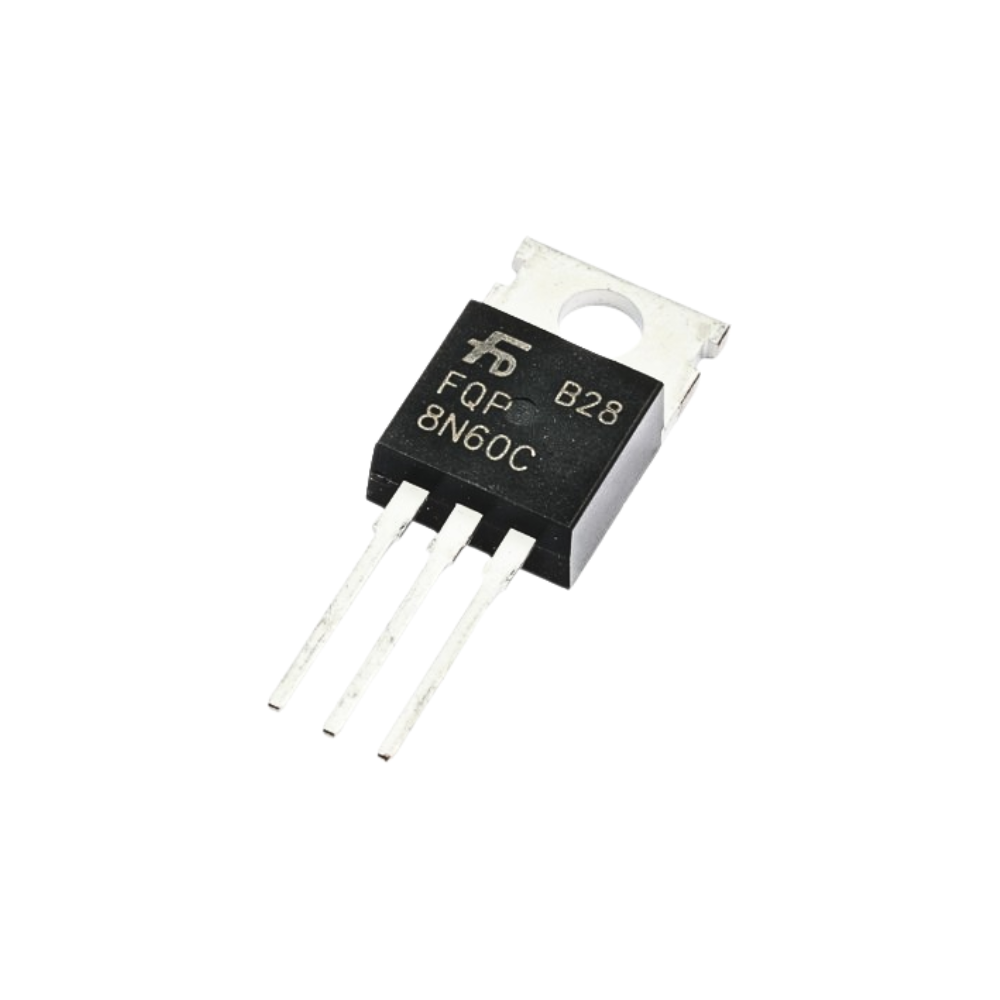

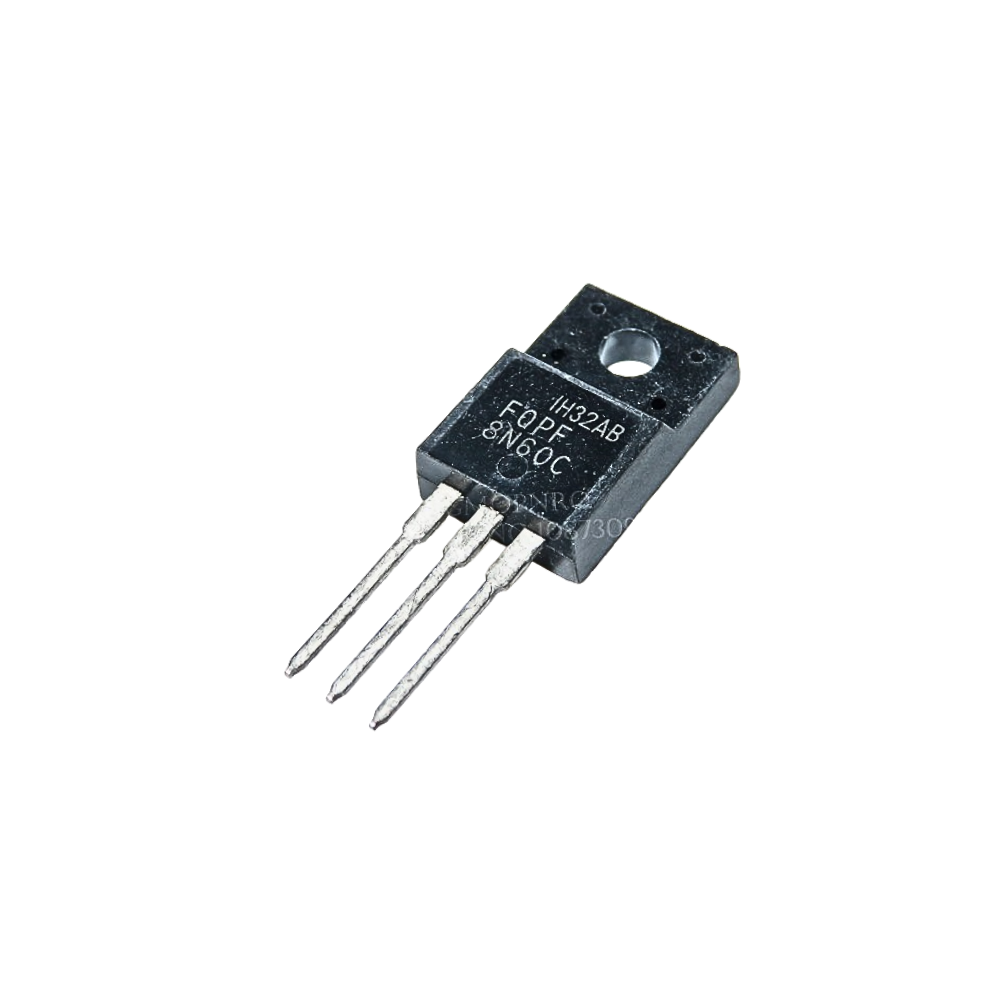

8N60 / 8N65 N-Channel Power MOSFET – High Quality and Reliable for Power Electronics
The 8N60 and 8N65 are N-Channel Power MOSFETs designed for high-performance, efficient switching and power handling in a variety of power electronics applications. These components are widely used in LED TVs, SMPS, inverters, battery chargers, and other power management devices due to their high voltage tolerance and low Rds(on) values.
Key Features:
-
✅ N-Channel Type: Ideal for high-efficiency switching applications
-
✅ Voltage Ratings:
-
8N60: 600V
-
8N65: 650V
-
-
✅ Current Handling: Capable of handling high drain current, typically up to 8A
-
✅ Low Rds(on): Low on-state resistance reduces heat and power loss
-
✅ Fast Switching Speed: Enhances efficiency in power conversion circuits
-
✅ TO-220 Package: Standard package for easy heat dissipation and mounting
-
✅ High Reliability: Suitable for continuous operation in demanding environments
Technical Specifications Table:
| Parameter | 8N60 | 8N65 |
|---|---|---|
| Type | N-Channel MOSFET | N-Channel MOSFET |
| Vds (Drain-Source) | 600V | 650V |
| Id (Continuous Drain Current) | 8A | 8A |
| Rds(on) (Max) | ~0.85Ω | ~0.95Ω |
| Package | TO-220 | TO-220 |
| Gate Threshold Voltage | 2.0V – 4.0V | 2.0V – 4.0V |
| Max Power Dissipation | ~125W | ~130W |
| Temperature Range | -55°C to +150°C | -55°C to +150°C |
Applications:
-
✔️ SMPS (Switch Mode Power Supplies)
-
✔️ LED TVs and Monitors
-
✔️ DC to DC Converters
-
✔️ Battery Chargers
-
✔️ Power Amplifiers
-
✔️ Inverters
-
✔️ General Purpose Power Electronics
