Description

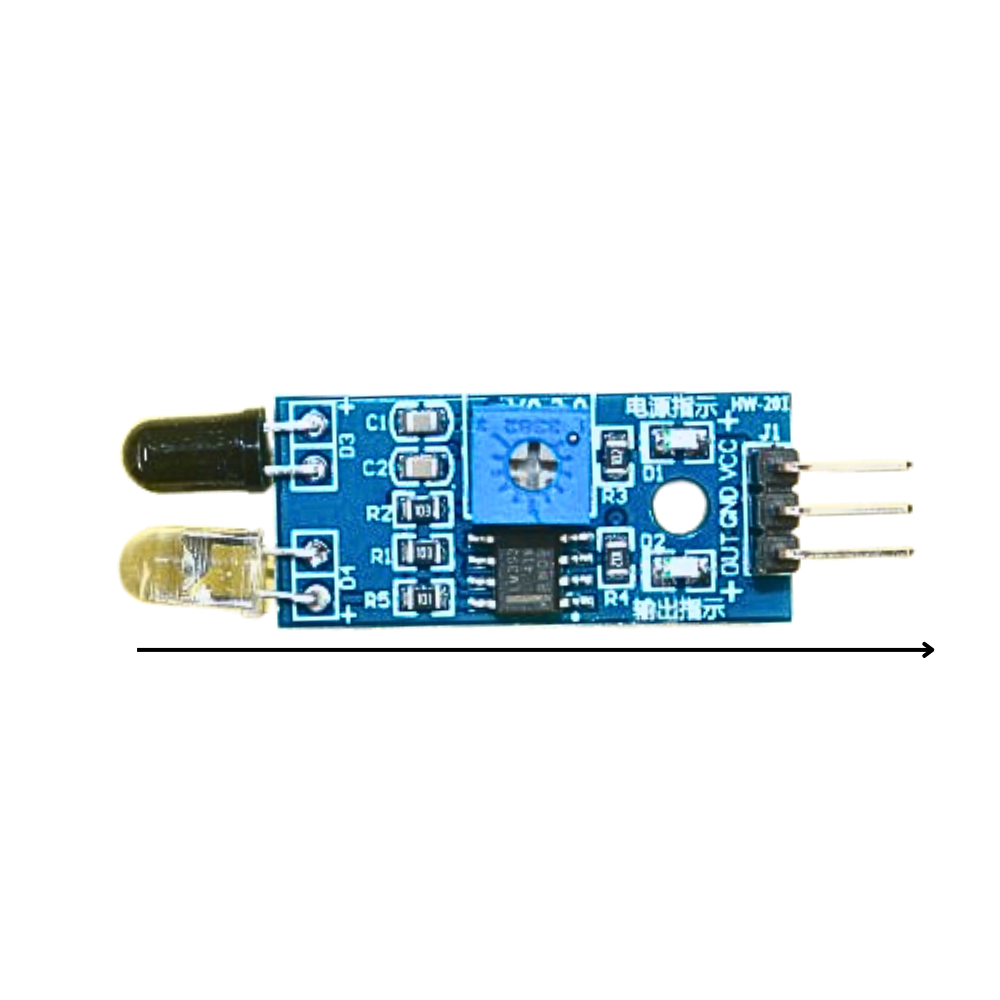

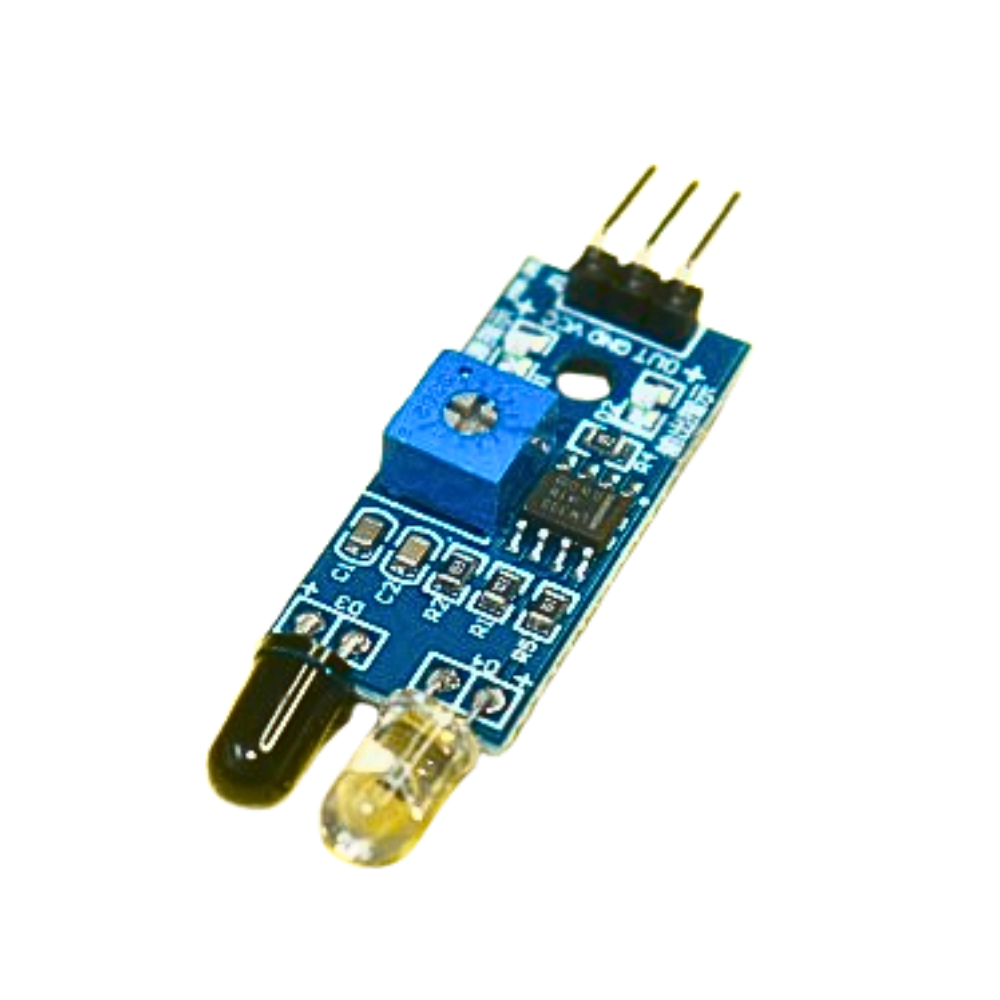

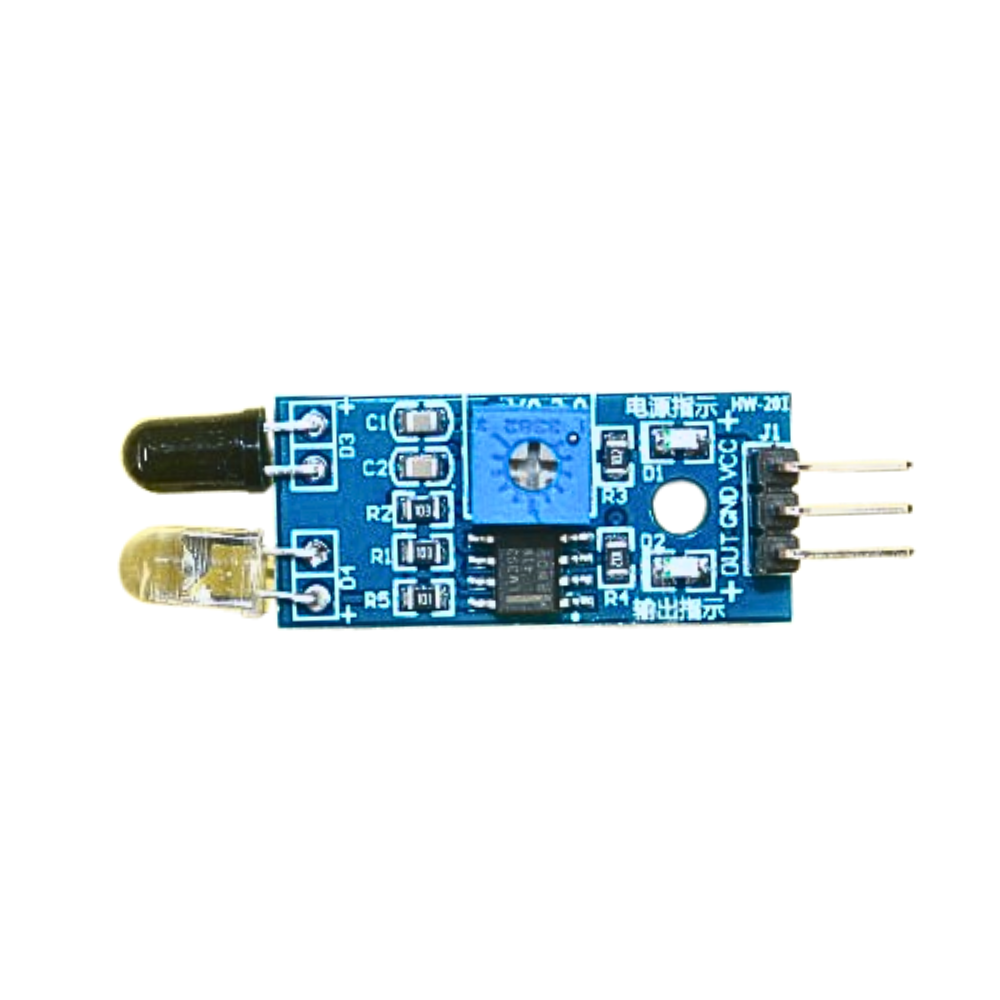

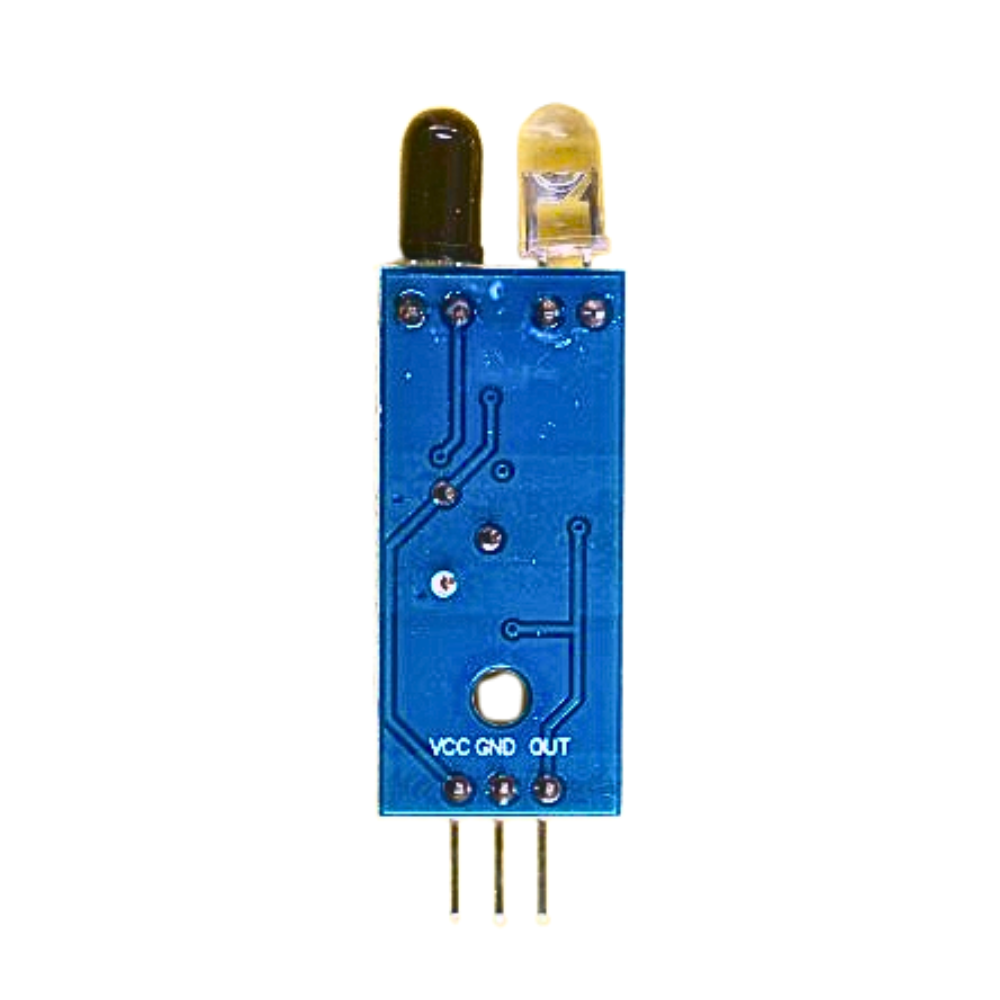

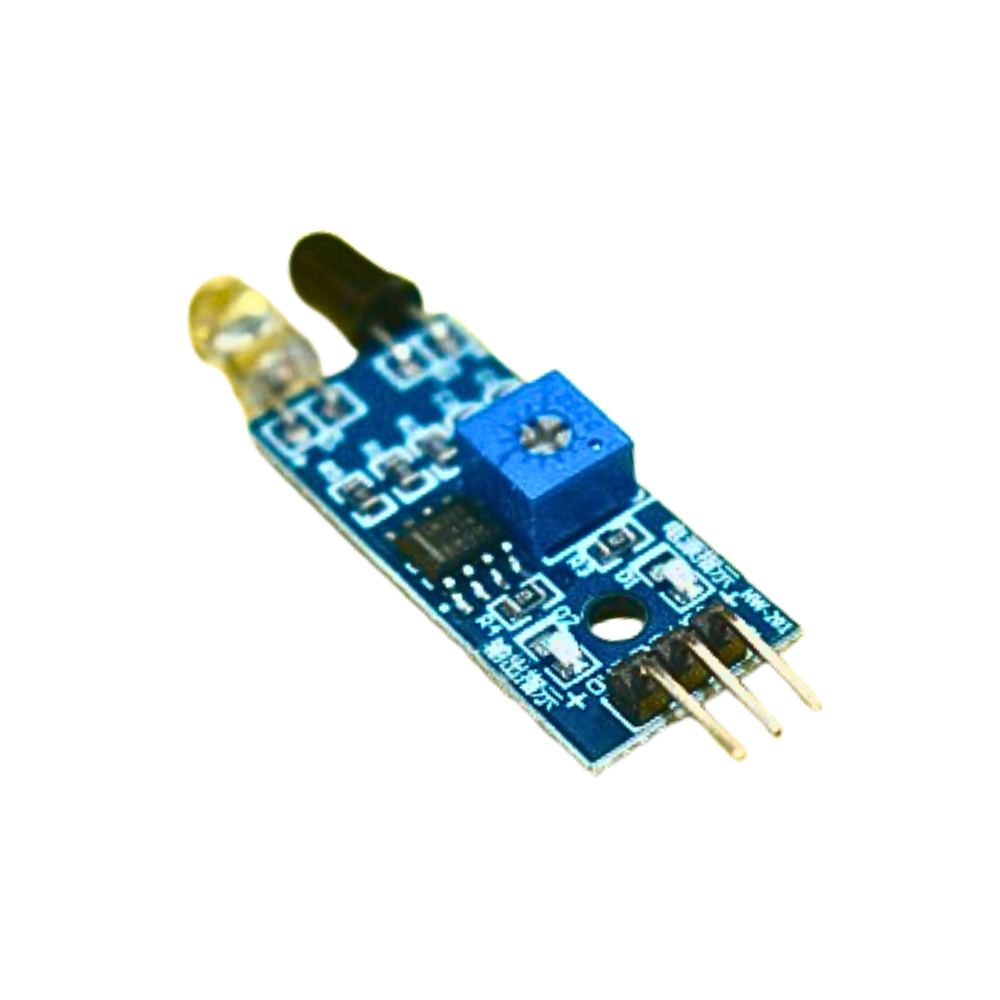

🔧 IR (Infrared) Obstacle Avoidance Sensor Module – Smart Detection for DIY Projects 🤖
Upgrade your robotics or automation project with this compact and powerful IR Obstacle Avoidance Sensor Module. Designed to detect objects or surfaces in front of it using infrared light, this module is a must-have for Arduino, robotics, and line-following bots.
✅ Key Features & Benefits:
-
🚫 Obstacle Detection: Easily detects objects in its path using reflected IR signals.
-
📏 Adjustable Sensitivity: Built-in potentiometer to fine-tune detection distance.
-
🔌 Simple Interface: Standard 3-pin interface (VCC, GND, OUT) for quick connection.
-
⚡ Low Power Consumption: Operates on just 3.3V to 5V DC.
-
🔄 Fast Response Time: Ideal for real-time object detection.
-
💡 LED Indicators: Onboard power and detection status LEDs for easy debugging.
📋 Technical Specifications:
| Parameter | Details |
|---|---|
| Operating Voltage | 3.3V – 5V DC |
| Output Type | Digital (High/Low) |
| Detection Distance | 2cm to 30cm (Adjustable) |
| IR Wavelength | ~760 nm |
| Interface | 3-pin (VCC, GND, OUT) |
| Board Dimensions | Approx. 3.2 cm x 1.4 cm |
| Indicator LEDs | Power & Detection Signal LEDs |
| Mounting Holes | Yes |
| Compatible With | Arduino, Raspberry Pi, Robotics |
🎯 Applications:
-
🤖 Line Following Robots
-
🚗 Obstacle Avoiding Robots
-
🚪 Automatic Door Systems
-
🖐️ Touchless Object Detection
-
🏠 Home Automation Projects
-
🎮 DIY Electronic Projects
