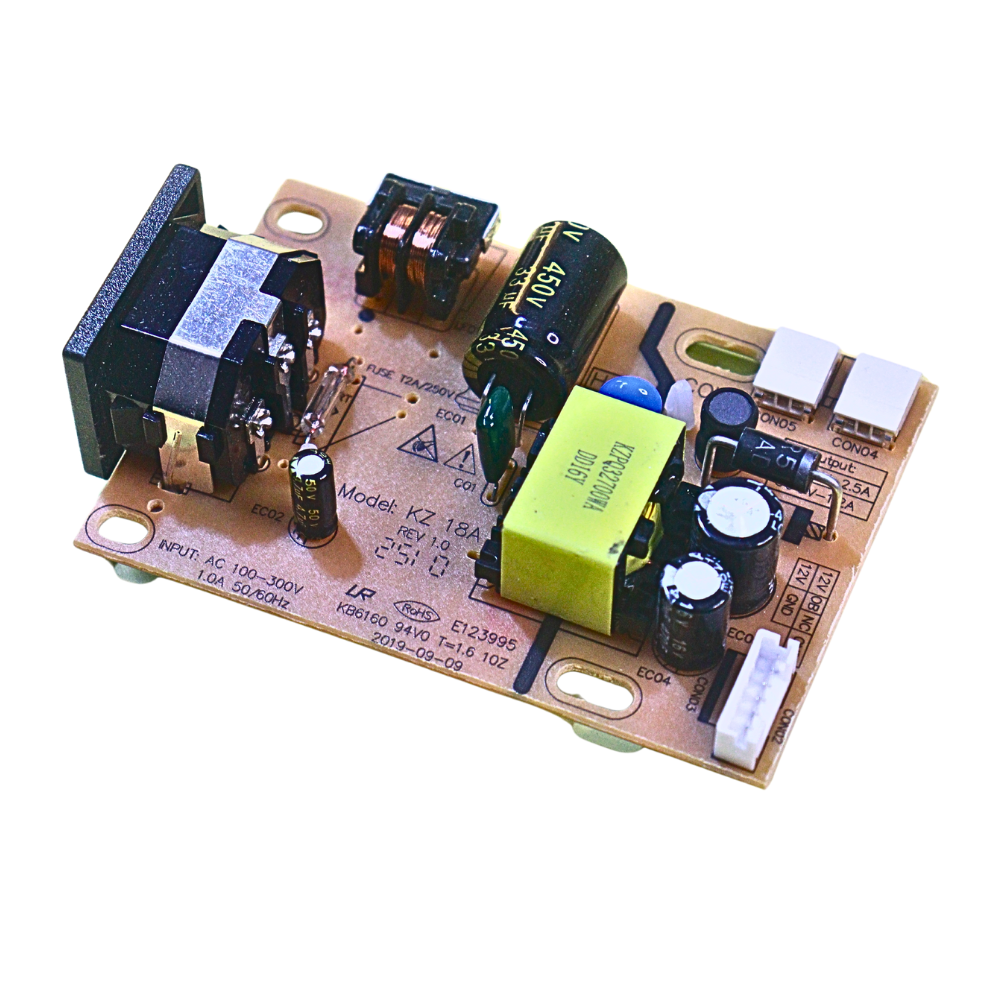

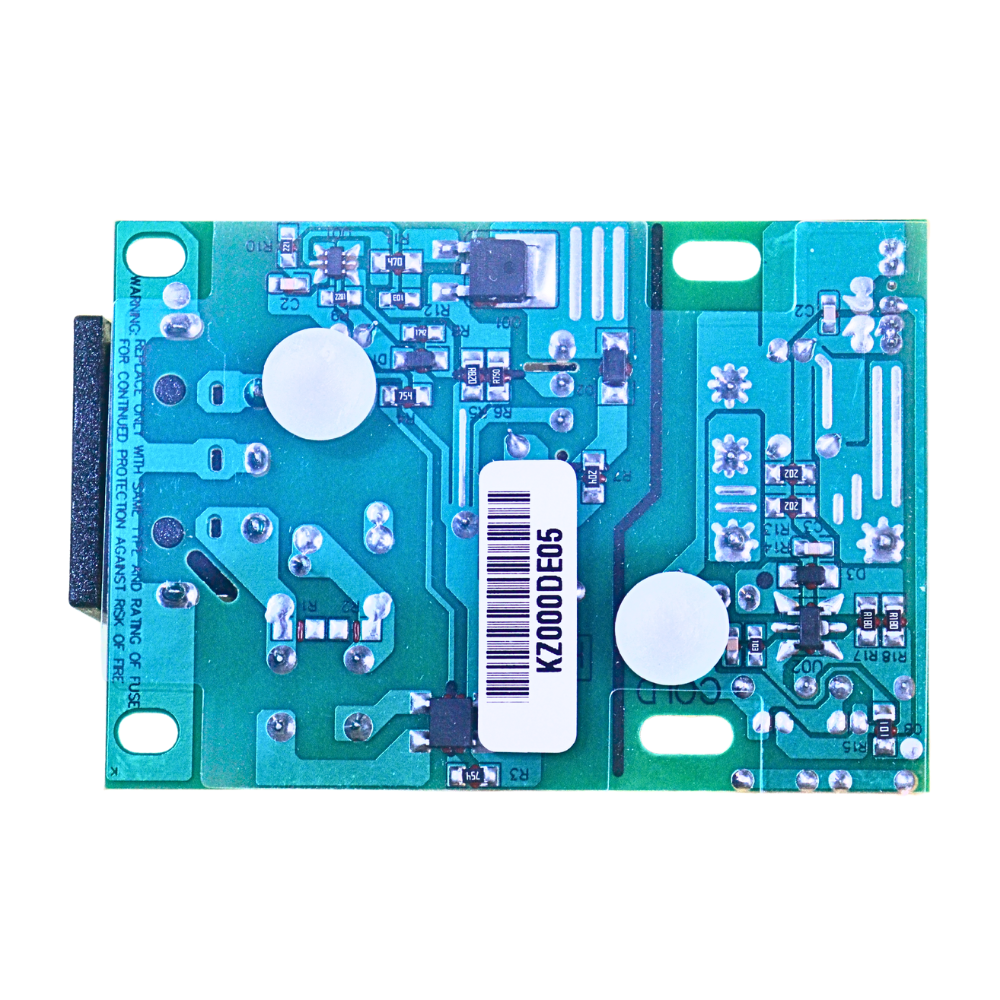

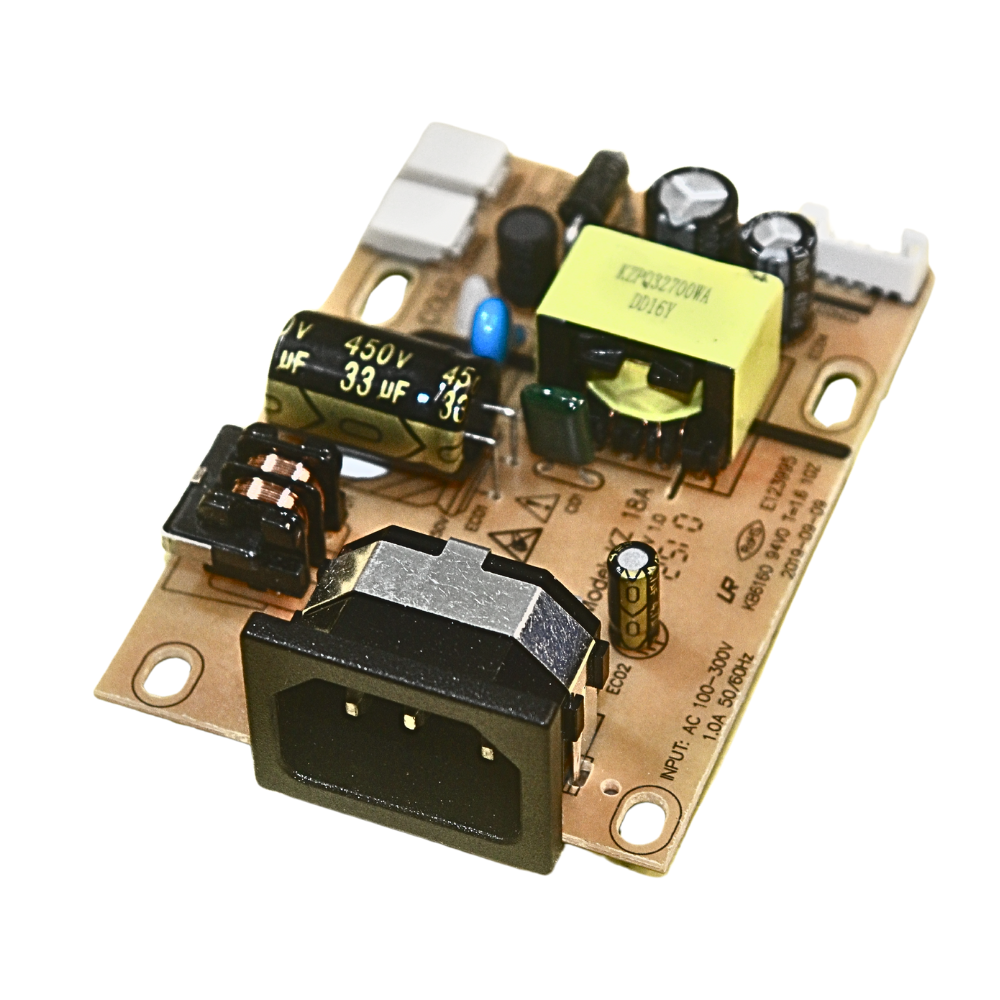

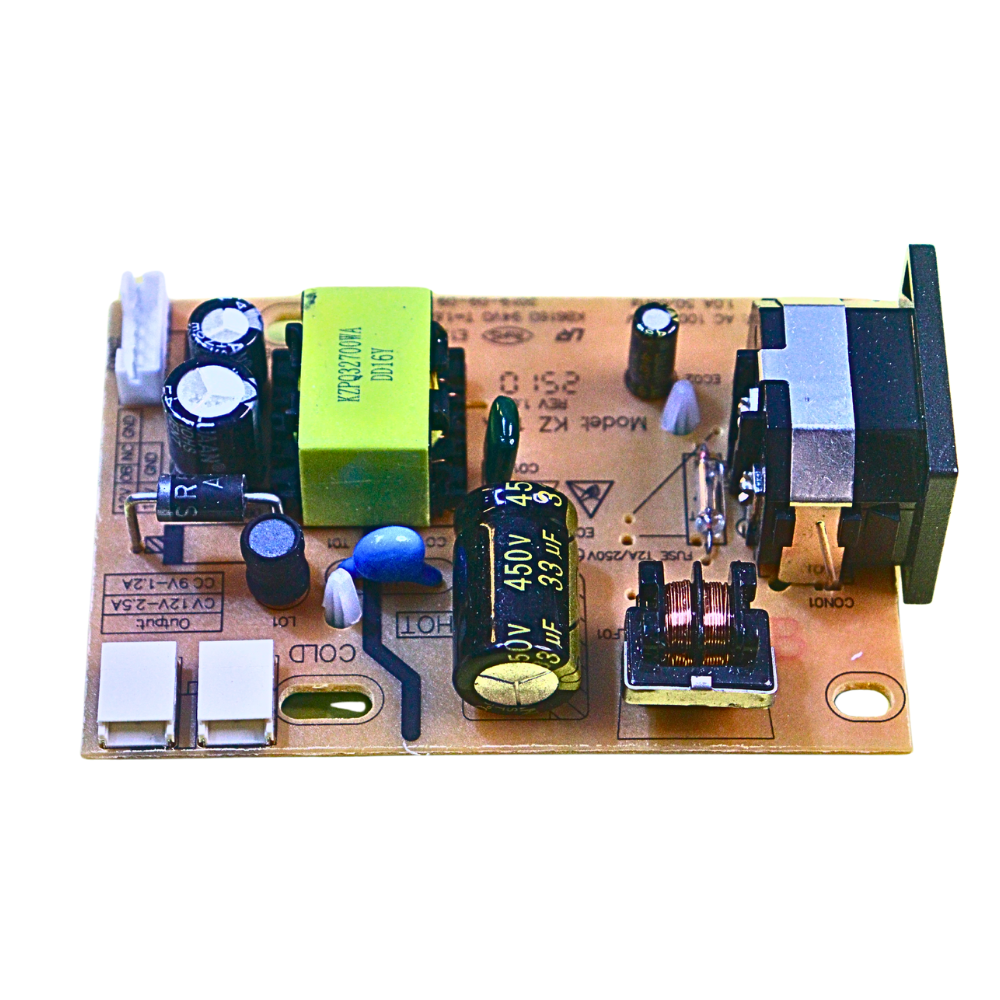

KZ-18A Monitor SMPS Power Supply with Double Backlight Connector – High-Quality & Reliable 12V Power Supply Board
The KZ-18A Monitor SMPS Power Supply Board is a premium-quality power solution designed for various LED and LCD monitors. With stable voltage output and dual backlight connectors, it ensures efficient and long-lasting performance.
Perfect for technicians, repair shops, and DIY enthusiasts, this SMPS board provides steady 12V DC output, low noise, and high conversion efficiency.
⚙️ Key Features:
- 🔋 Stable 12V Output: Ensures reliable power delivery to the monitor mainboard.
- 💡 Double Backlight Connector: Supports dual LED backlight outputs for better brightness control.

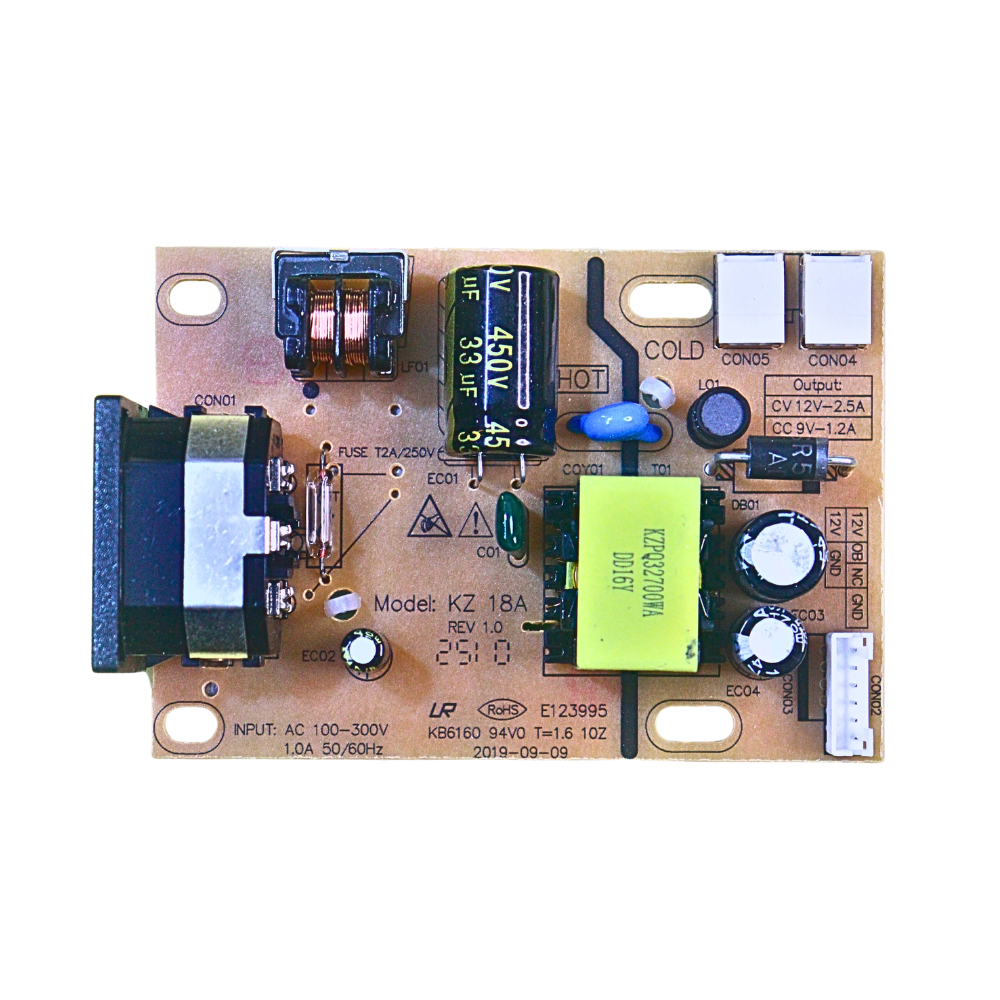

- 🔧 6-Pin Output Connector: Includes all essential lines — 12V (2 Pins), Enable (EN), Adjust (ADJ), and Ground (2 Pins).
- ⚡ High Efficiency: Designed for low power loss and minimal heat generation.
- 🛠️ Ideal for Repairs & Replacements: Perfect replacement part for faulty monitor SMPS boards.
- 🧩 Compact & Durable Design: Fits easily into standard monitor casings.
- 🔒 Protection Built-In: Over-voltage, over-current, and short-circuit protection for safety and long life.
📊 Technical Specifications:
| Specification | Details |
|---|---|
| Model Name | KZ-18A |
| Type | Monitor SMPS Power Supply |
| Input Voltage | AC 100–240V, 50/60Hz |
| Output Voltage | DC 12V |
| Output Connector Type | 6-Pin |
| Output Pins | 12V (2 Pins), Enable (EN), Adjust (ADJ), Ground (2 Pins) |
| Backlight Connector | Double Backlight Output |
| Application | LED/LCD Monitor Power Board Replacement |
| Build Quality | High-Quality Components with Long Life |
🧰 Applications:
- This KZ-18A Power Supply Board is suitable for:
- 🖥️ LED/LCD Monitors – as a replacement or upgrade power board.
- 🧑🔧 Electronics Repair Shops – for professional use and testing.
- ⚙️ DIY Projects – for creating or repairing custom display systems.
- 🔌 Training/Teaching Kits – for students learning monitor circuit functionality.
💬 Why Choose This Product?
✅ Reliable and consistent performance
✅ Easy to install with clear pin configuration
✅ Compatible with multiple monitor models
✅ Designed for long operational life
✅ Tested for safety and quality assurance
