SUNWA KS-268 High Quality Analog Multimeter – Long Lasting and Reliable

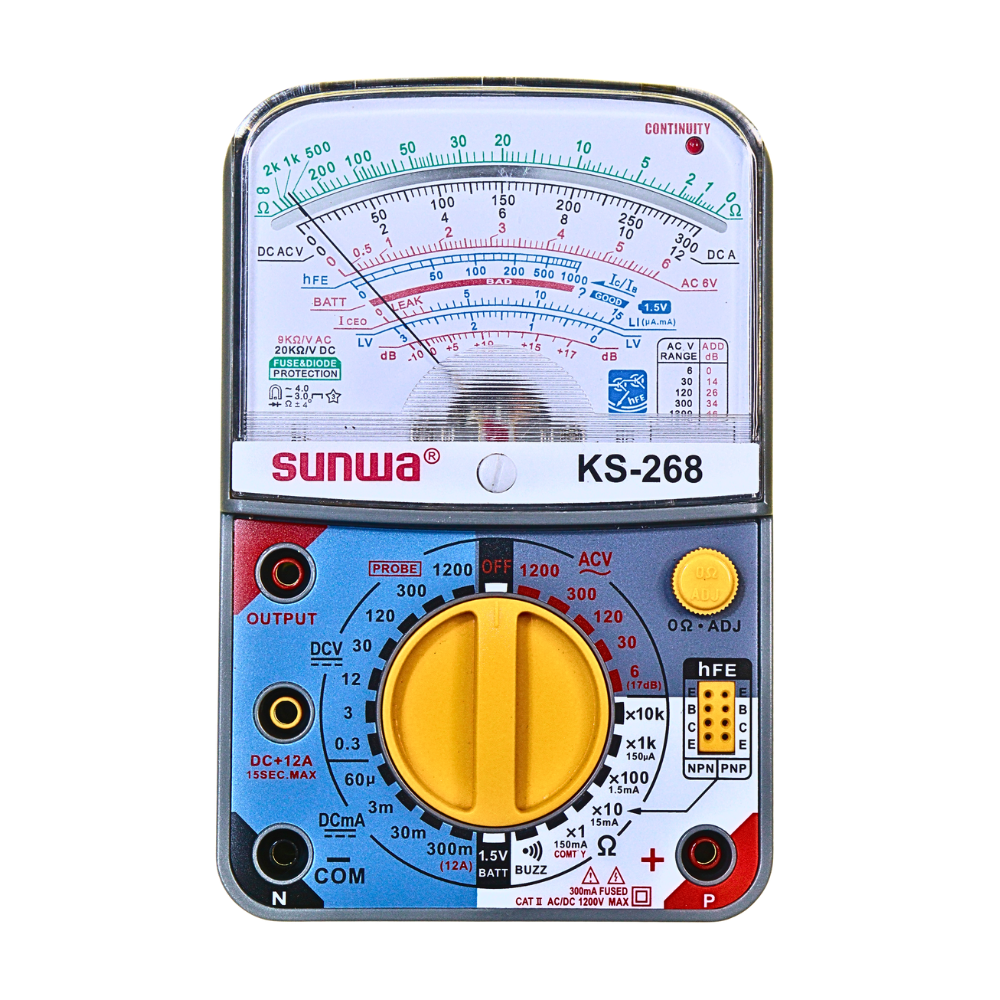

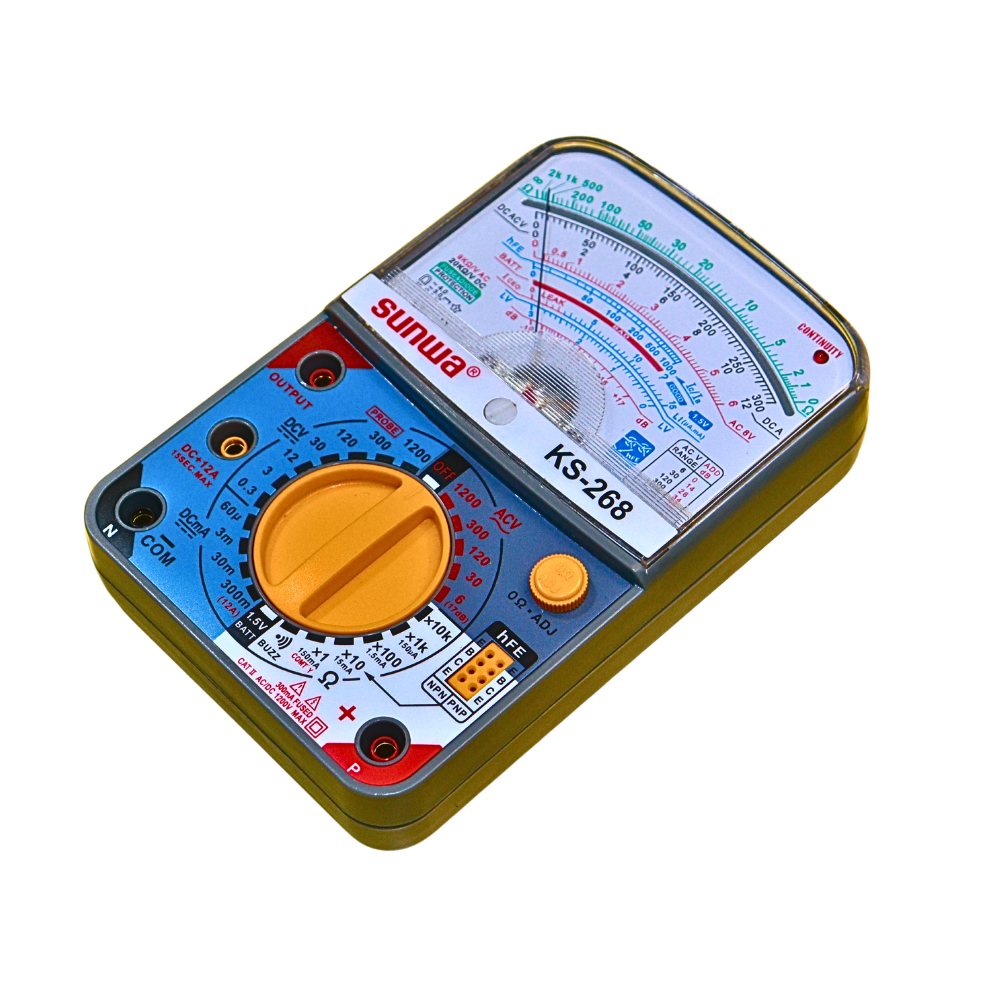

The SUNWA KS-268 Analog Multimeter is a professional-grade needle-type testing meter designed for technicians, electricians, electronics repair experts, and students.

This model supports AC/DC voltage up to 1200V, DC current measurement, resistance ranges up to ×10K, transistor hFE testing (NPN/PNP), battery testing, and continuity buzzer — making it a complete workshop tool.

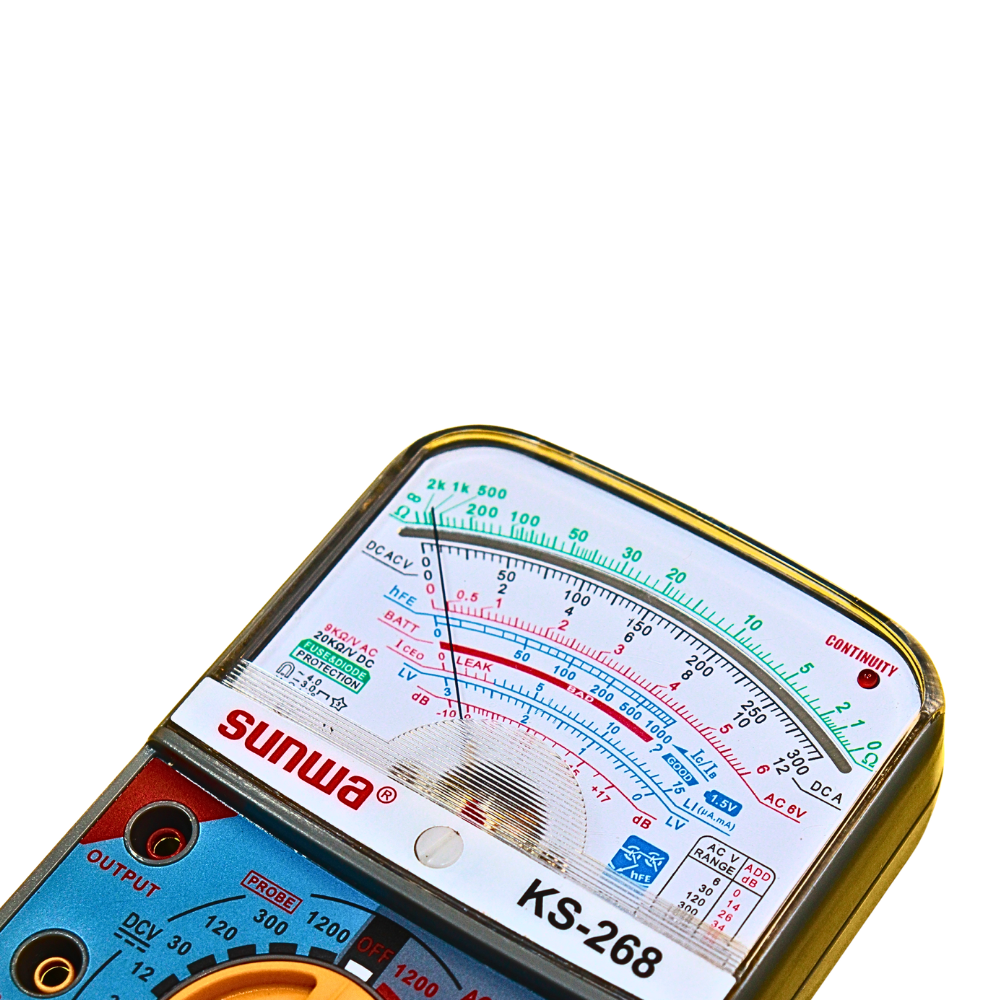

Its mirror-scale display ensures accurate reading by minimizing parallax error.

🔍 Key Features

⚡ 1️⃣ AC & DC Voltage Measurement (Up to 1200V)

✔ DCV Ranges:

• 0.3V
• 3V
• 12V
• 30V
• 120V
• 300V
• 1200V

✔ ACV Ranges:

• 6V
• 30V
• 120V
• 300V
• 1200V

👉 Suitable for household wiring, inverter checking, SMPS testing, and power line measurement.

🔋 2️⃣ DC Current Measurement (Up to 300mA)

✔ DCA Ranges:

• 60µA
• 3mA
• 30mA
• 300mA (12A marked section)

✔ 300mA FUSED Protection for safety

👉 Ideal for PCB testing, LED driver troubleshooting, and circuit diagnostics.

🔎 3️⃣ Resistance (Ohm) Ranges

✔ Ω ×10
✔ Ω ×100
✔ Ω ×1K
✔ Ω ×10K

Includes:

• Ω ADJ calibration knob
• Continuity buzzer (BUZZ)

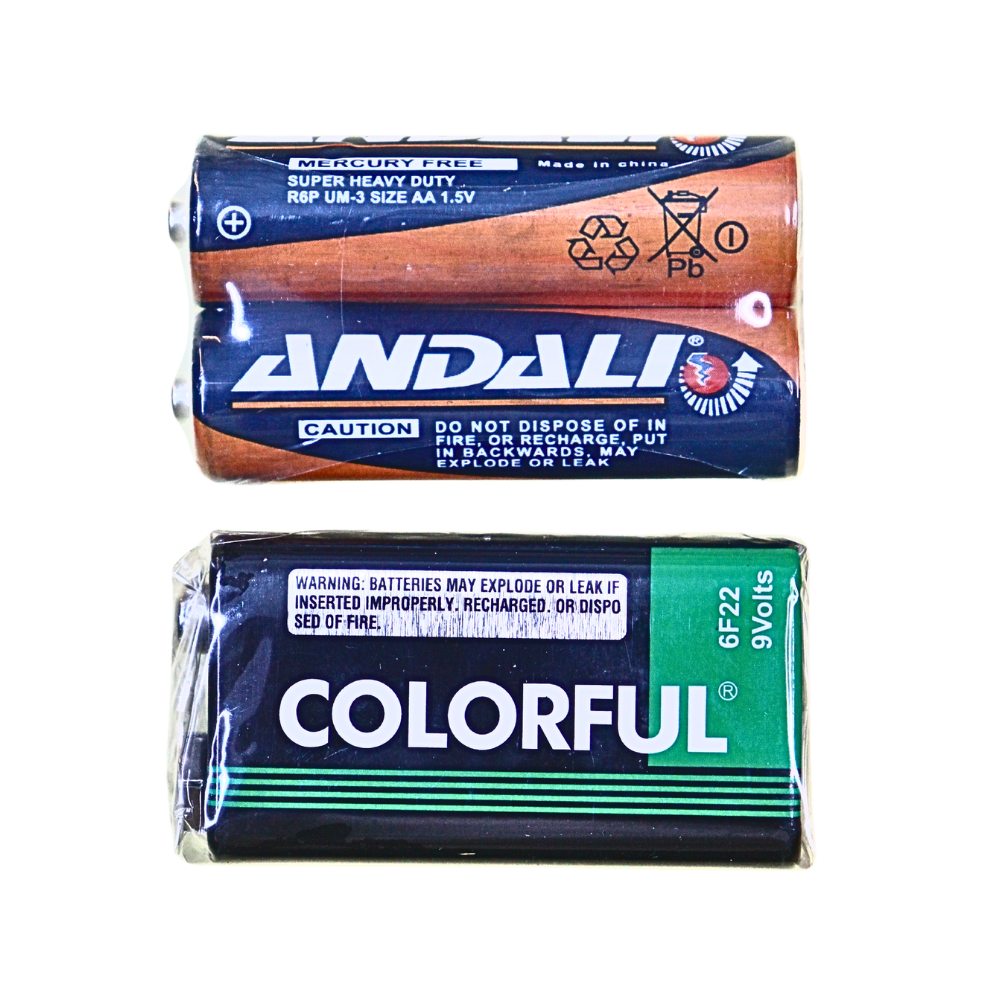

• 1.5V Battery test function

👉 Perfect for resistor checking, short detection, and wire continuity testing.

🔬 4️⃣ Transistor Testing (hFE Function)

✔ Dedicated hFE socket
✔ Supports NPN & PNP transistors
✔ Marked E-B-C pin configuration

👉 Useful for electronics repair technicians and training institutes.

🔔 5️⃣ Continuity & Output Feature

✔ Built-in BUZZ continuity test
✔ OUTPUT jack
✔ DC +12A (15 sec max) marking

🛡 Safety & Protection

✔ 300mA Fused protection
✔ CAT II AC/DC 1200V MAX

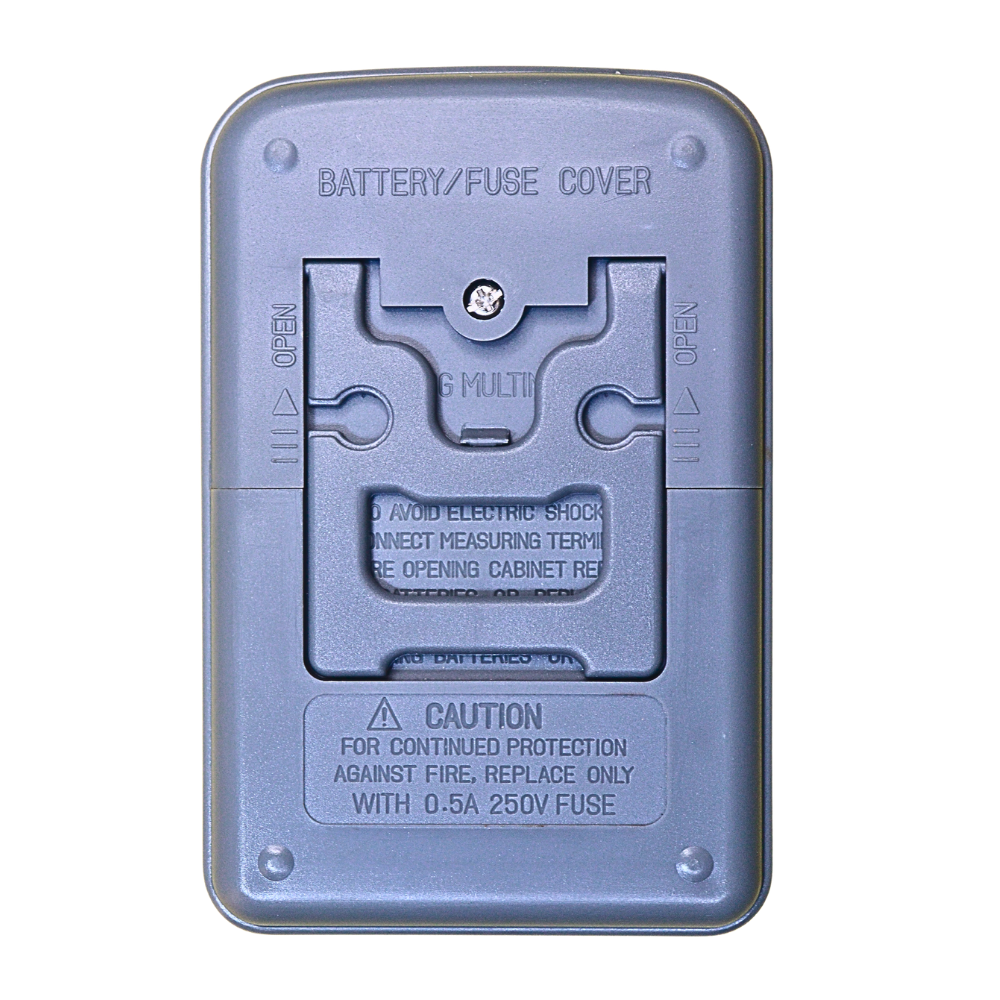

✔ Fuse & Diode Protection
✔ Strong ABS body
