🧲 2 in 1 Battery Voltage and Capacity Monitoring Meter 🔋📊
Monitor your battery’s voltage and capacity in real-time with this compact and powerful 2-in-1 meter. Perfect for hobbyists, technicians, DIYers, and professionals who need accurate battery health tracking.
✅ Product Description (Point-to-Point)
🔌 Dual Functionality:
-
Monitor voltage (V) and remaining battery capacity (%) at the same time.

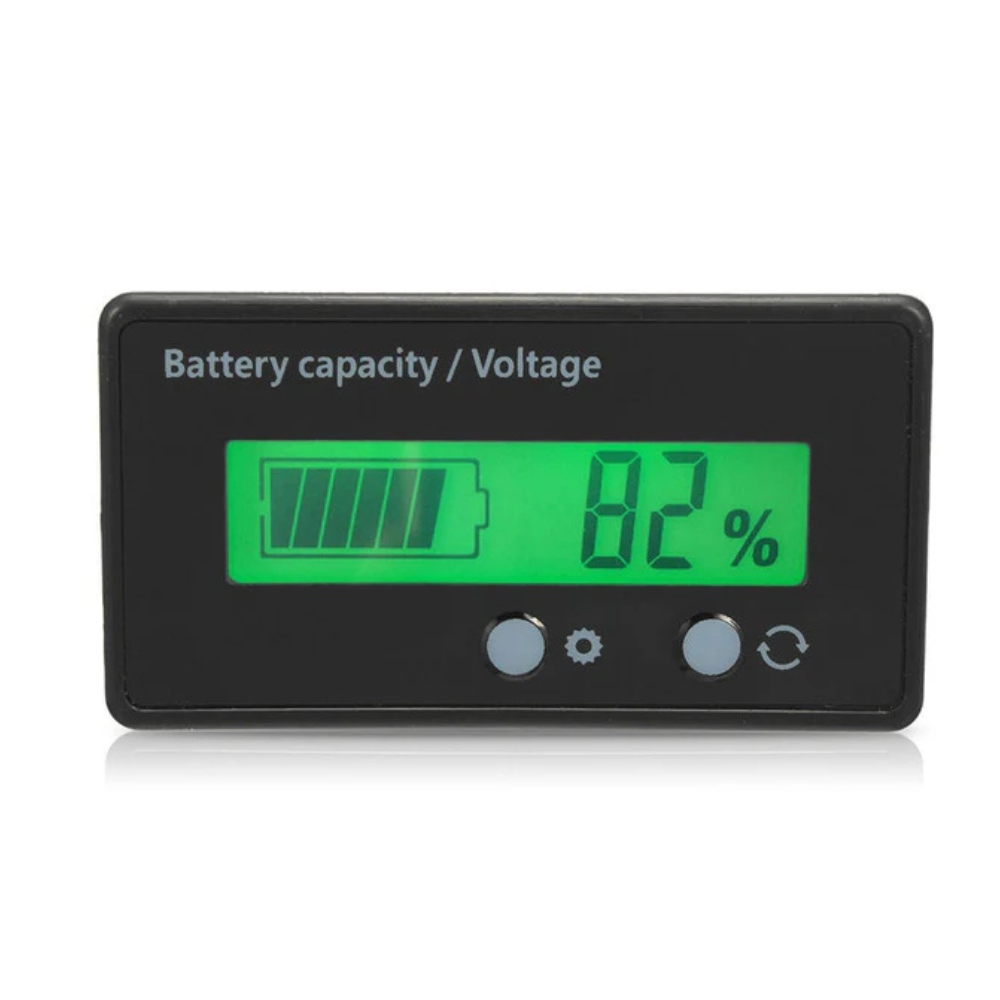

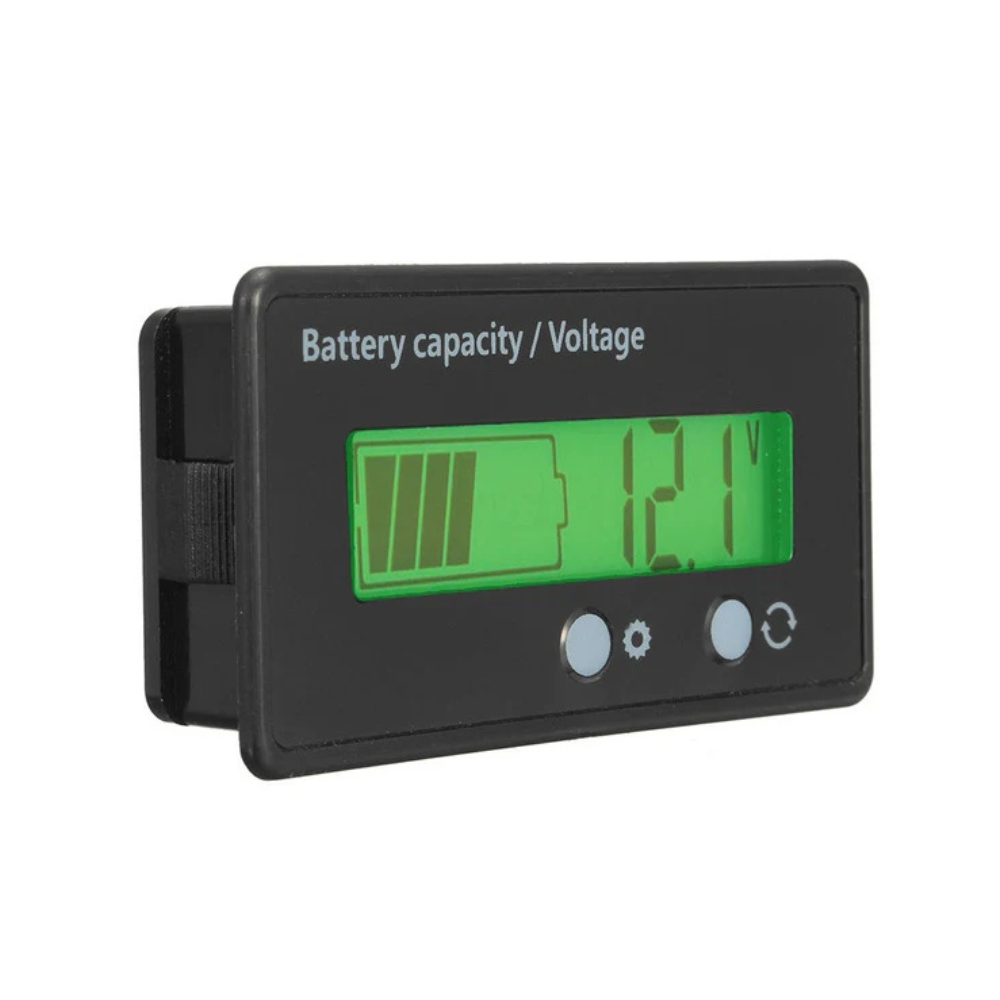

🧠 Intelligent Display:
-
Real-time LCD screen shows battery status clearly and accurately.
-
Displays voltage, percentage, and battery icon for better visual understanding.
🔄 Wide Compatibility:
-
Suitable for 3.7V to 100V batteries.
-
Works with Li-ion, LiFePO4, LTO, and Lead-acid battery types.
⚙️ Customizable Settings:
-
Supports custom battery type settings for accurate capacity readings.
-
Easy setup using the built-in button interface.
🔋 Battery Health Awareness:
-
Helps you know when to charge or replace a battery.
-
Prevents deep discharge and overcharge damage.
🔧 Compact & Easy to Install:
-
Small and lightweight – fits easily in battery boxes, DIY projects, or portable devices.
-

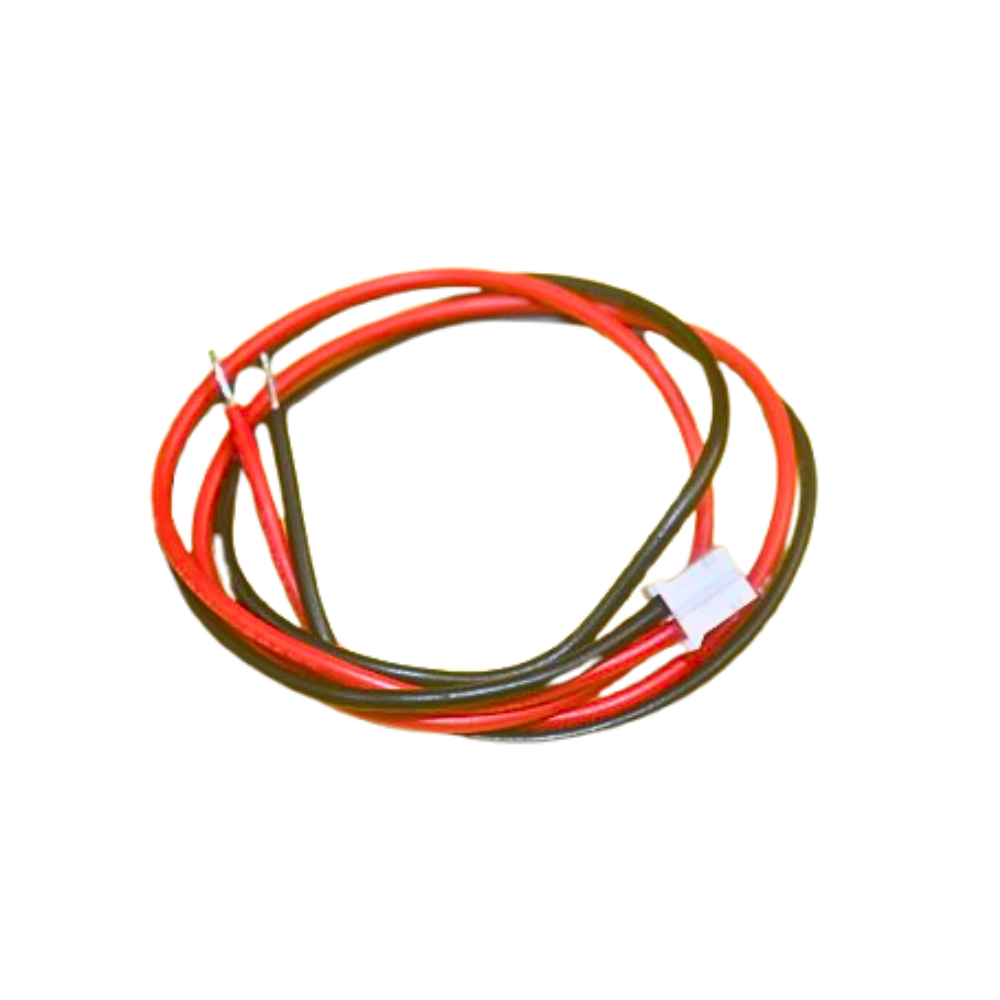

Simple 2-wire connection.
📐 Technical Specifications Table
Parameter | Details |
---|---|
Display Type | LCD (Blue or Green Backlight) |
Voltage Range | DC 3.7V to 100V |
Battery Types Supported | Li-ion, LiFePO4, LTO, Lead-acid |
Capacity Display Range | 0% to 100% |
Wiring | 2-Wire (Positive & Negative) |
Installation | Panel Mount or Surface Mount |
Backlight | Yes (Optional Auto ON/OFF) |
Size | Approx. 48mm x 29mm x 22mm |
Weight | Around 25g |
🎯 Applications
-
🔌 Battery Packs for DIY Projects (e.g., E-bikes, solar systems, robots)
-
🚴♂️ Electric Bikes and Scooters
-
⚡ Solar Power Storage Systems
-
🧰 Electronics Testing & Repair
-
🔋 Portable Power Banks & Power Walls
-
🚗 Automotive or Off-grid Battery Monitoring
