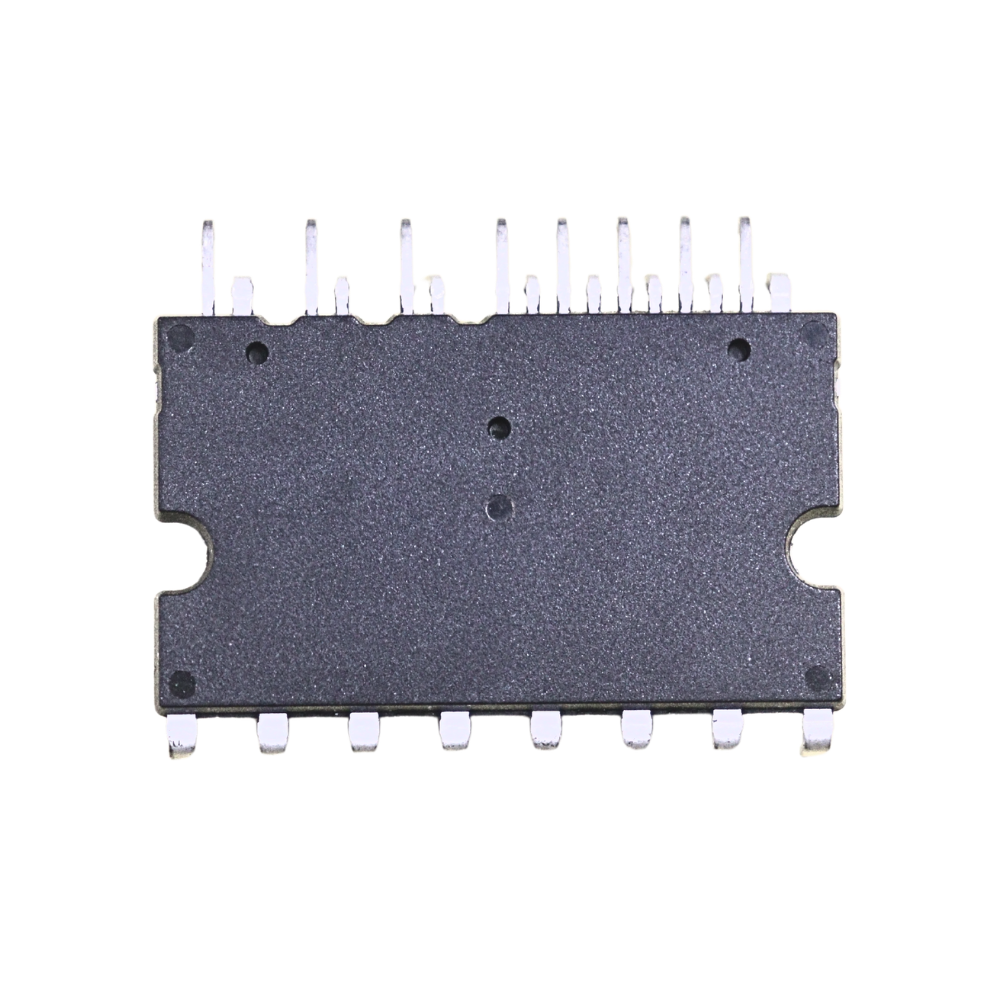

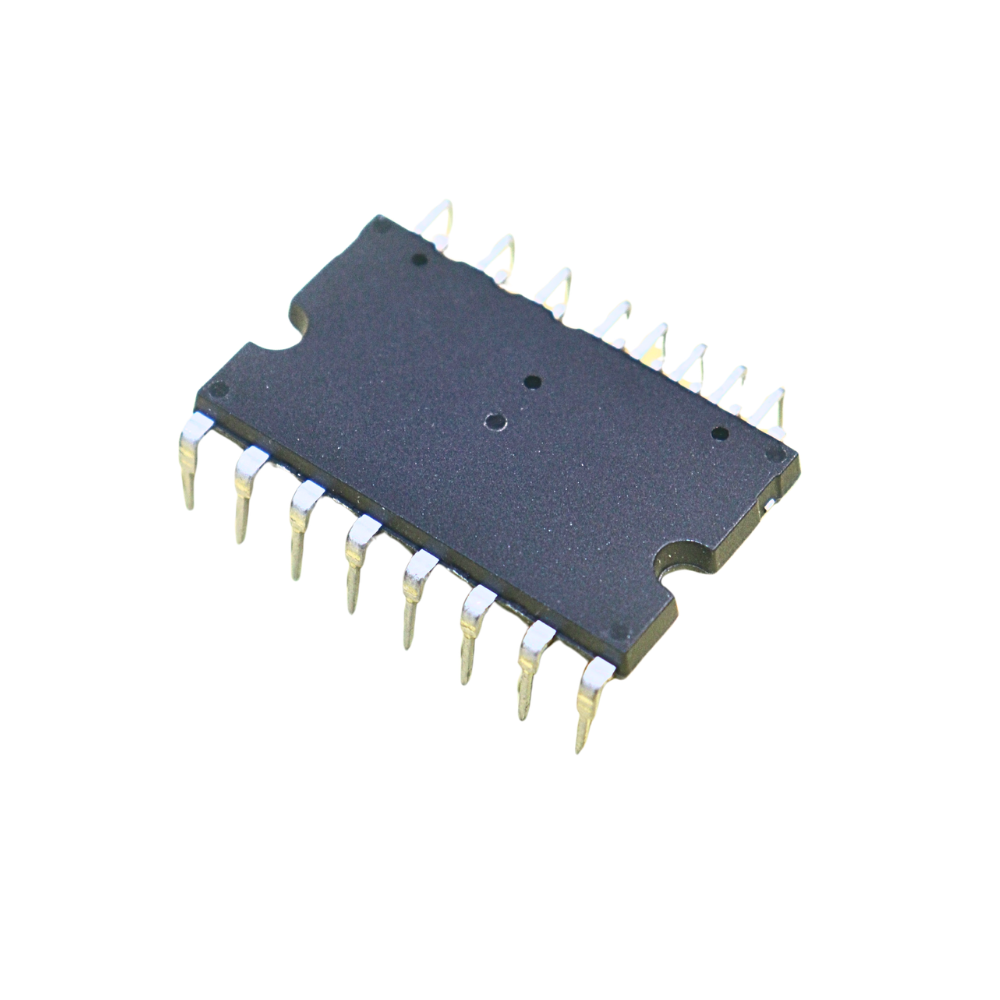

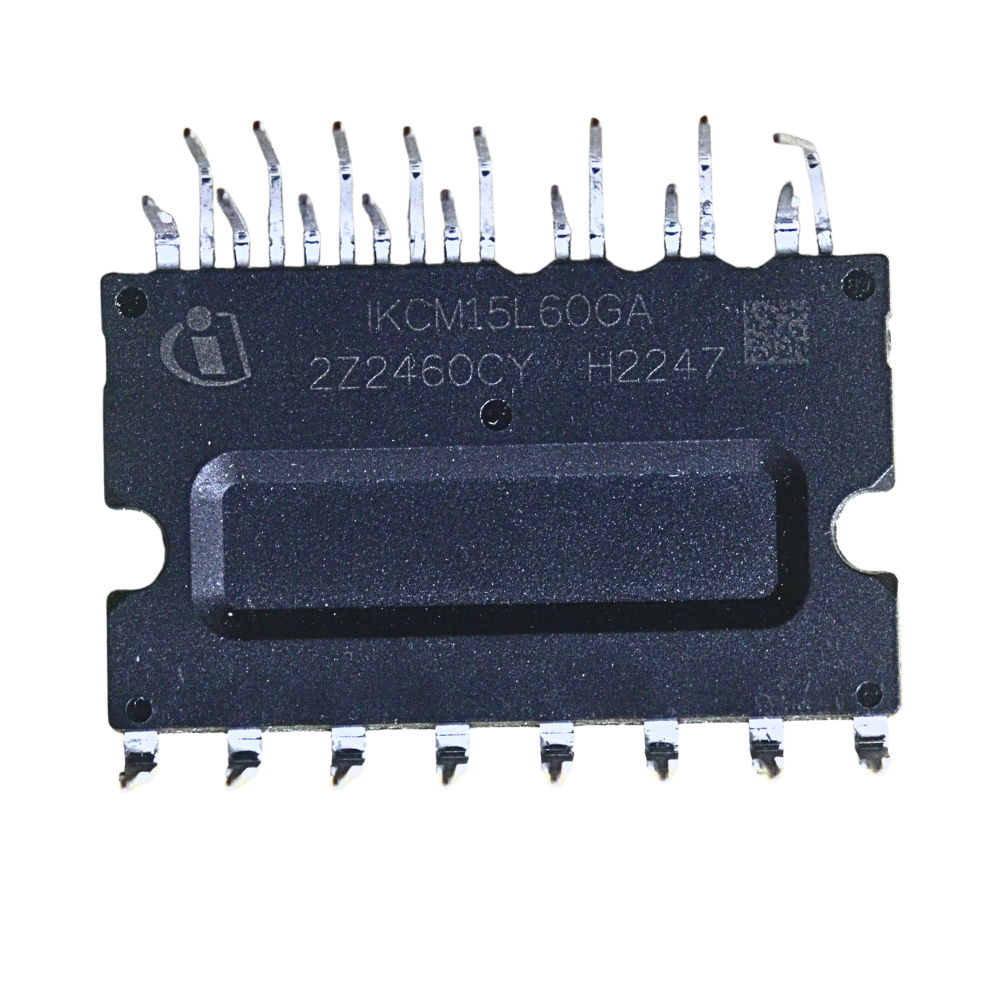

IKCM15L60GA Intelligent Power Module (IPM) 600V 15A IGBT IPM for Motor Drive & Inverter Applications

Original price was: ₹1,499.00.Current price is: ₹1,049.00.

IKCM15L60GA
IPM Module
Intelligent Power Module
IGBT Module
Motor Driver IC
600V IPM
15A Power Module
Inverter Module
BLDC Driver
AC Motor Control
Power Electronics
Appliance Repair Parts
Electronics Spare Parts
DIP IPM

In stock

SKU: DELS986 Category: IPM Tags: 15A Power Module, 600V IPM, AC Motor Control, Appliance Repair Parts, BLDC driver, DIP IPM, electronics spare parts, IGBT Module, IKCM15L60GA, Intelligent Power Module, Inverter Module, IPM Module, motor driver IC, Power Electronics

Description

IKCM15L60GA Intelligent Power Module (IPM) 600V 15A – High Efficiency Motor Drive IC

The IKCM15L60GA Intelligent Power Module (IPM) is a highly integrated power device designed for motor drive applications, especially in appliances like air conditioners, washing machines, and industrial inverters.

It combines IGBTs, gate drivers, and protection circuits into a single compact module, making it easy to use, reliable, and efficient.

⚙️ Key Features

✅ 600V Voltage Rating – Suitable for high-voltage applications
✅ 15A Current Capacity – Ideal for medium power motor drives
✅ Built-in IGBT Technology – High efficiency & low switching loss
✅ Integrated Gate Driver Circuit – Simplifies design
✅ Short Circuit Protection – Enhanced safety
✅ Under Voltage Lockout (UVLO) – Prevents unstable operation
✅ Over Temperature Protection – Increases lifespan
✅ Compact DIP Module – Easy PCB mounting

📊 Technical Specifications

Parameter	Value
Model	IKCM15L60GA
Voltage Rating	600V
Current Rating	15A
Package Type	DIP IPM Module
Technology	IGBT Based
Application	Motor Drive / Inverter
Protection Features	SCP, UVLO, OTP
Mounting Type	Through Hole

🧠 How It Works (Simple Explanation)

👉 This IPM acts like a complete motor driver circuit in one IC/module

Converts DC to AC for motor control
Uses IGBT switches for efficient power handling
Internal driver ensures proper switching timing
Built-in protections save your circuit from damage

💡 So instead of designing a complex circuit, you can directly use this module!

🔧 Applications

✔️ Air Conditioner Outdoor/Indoor Units
✔️ Washing Machines
✔️ Refrigerator Compressors
✔️ BLDC Motor Drivers
✔️ Industrial Motor Control Systems
✔️ Inverter Circuits
✔️ EV Auxiliary Systems

💡 Why Choose This IPM?

⭐ Reduces circuit complexity
⭐ Saves development time
⭐ High reliability & safety
⭐ Compact & professional design
⭐ Perfect for technicians and engineers
