Description

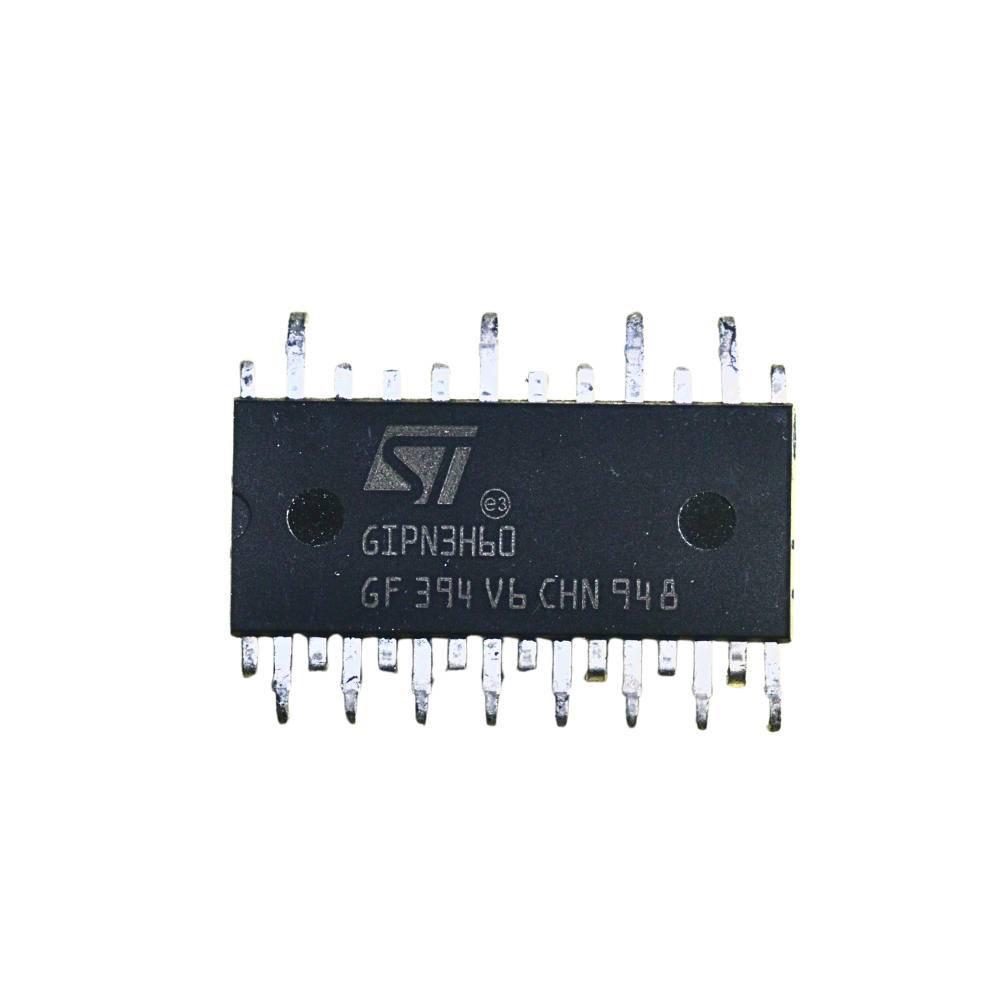

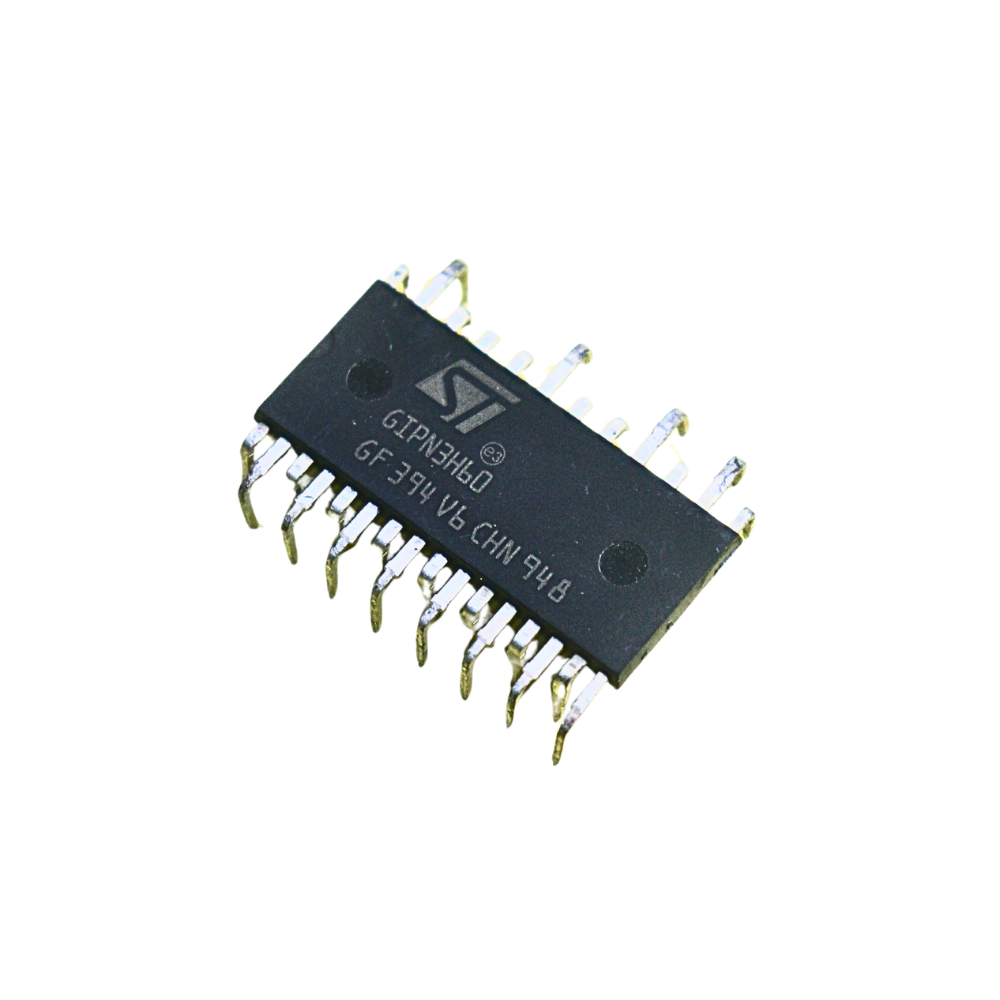

GIPN3H60 3A 600V Intelligent Power Module (IPM)
The GIPN3H60 Intelligent Power Module (IPM) is a high-performance power device designed for applications like inverters, motor drivers, and SMPS systems. This module integrates IGBTs with built-in control and protection circuits, making it highly efficient and safe for industrial and repair use.
With a 600V voltage rating and 3A current capacity, it ensures stable operation in demanding conditions. The compact multi-pin SIP package allows easy mounting, making it ideal for technicians, engineers, and electronics repair professionals.
Whether you are repairing an inverter board or building a motor control circuit, this module delivers reliability, safety, and efficiency in one package.
✨ Key Features & Highlights
- ⚡ High Voltage Capacity – Supports up to 600V, ideal for power applications
- 🔌 3A Current Rating – Stable and efficient performance for medium-load circuits
- 🧠 Intelligent Power Module (IPM) – Built-in protection & control for safe operation
- 🔥 Thermal Efficient Design – Better heat dissipation for long life
- 🛡️ Protection Features – Overcurrent, undervoltage & short-circuit protection
- ⚙️ Compact SIP Package – Easy to install and replace in PCB circuits
- 🏭 Trusted Quality (ST Chip) – Reliable performance for professional use
📊 Specifications Table
| Parameter | Value |
|---|---|
| Model Number | GIPN3H60 |
| Module Type | Intelligent Power Module (IPM) |
| Voltage Rating | 600V |
| Current Rating | 3A |
| Technology | IGBT Based |
| Package Type | SIP / Multi-pin Module |
| Mounting Type | Through Hole |
| Brand/Marking | ST (STMicroelectronics Type) |
| Protection Features | Overcurrent, Short Circuit, UV |
| Application Type | Inverter, Motor Drive, SMPS |
🔧 Applications
- 🔌 Home Inverter Repair & Manufacturing
- ⚙️ AC / BLDC Motor Drive Circuits
- 🔋 SMPS Power Supply Systems
- 🏭 Industrial Automation Equipment
- 🧰 Electronics Repairing & Service Work
- 💡 Washing Machine / Air Conditioner Control Boards
🎯 Why Choose This Product?
- ✅ High reliability for long-term use
- ✅ Perfect replacement for damaged IPM modules
- ✅ Ideal for technicians and repair shops
- ✅ Compact & easy to install design
📦 Package Includes
- ✔️ 1 x GIPN3H60 Intelligent Power Module
