22″-24″ Universal LED TV Combo Motherboard KK.RU10.672B with Remote, IR Sensor & Side Frame | Multi Resolution LCD/LED TV Universal Board

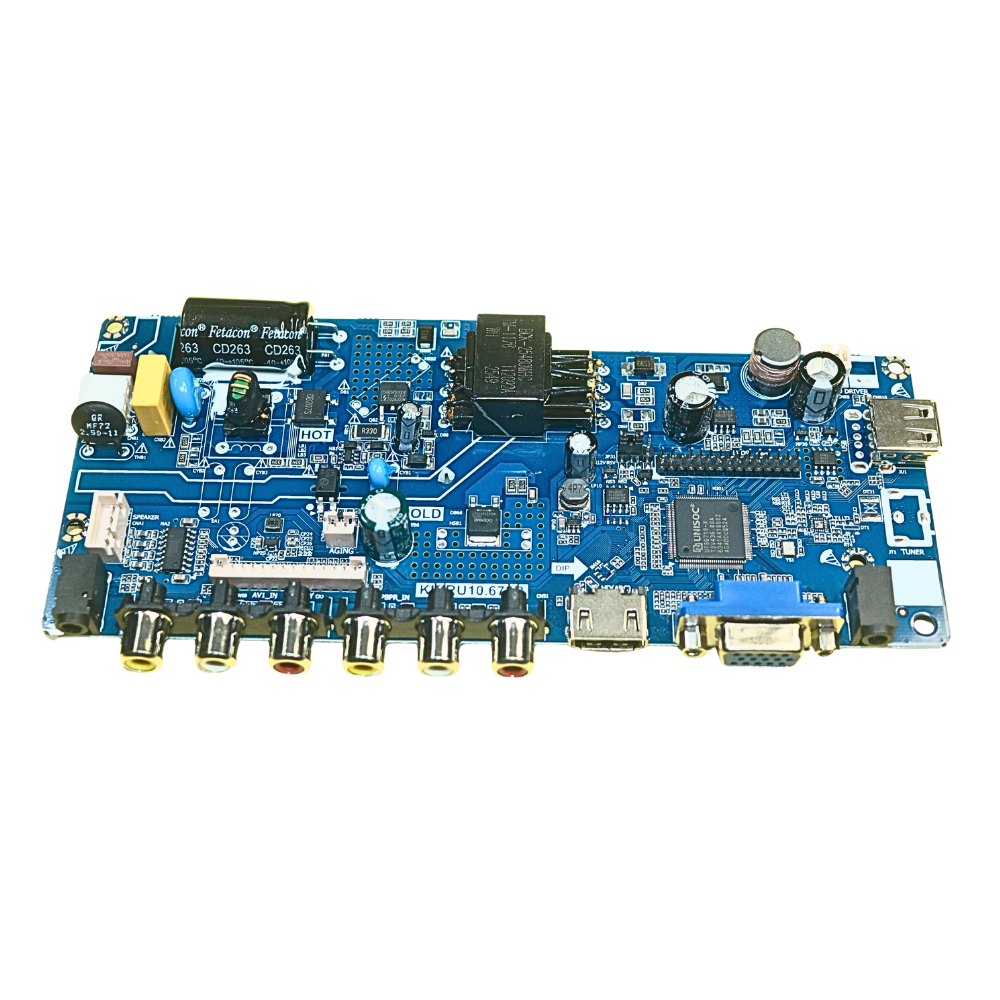

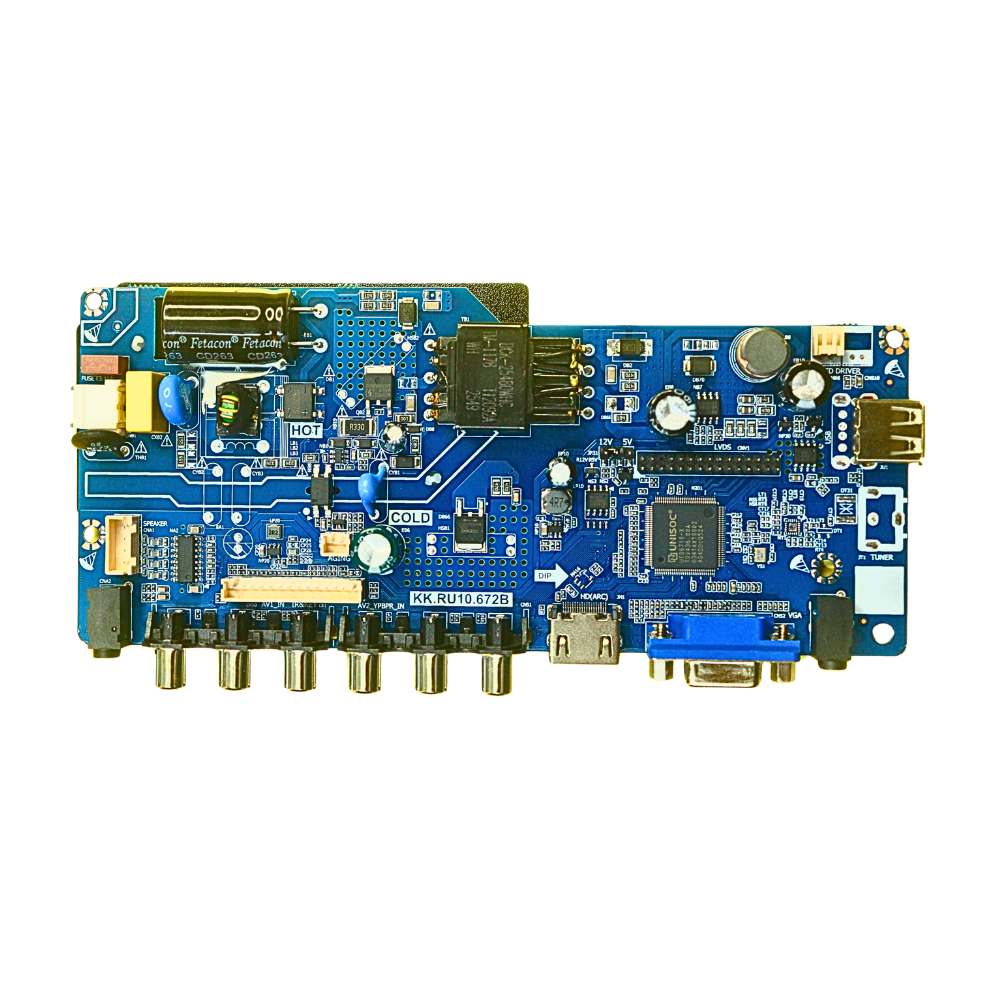

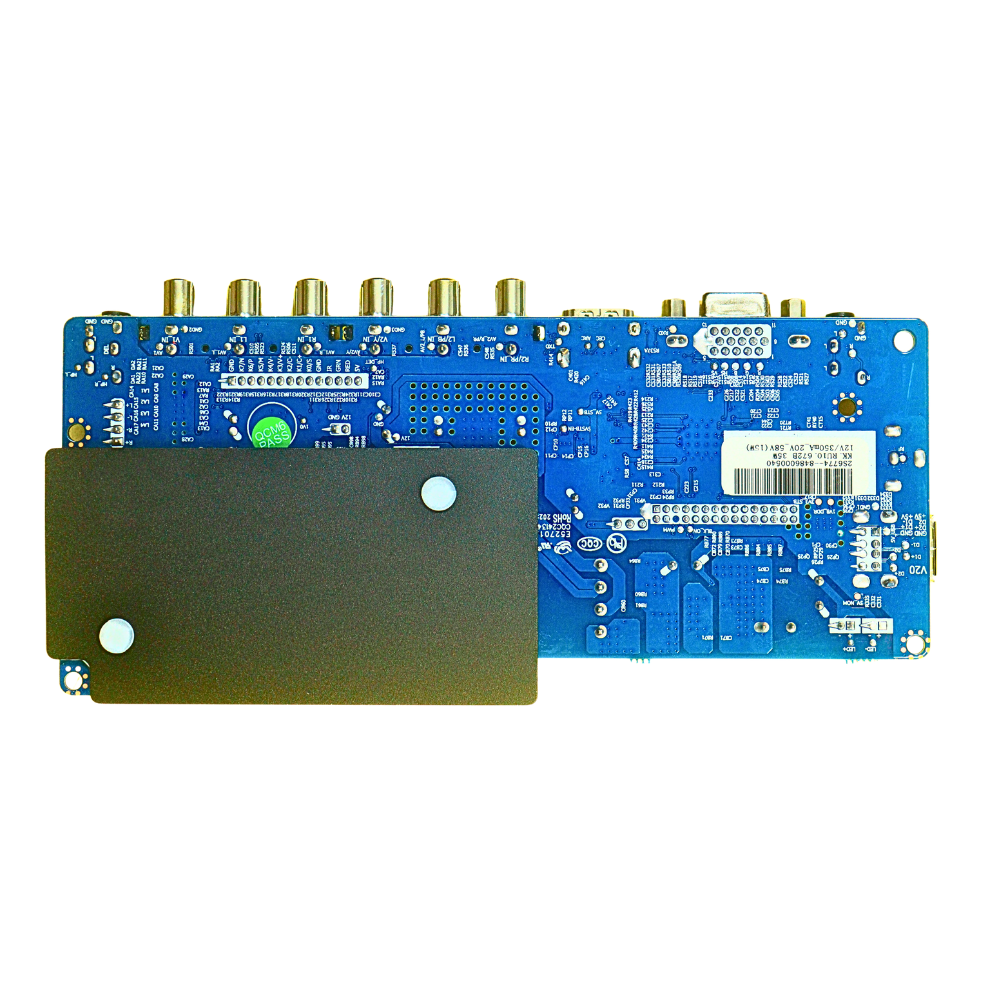

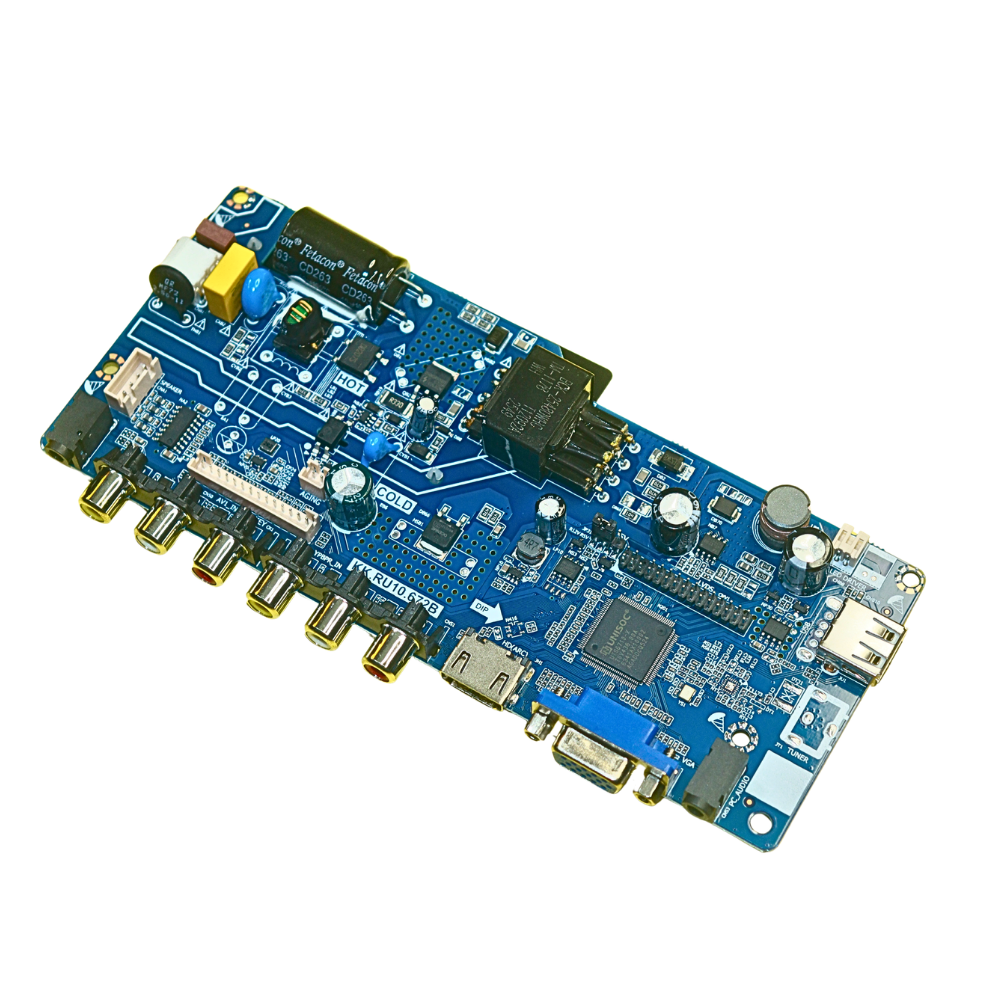

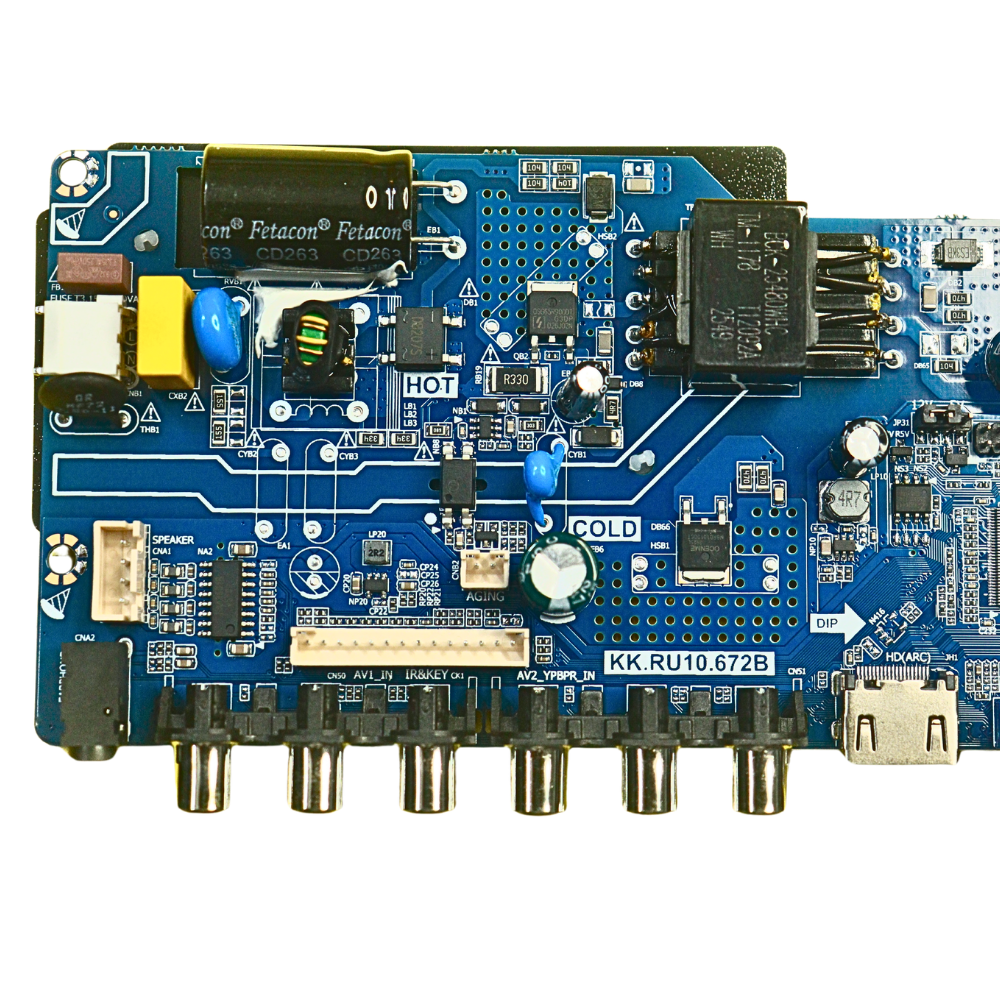

Upgrade or repair your LCD/LED TV easily with the KK.RU10.672B Universal LED TV Combo Motherboard. This high-quality universal combo board is specially designed for 22-inch to 24-inch LED TVs and supports multiple screen resolutions. It comes with a built-in power supply section, making installation simple and reducing extra wiring requirements.
This motherboard is perfect for technicians, repair shops, and DIY users who want a reliable and long-lasting TV motherboard solution. The board supports multiple panel resolutions and includes useful accessories like IR sensor board, remote control, side button frame, and connecting wire for complete installation convenience.
Its compact design, stable performance, and multi-brand logo support make it an excellent choice for replacing damaged LED TV motherboards.
✨ Main Features
✅ Supports 22″ to 24″ LCD/LED TV Panels
✅ Compatible with Multiple Resolutions
✅ Built-in Power Supply Section
✅ HDMI, VGA, AV & USB Input Support
✅ Smooth Audio & Video Performance
✅ Easy Installation & Setup
✅ Stable and Long-Lasting Performance
✅ Suitable for LED TV Repairing & Manufacturing
✅ Multi-Brand Logo Change Support
✅ Compact and Technician-Friendly Design

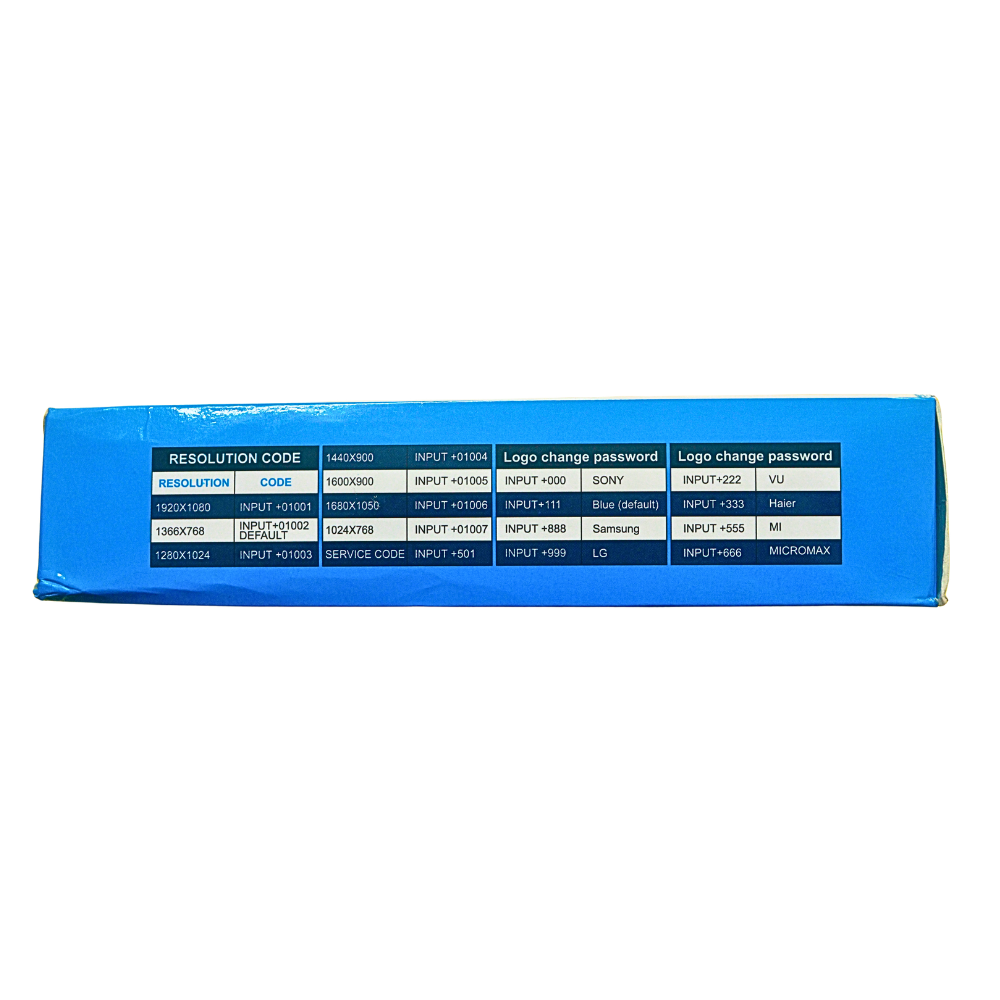

📺 Supported Resolutions
| Resolution | Code |
|---|---|
| 1920×1080 | INPUT +01001 |
| 1366×768 | INPUT +01002 (Default) |
| 1280×1024 | INPUT +01003 |
| 1440×900 | INPUT +01004 |
| 1600×900 | INPUT +01005 |
| 1680×1050 | INPUT +01006 |
| 1024×768 | INPUT +01007 |
🔐 Logo Change Password Codes
| Brand | Password |
|---|---|
| Sony | INPUT +000 |
| Blue (Default) | INPUT +111 |
| Samsung | INPUT +888 |
| LG | INPUT +999 |
| VU | INPUT +222 |
| Haier | INPUT +333 |
| MI | INPUT +555 |
| Micromax | INPUT +666 |
⚙️ Service Code:
INPUT +501
📋 Technical Specifications
| Specification | Details |
|---|---|
| Model Number | KK.RU10.672B |
| Product Type | Universal LED TV Combo Motherboard |
| TV Size Support | 22″ to 24″ |
| Display Type | LCD / LED TV |
| Resolution Support | Multiple Resolution Support |
| HDMI Port | Yes |
| VGA Port | Yes |
| USB Port | Yes |
| AV Input | Yes |
| Audio Output | Yes |
| Power Section | Built-in Combo Power Supply |
| Installation | Easy to Install |
| Usage | LED TV Repair & Replacement |
📦 Box Includes
📌 KK.RU10.672B Universal Motherboard

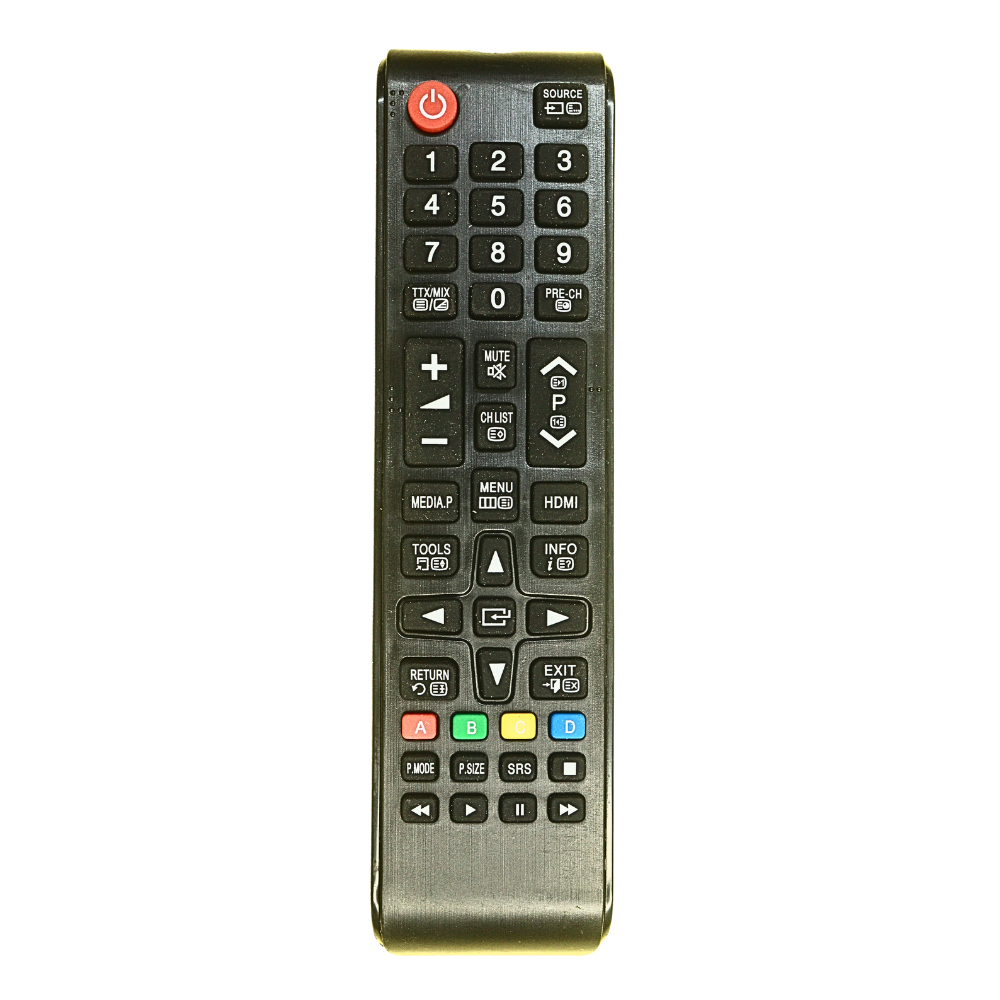

📌 Remote Control

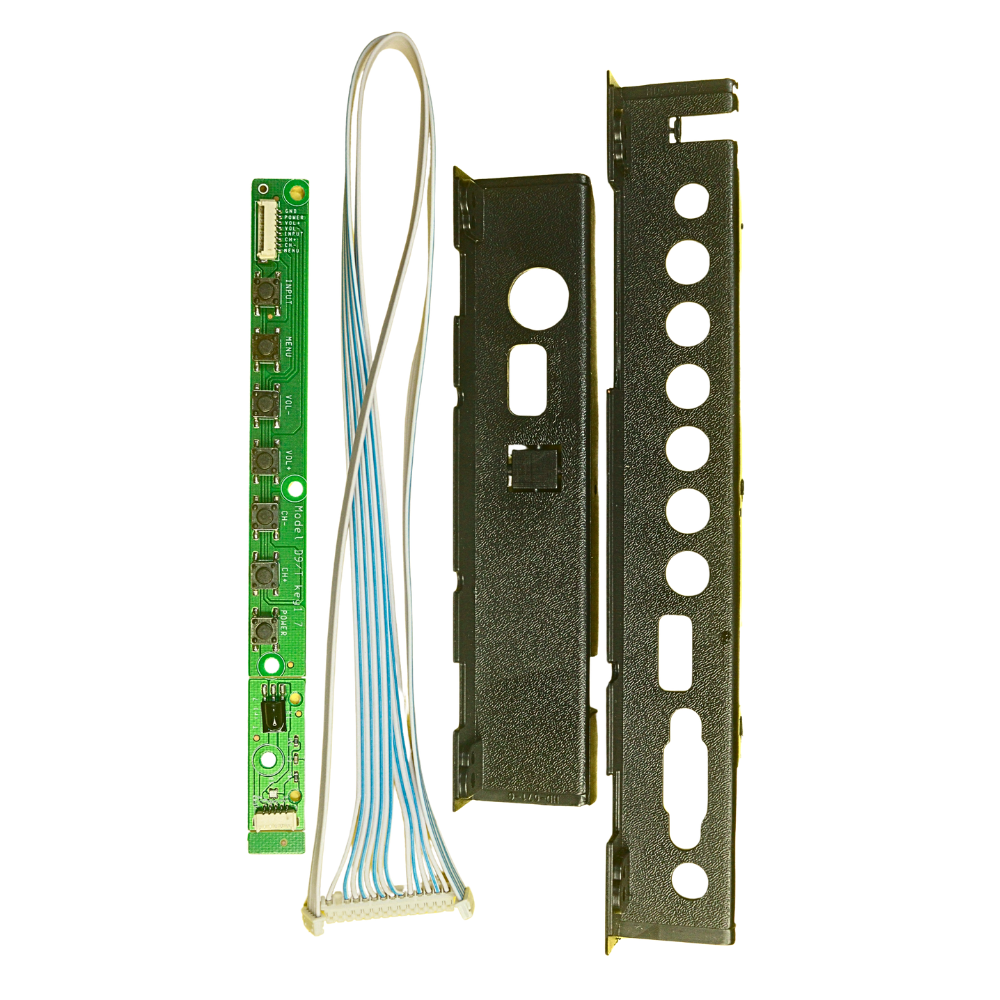

📌 IR Sensor Board
📌 IR Wire Cable
📌 Side Frame
🔌 Applications
🔹 LED TV Repairing
🔹 Universal LED TV Conversion
🔹 Replacing Damaged TV Motherboards
🔹 LCD/LED TV Manufacturing
🔹 Electronics Repair Shop Use
🔹 DIY LED TV Projects
🔹 Technician Testing & Installation
💡 Why Choose This Motherboard?
⭐ Reliable Performance
⭐ Good Picture & Audio Quality
⭐ Multi-Resolution Compatibility
⭐ Durable Components for Long Life
⭐ Easy for Technicians to Configure
⭐ Complete Accessory Kit Included
⭐ Cost-Effective Universal Solution
⚠️ Important Note
📌 Please match your panel voltage, resolution, and LVDS connection before installation.
📌 Professional technician installation is recommended for best performance.
📌 Product color/design may vary slightly depending on stock availability.
