Description

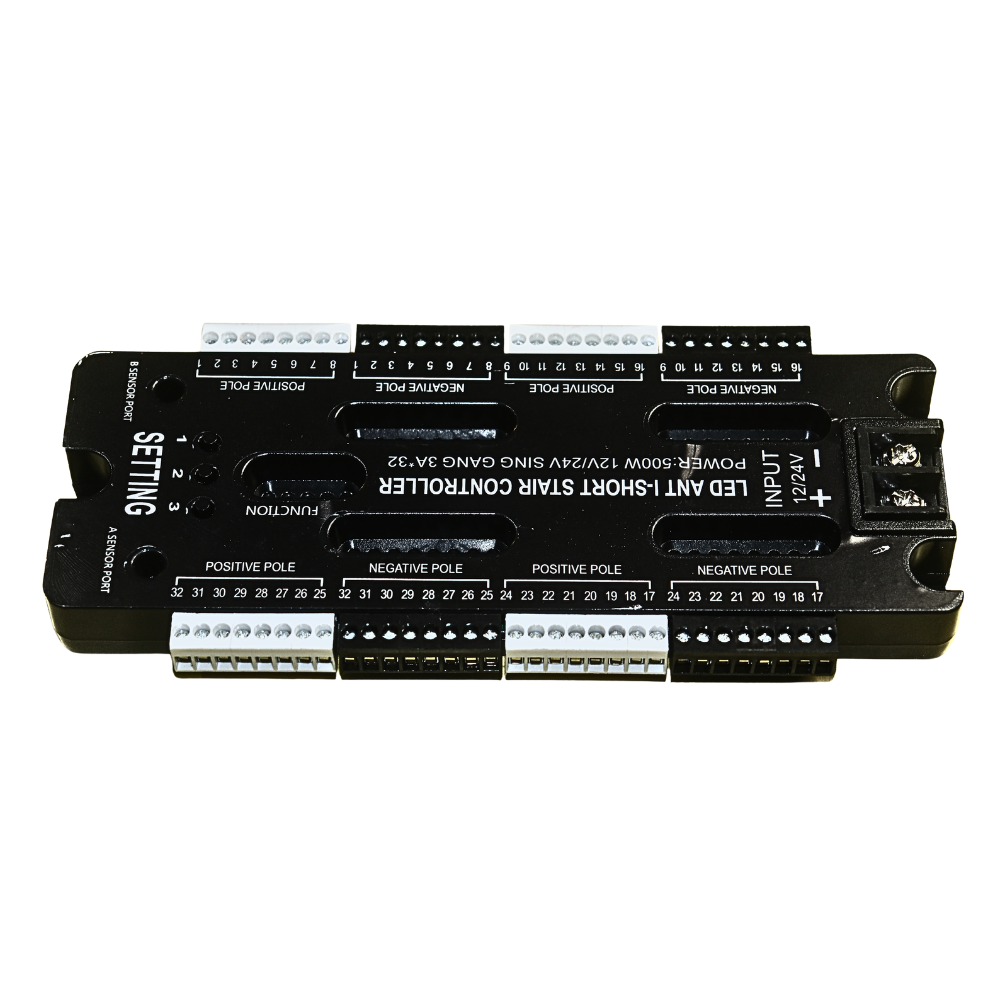

32 Channel LED Anti-Short Stair Light Controller | DC 12V / 24V | 500W Automatic Motion Sensor Staircase Lighting System

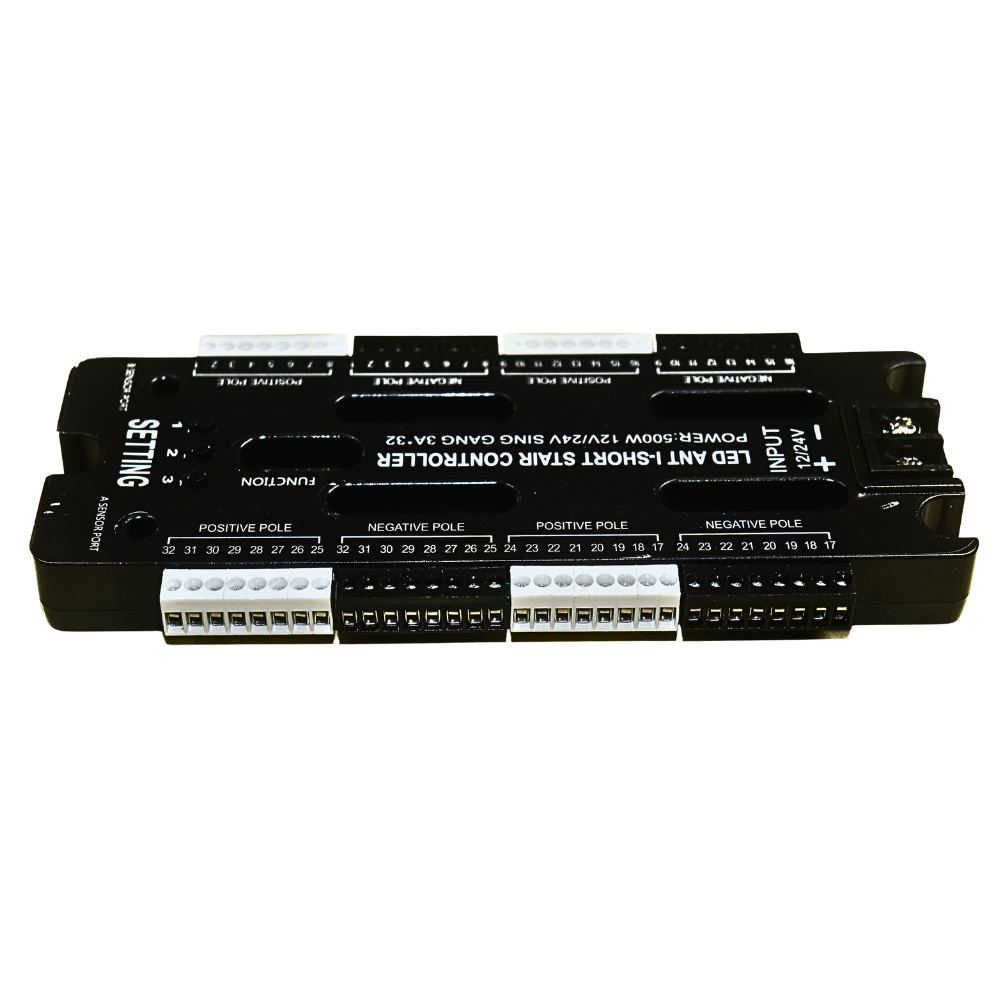

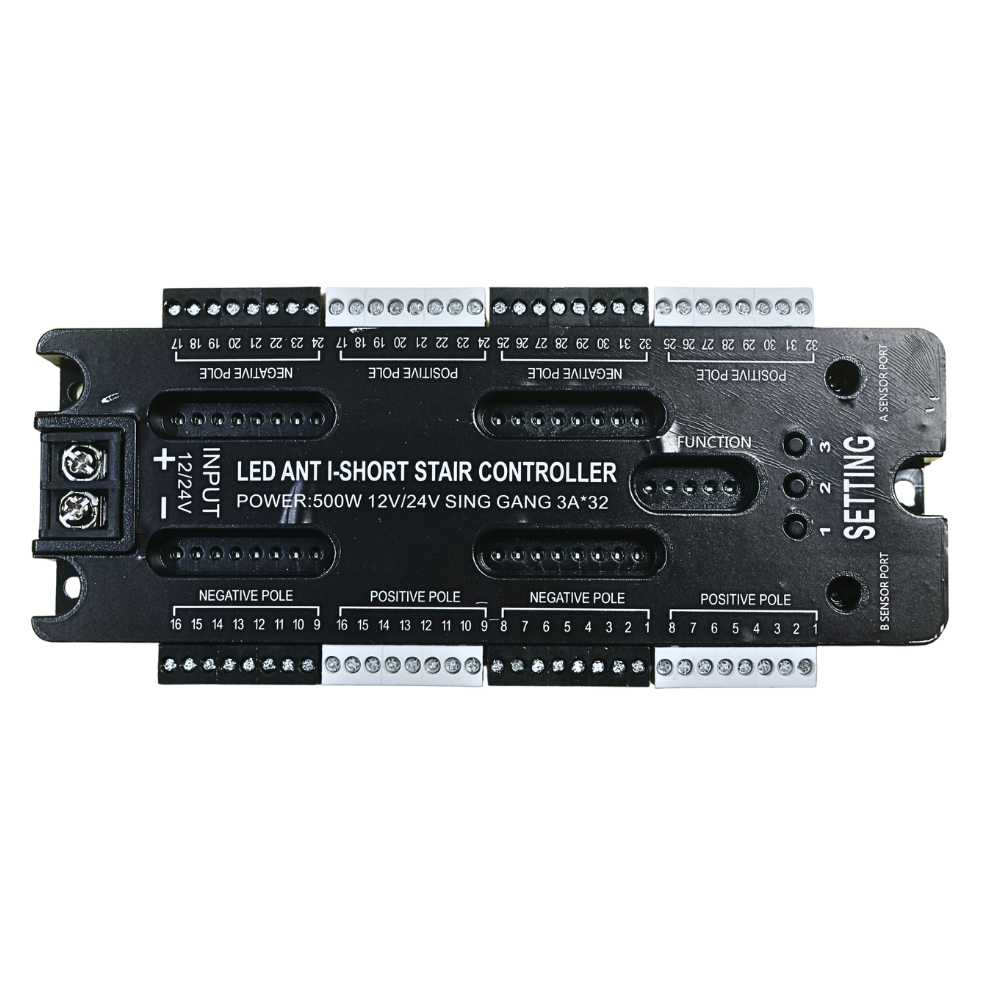

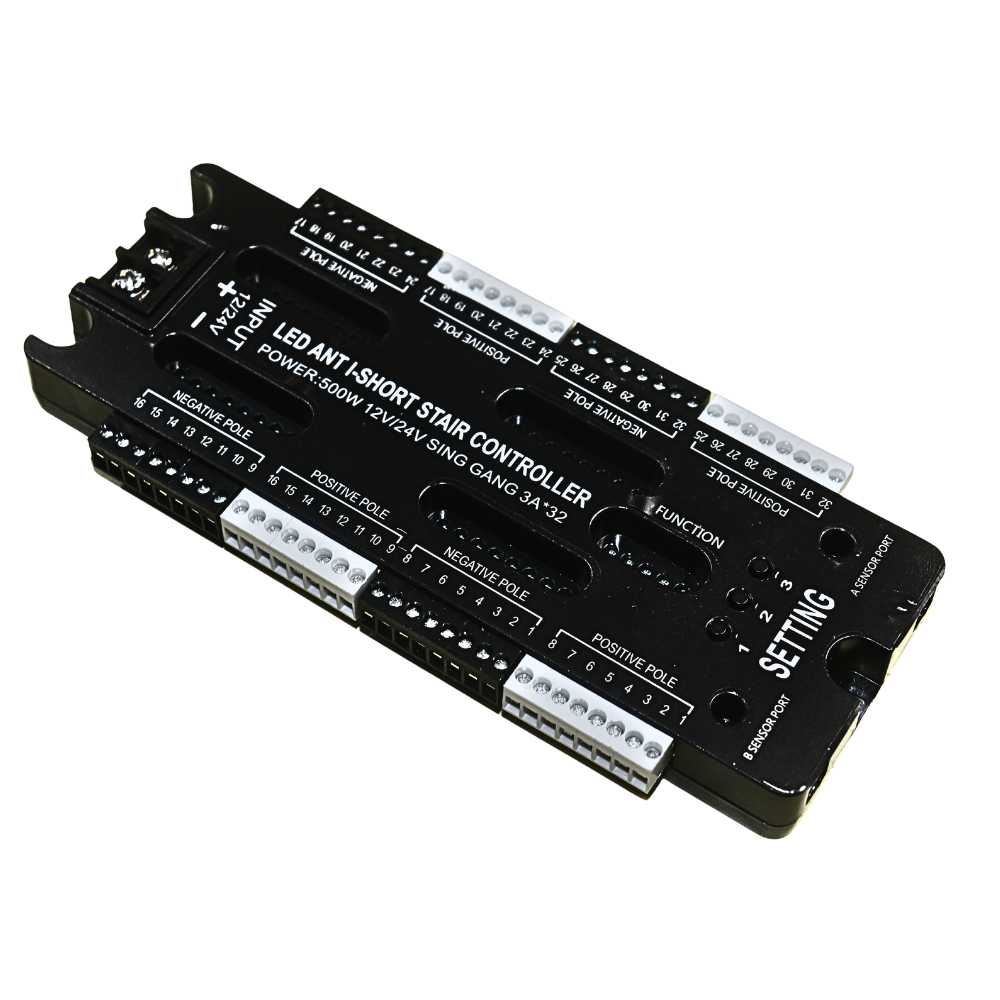

This 32 Channel LED Anti-Short Stair Controller is a professional automatic staircase lighting solution, specially designed for step-by-step LED control using motion sensors.
The controller supports DC 12V and DC 24V input, delivers up to 500W total power, and controls 32 individual LED steps, each rated at 3A per channel.

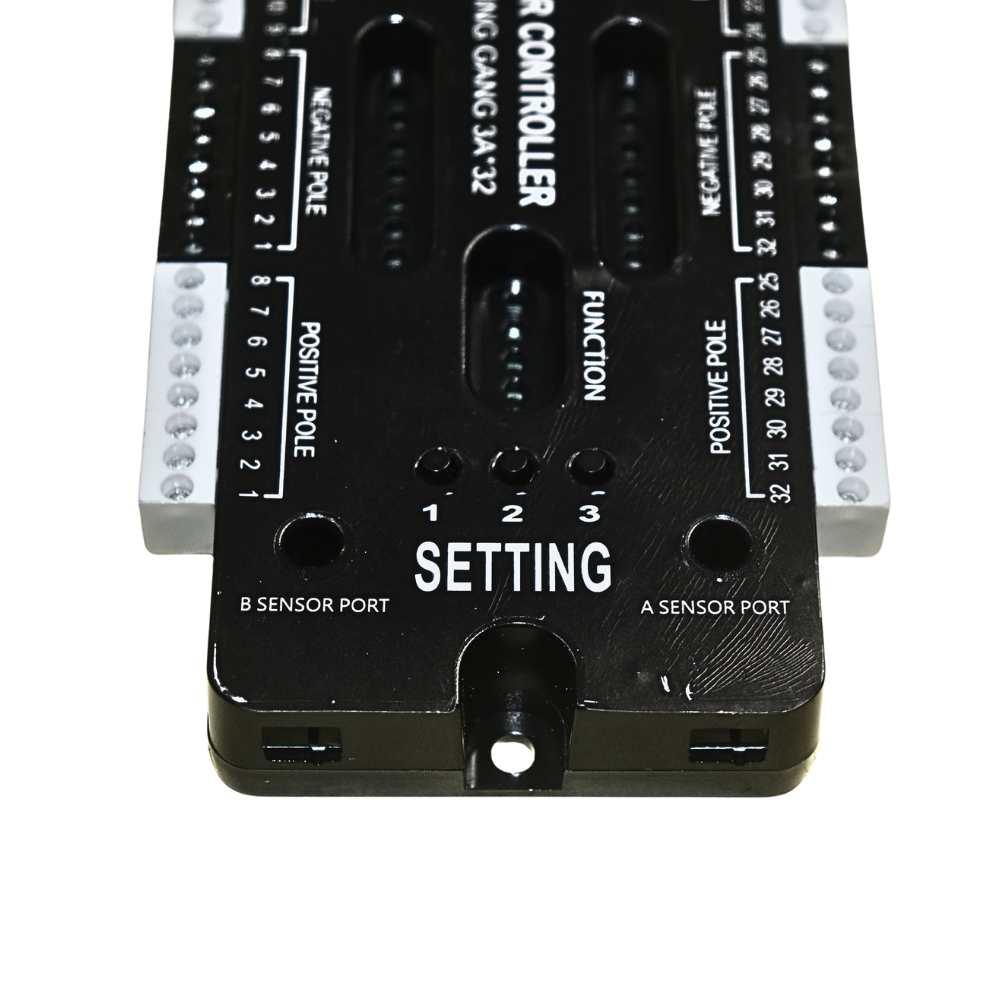

With clearly marked Positive Pole (+) and Negative Pole (–) terminals, along with dedicated sensor ports, this controller ensures safe wiring, smooth lighting effects, and stable long-term performance.
Its anti-short protection design makes it reliable for continuous use in homes and commercial projects.

⭐ Key Features & Highlights

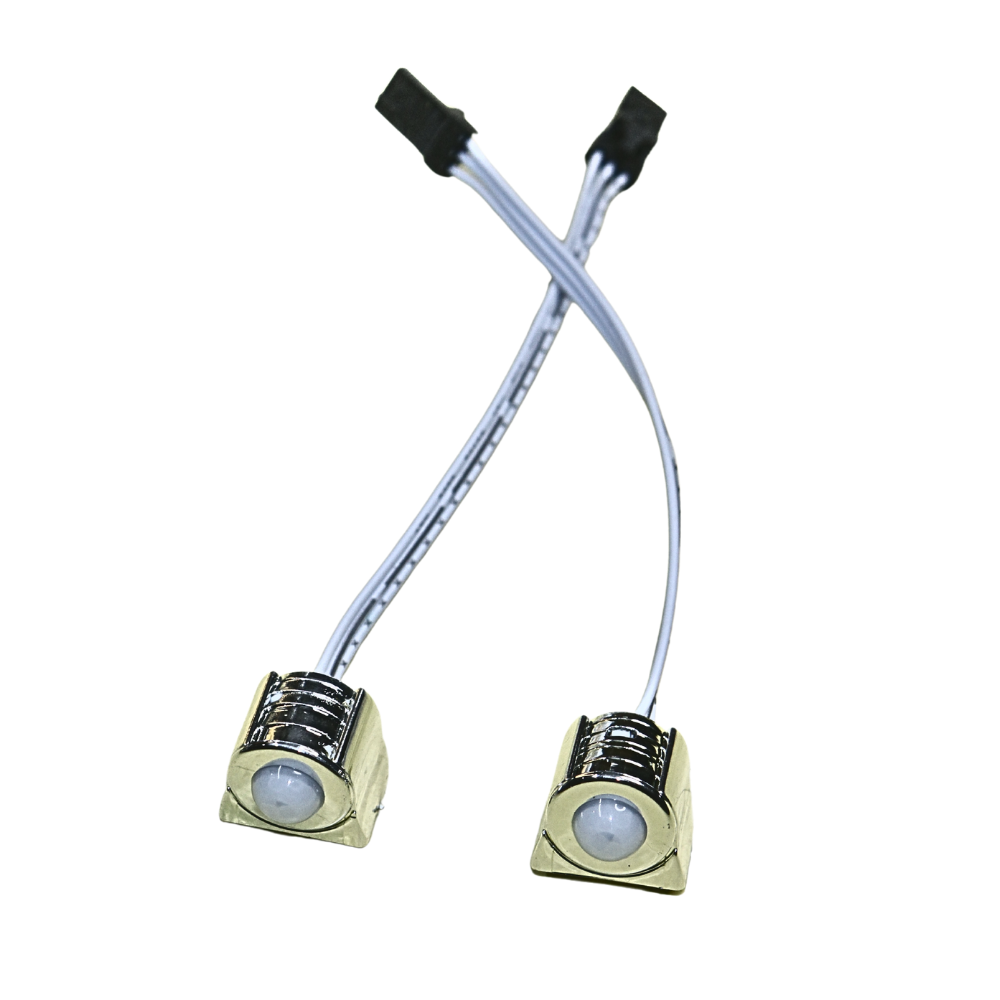

• 🚶 Motion Sensor Based Automatic Control
  Lights turn ON automatically when movement is detected.
• 💡 32 Independent LED Channels
  Supports up to 32 stair steps with individual output control.
• ⚡ Dual Voltage Support – DC 12V / 24V
  Compatible with most low-voltage LED step lights & strips.
• 🔥 High Power Capacity – 500W Total Output
  Suitable for long staircases and high-brightness LED loads.
• 🛡️ Anti-Short Circuit Protection
  Designed to protect LEDs and controller from wiring faults.

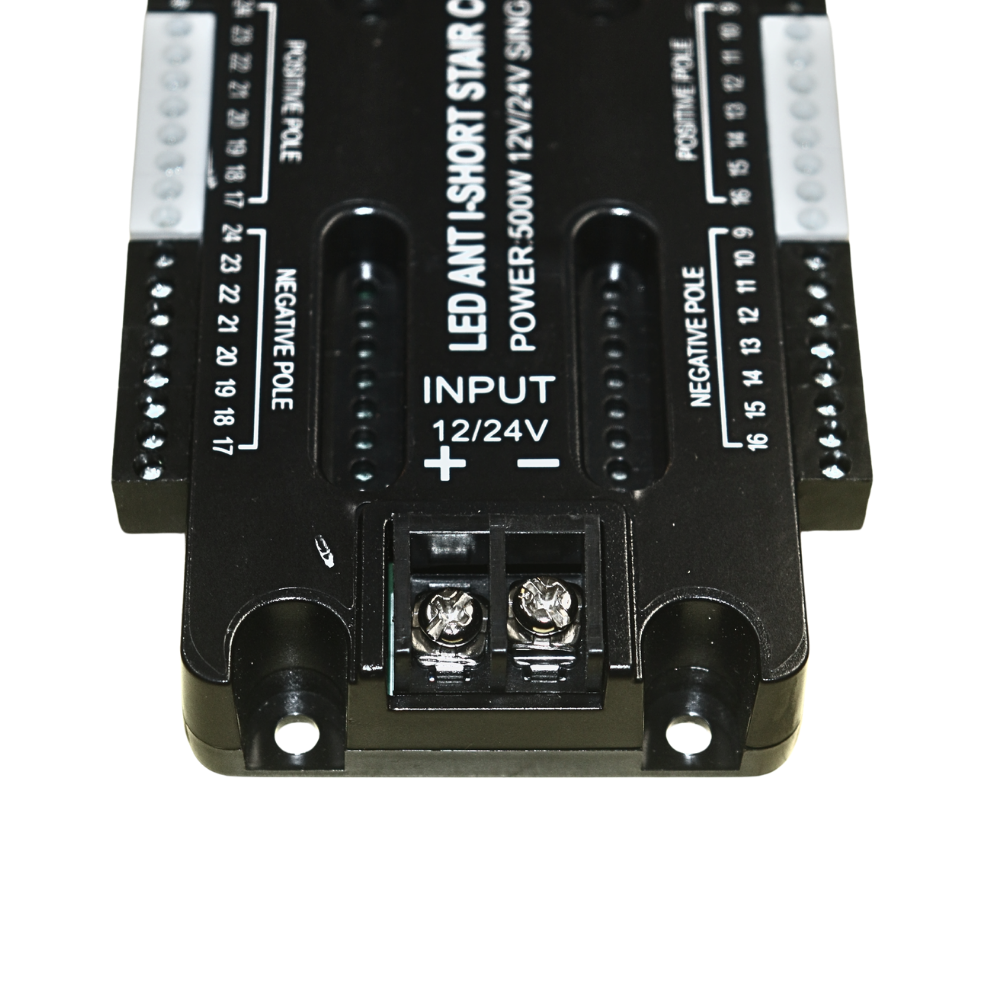

• 🔌 Clear Terminal Markings
  Separate Positive Pole and Negative Pole terminals for easy installation.
• 🎛️ Single Gang Output – 3A × 32 Channels
  Stable current handling for each step light.
• 🏠 Professional & Clean Installation
  Ideal for concealed wiring and panel mounting.

📊 Technical Specifications
