Description

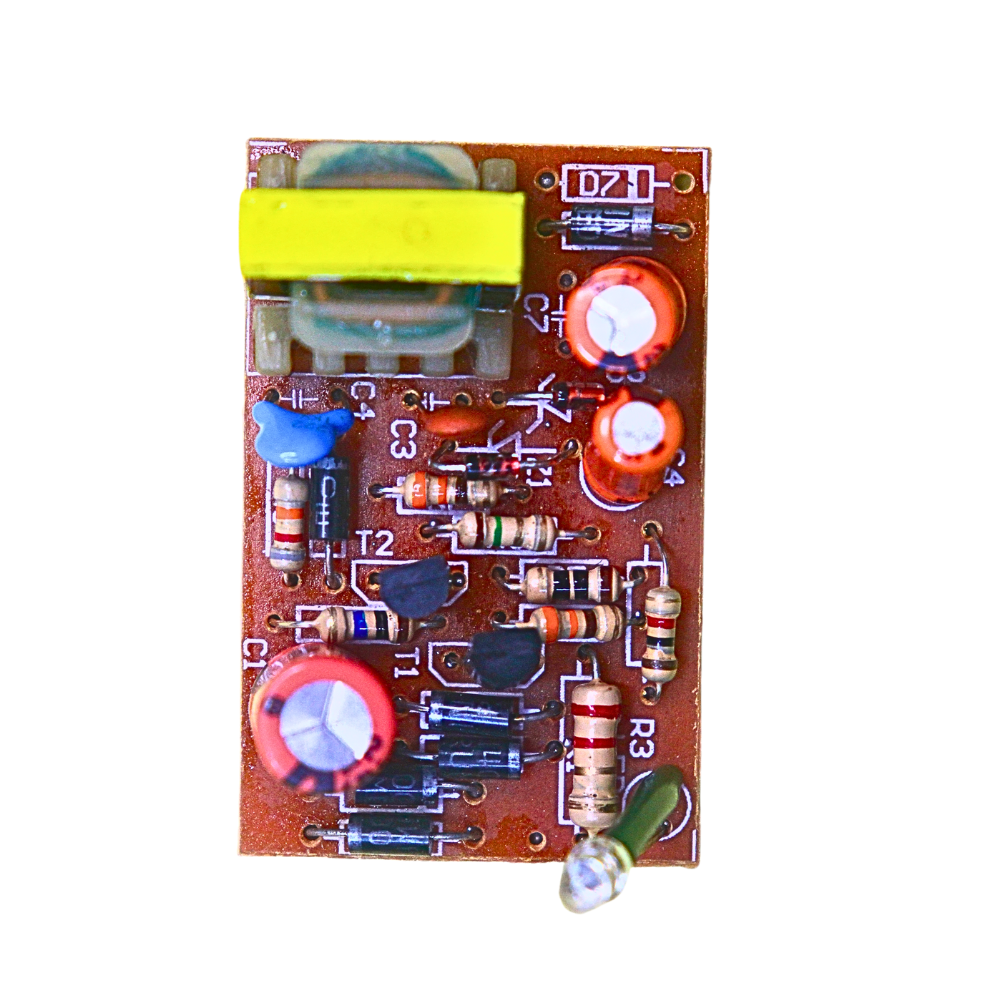

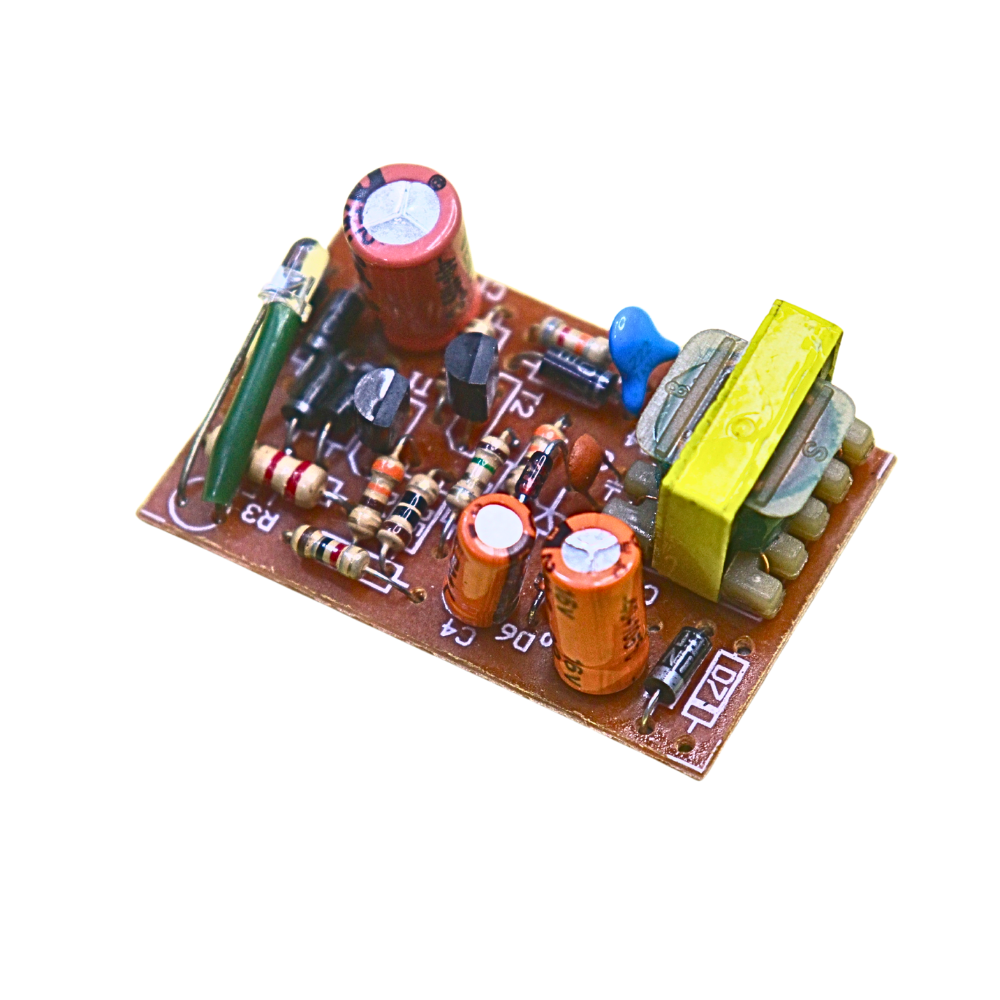

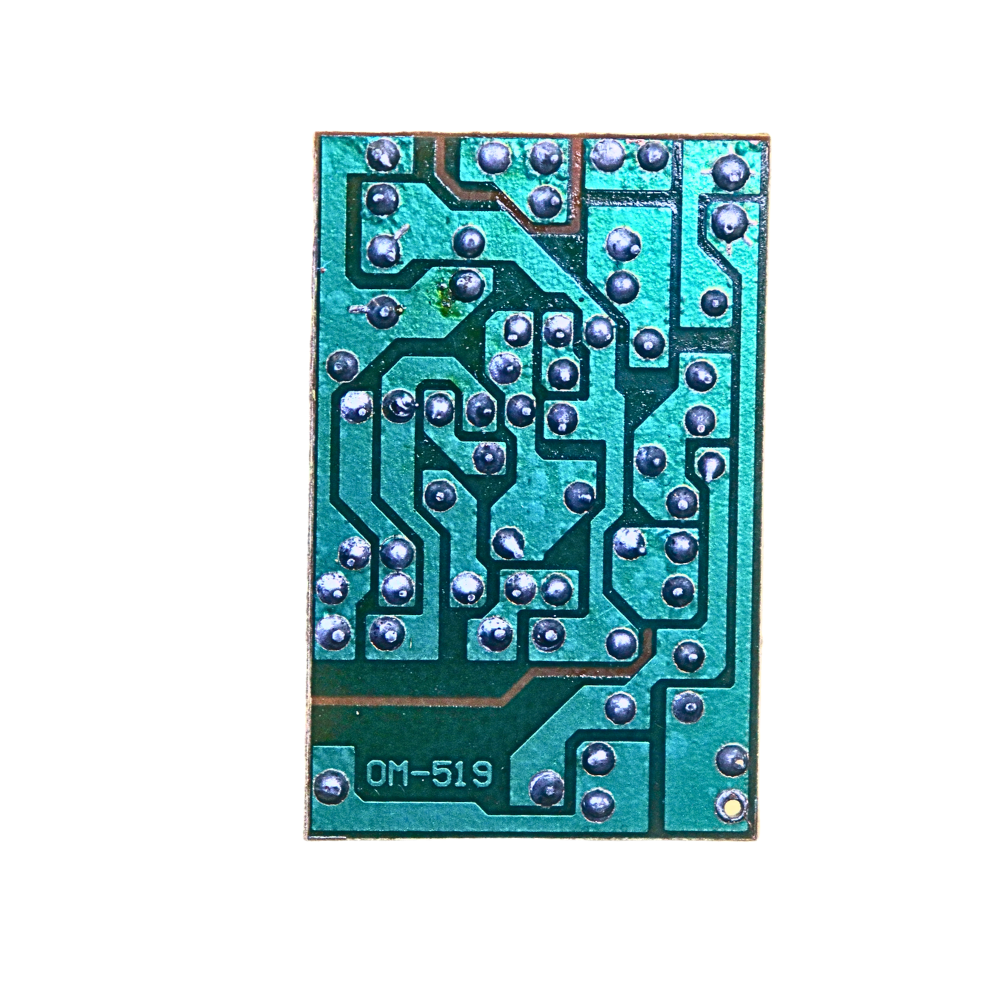

5V 1 Amp Power Supply Board 220V AC to 5V DC
The circuit produces an output of 5V and 1A, it is mainly used in cell phone chargers, microcontrollers, Bluetooth/WiFi modules etc. The circuit board converts an input voltage of 220V AC and converts it into a 5V DC output. The circuit has a transformer that steps down the voltage from 220V AC to 5V AC, The four diodes in the circuit act as a rectifier that converts the AC voltage to DC voltage. The circuit consists of numerous resistors and capacitors, which acts as filters. The resistors and capacitors smooth the current and the voltage flow giving an approximate, average voltage value that is required.
- Small SMPS 5V
- 1A Power
- SMPS for Small Project
- Input 230V AC
- Output 5V DC
