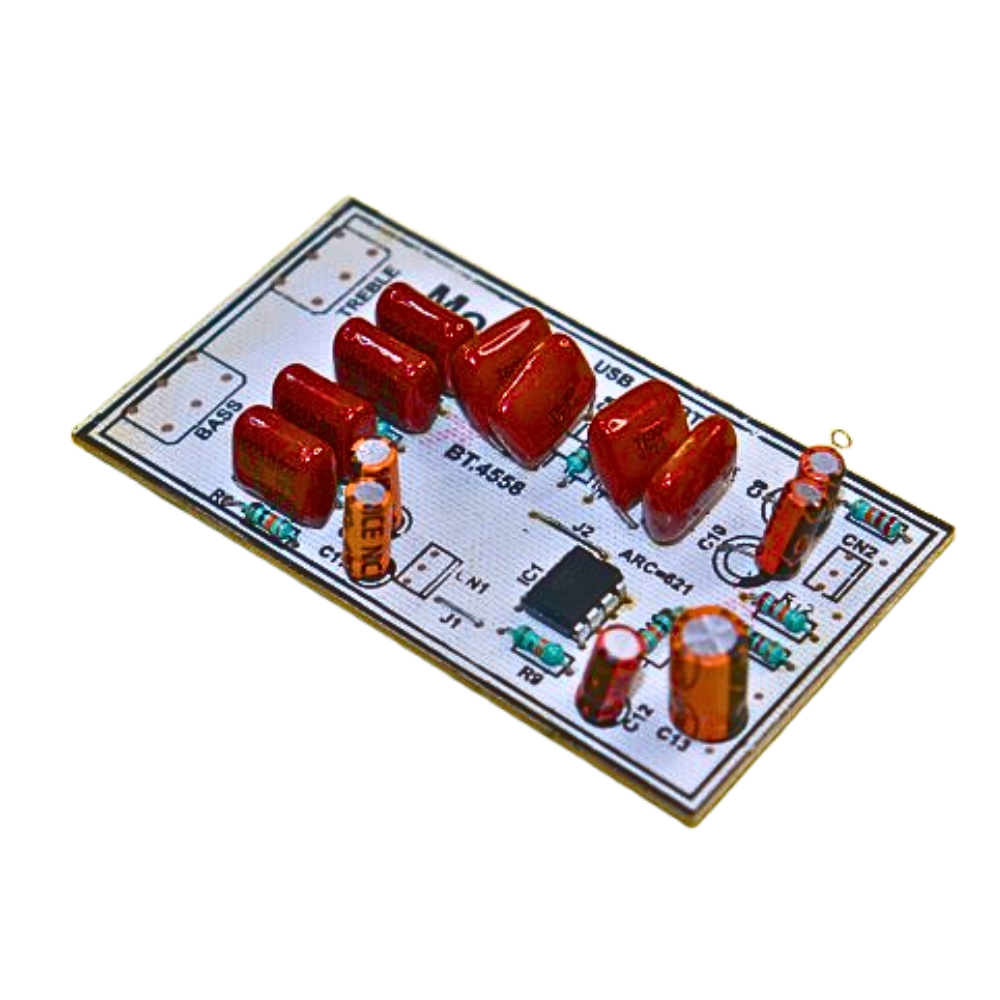

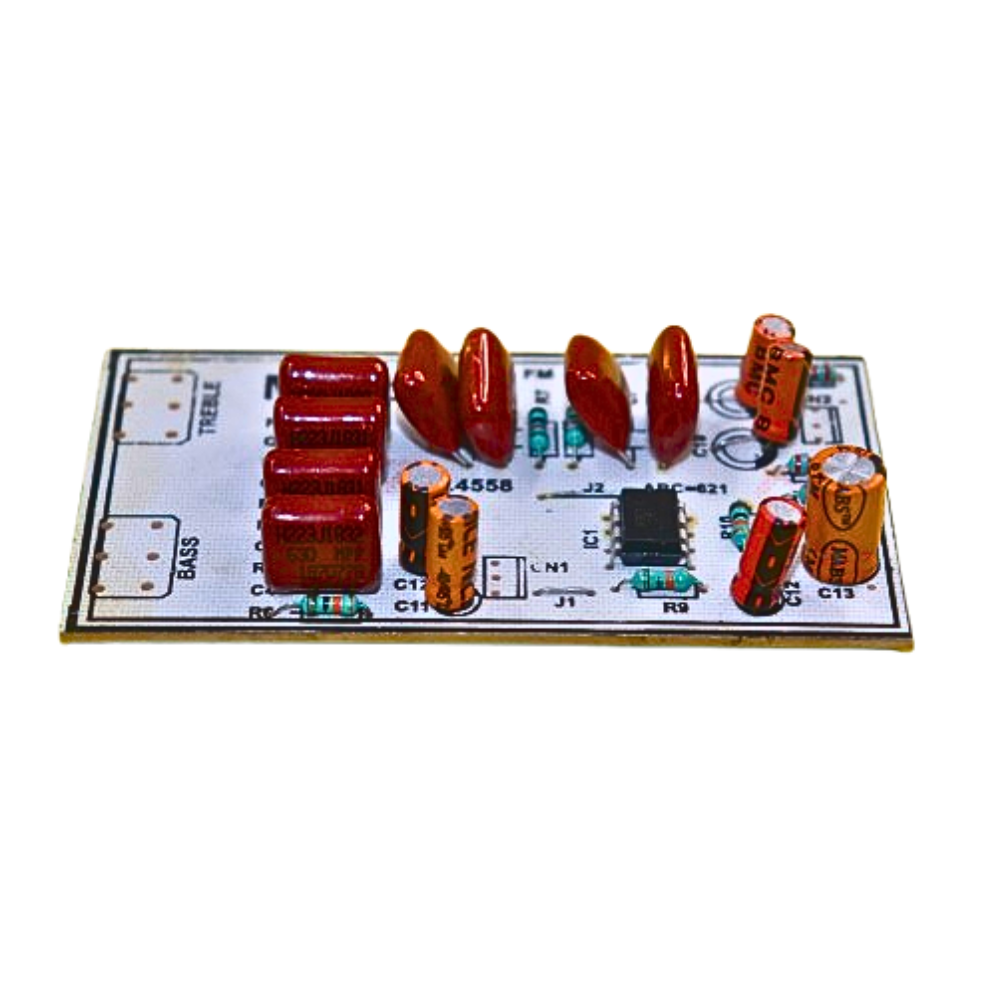

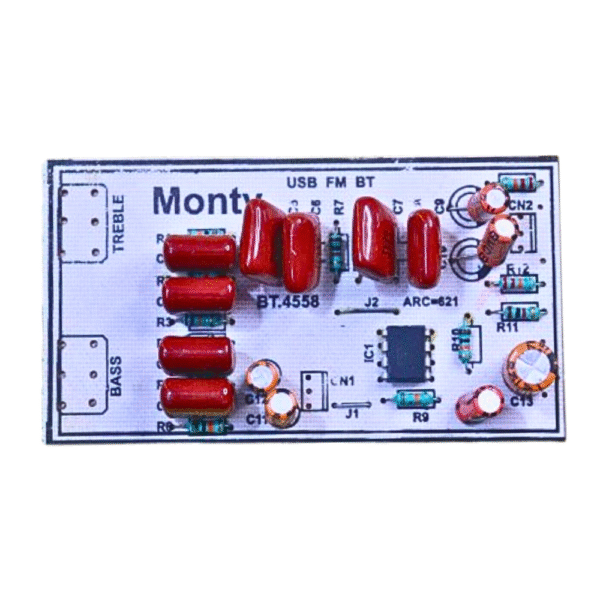

Bass Treble Board with Single 4558 IC | Preamp Tone Control Board
Upgrade your audio system with our Bass Treble Board featuring a Single 4558 IC!
This preamplifier tone control board is designed to deliver clear, adjustable bass and treble, enhancing the sound quality of your amplifier setup. Built around the industry-standard 4558 operational amplifier IC, this board offers high performance, low noise, and strong durability, making it perfect for DIY audio enthusiasts, electronics repair technicians, and hobbyists.
The board is compact, efficient, and simple to install, requiring only basic DC voltage and audio connections. Whether you’re building a new amplifier, modifying an existing one, or repairing old audio equipment, this Bass Treble Board provides you with professional-grade sound adjustments at an affordable price.
Key Features:
-
IC Used: Single 4558 Dual Op-Amp IC
-
Controls:
-
Bass Control
-
Treble Control
-
-
Input Voltage: 12V DC (Typical)
-
High-Quality Components: Good quality resistors, capacitors, and potentiometers used for stable operation and longevity.
-
Compact Design: Easy to fit inside small amplifier cabinets.
-
Plug and Play: Simple wiring for easy DIY projects.
-
Low Noise Output: Provides clean amplification without significant background noise.
Technical Specifications Table:
| Parameter | Details |
|---|---|
| Operating Voltage | 9V to 15V DC |
| IC Model | 4558 Dual Operational Amplifier |
| Input Channels | 2 (Left and Right Stereo) |
| Output Channels | 2 (Left and Right Stereo) |
| Adjustment Knobs | Bass, Treble |

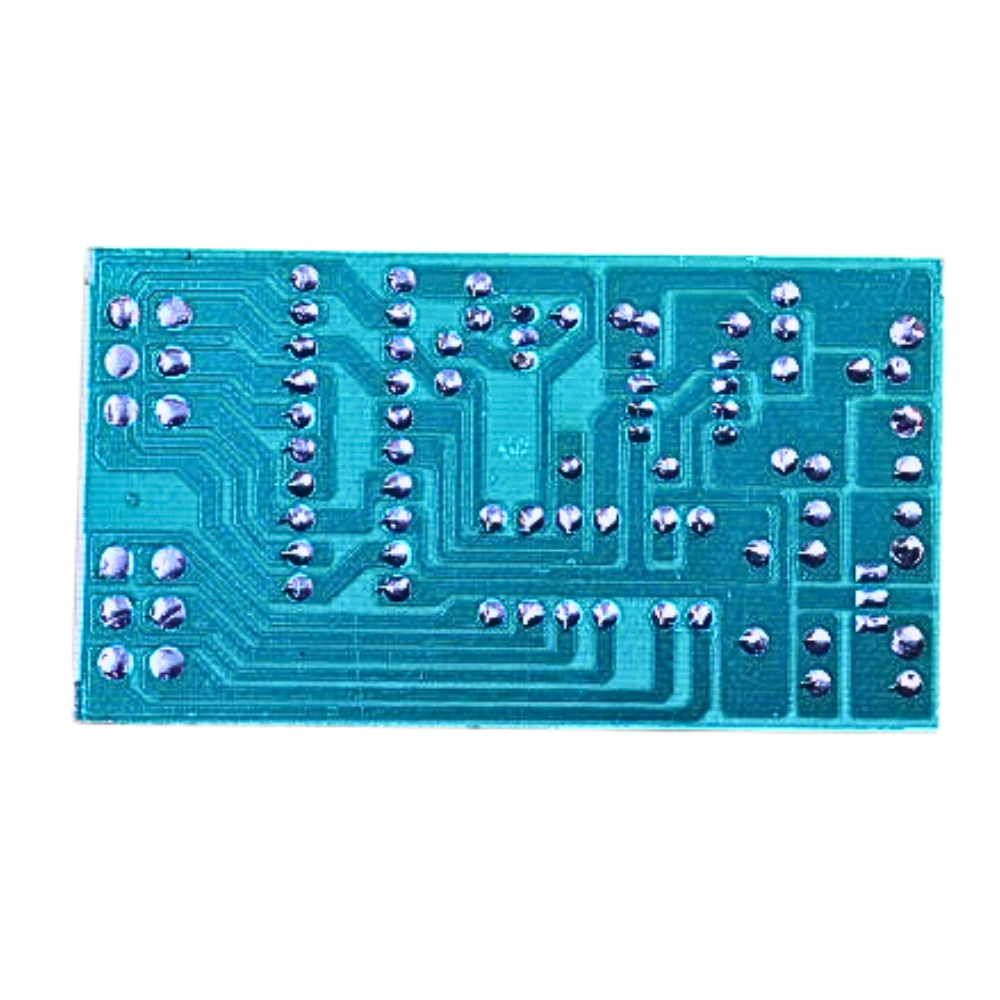

| Board Material | High-quality PCB with copper tracing |
| Dimensions (Approx.) | 9cm x 9cm (L x W) |
| Signal to Noise Ratio | > 80dB |
Applications:
-
DIY Stereo Amplifier Projects
-
Audio System Modifications and Upgrades
-
Repair and Replacement of Damaged Bass Treble Sections
-
Small Portable Amplifier Systems
-
Car Audio Customizations
-
Multimedia Speaker Enhancements
-
Home Theater Systems Preamp
