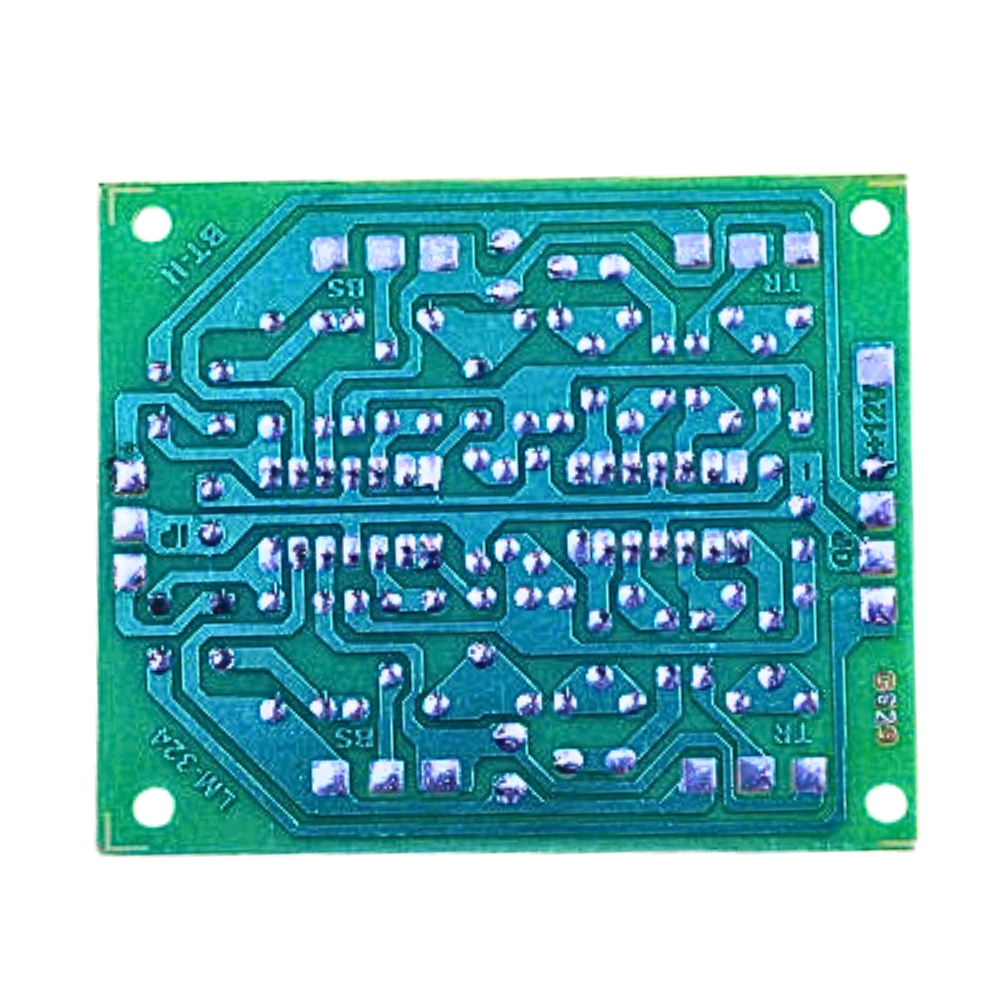

Bass Treble Board with Single LM324 IC | Preamp Tone Control Board

Original price was: ₹199.00.Current price is: ₹119.00.

  • Bass Treble Board
  • LM324 Preamp Board
  • Tone Control Circuit
  • Audio Preamp Module
  • DIY Audio Board
  • Bass Treble Control Board
  • Amplifier Tone Board

In stock

Description

Bass Treble Board with Single LM324 IC | Preamp Tone Control Board

Enhance your audio experience with this Bass Treble Board featuring the LM358 IC. Designed for precision tone control, this preamp tone control board delivers clean, crisp sound with deep bass and clear treble. Ideal for DIY audio projects, home theater systems, and music enthusiasts looking to customize their sound output.

📋 Product Description:

  • IC Used: LM358 Dual Operational Amplifier

  • Function: Bass and Treble tone adjustment with preamplifier functionality

  • Input Voltage: DC 12V (Recommended range: 9V – 15V)

  • Audio Channels: Single Channel (Mono)

  • Controls Available:

    • Bass Control

    • Treble Control

  • Output Type: Pre-Amplified Audio Output

  • PCB Type: High-quality fiber PCB for durability and better sound performance

  • Potentiometers: Smooth rotation pots for accurate adjustment

  • Applications: Perfect for DIY amplifiers, car audio systems, home speakers, multimedia speakers, and more.

📊 Technical Specifications:



Specification Details
IC Model LM358
Power Supply DC 9V to 15V (12V recommended)
Channel Mono (Single Channel)
PCB Material FR-4 Grade Fiber Board
Frequency Response 20Hz – 20kHz
Tone Control Bass, Treble
Output Signal Pre-Amplified Audio
Board Size 9cm X 6cm

🎯 Features:

  • High-Quality Sound: LM358 IC provides clean and noise-free amplification.

  • Easy Installation: Simple wiring with input/output and power connections.

  • Precise Tone Control: Independent knobs for Bass and Treble adjustment.

  • Compact Design: Fits easily into custom enclosures or existing amplifier systems.

  • Energy Efficient: Low power consumption for portable and battery-operated projects.

  • Durable Construction: Built with strong components to ensure long-lasting performance.

🛠️ Applications:

  • DIY Audio Amplifier Projects

  • Upgrading Car Audio Systems

  • Home Theatre Systems

  • Multimedia Speaker Systems

  • Guitar and Microphone Preamp Circuits

  • Hobby Electronic Projects

  • School/College Audio DIY Kits

Additional information

Weight 0.2 kg
Dimensions 10 × 7 × 3 cm
