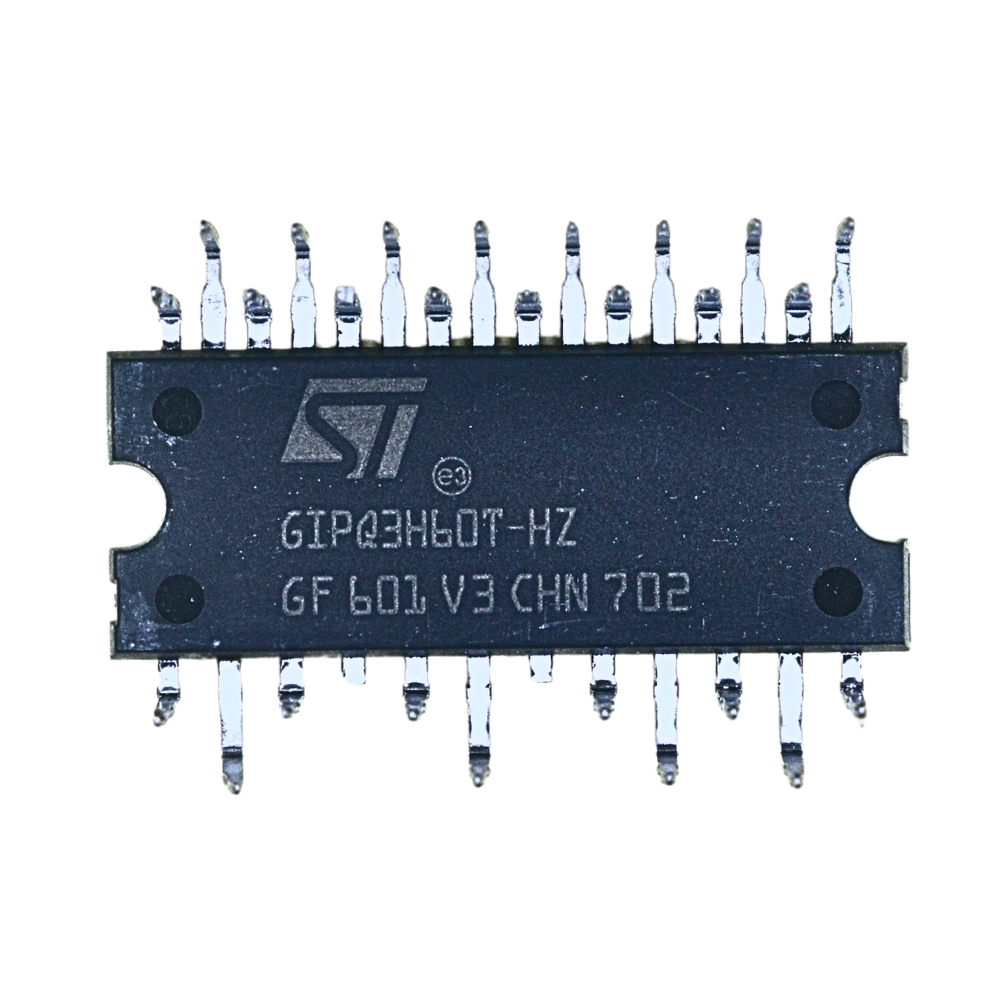

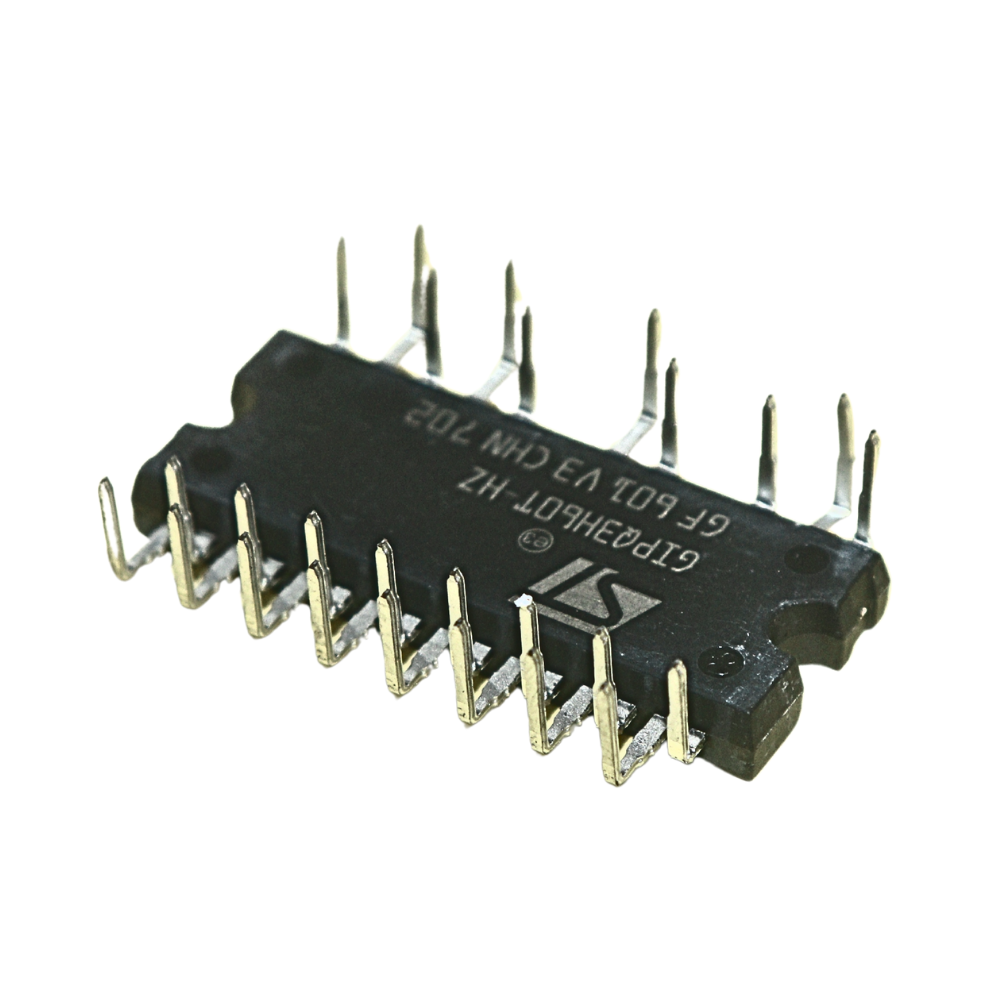

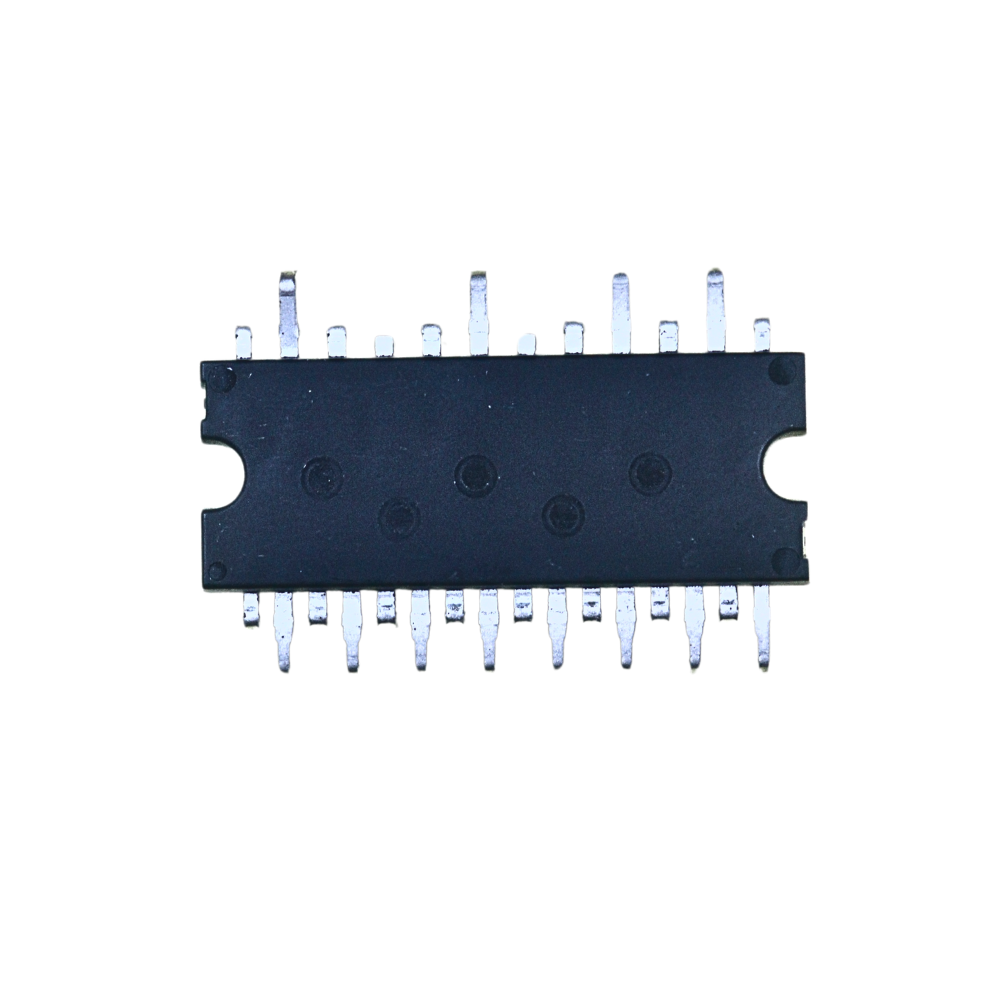

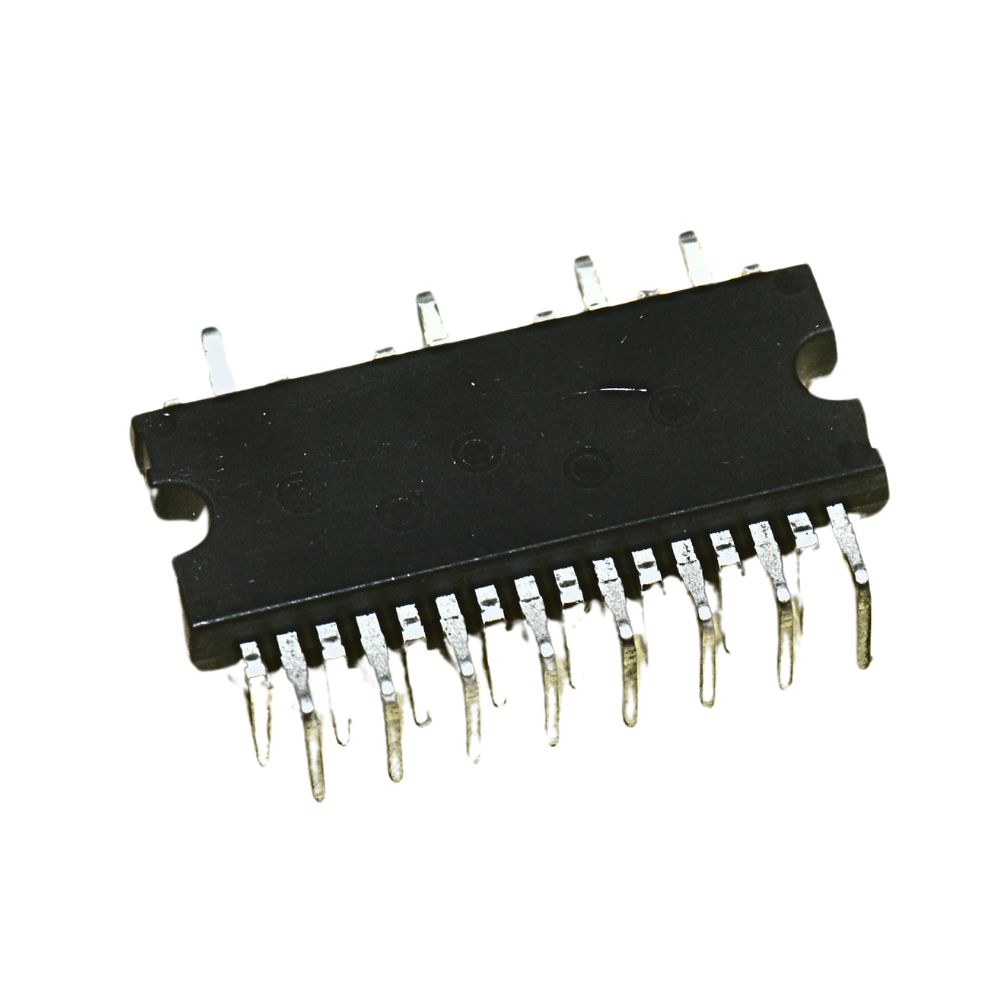

🔥 GIPQ3H60T Intelligent Power Module (IPM) – 3A 600V
Reliable High-Voltage Power Control for Inverter & Motor Drive Applications ⚡
The GIPQ3H60T Intelligent Power Module (IPM) is a compact, high-performance power module designed for efficient switching, protection, and control in high-voltage applications. With 600V voltage handling and 3A output current, this IPM integrates power devices and protection circuitry into a single, easy-to-use package—making it ideal for technicians, engineers, and manufacturers.
✅ Key Features & Highlights
- ⚡ High Voltage Rating: Supports up to 600V, suitable for AC mains-based systems
- 🔌 3A Output Current: Ideal for medium-power inverter and motor control circuits
- 🧠 Intelligent Protection Built-in:
- Over-current protection
- Under-voltage lockout (UVLO)
- Short-circuit protection
- 🔥 Low Power Loss Design: Improves efficiency and reduces heat generation
- 🧩 Compact IPM Package: Saves PCB space and simplifies circuit design
- 🛠️ Easy Integration: Reduces external component count and design complexity
- 🔄 High Switching Performance: Stable operation at high switching frequencies
📋 Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model Number | GIPQ3H60T |
| Module Type | Intelligent Power Module (IPM) |
| Maximum Voltage | 600V |
| Output Current | 3A |
| Integrated Devices | IGBT + Driver + Protection Circuit |
| Protection Features | Over-current, UVLO, Short-circuit |
| Application Type | Inverter, Motor Drive, Power Control |
| Mounting Type | PCB Mount |
| Operating Stability | High efficiency & low noise |
| Package Type | IPM Compact Module |
🔧 Applications & Use Cases
This IPM is widely used in both repairing and new product manufacturing:
- 🔁 Inverter Circuits (AC/DC & DC/AC)
- ⚙️ Motor Drive Systems (Fans, Pumps, Small Motors)
- ❄️ Air Conditioner Outdoor & Indoor Units
- 🧺 Washing Machines & Home Appliances
- 🔋 SMPS & Power Conversion Systems
- 🛠️ Industrial Control Boards
- 🧪 Electronics Repair & R&D Projects
💡 Why Choose GIPQ3H60T IPM?
- ✔️ Saves design time with all-in-one intelligent solution
- ✔️ Improves system reliability with built-in safety protections
- ✔️ Perfect replacement for faulty IPMs in inverter boards
- ✔️ Suitable for technicians, service centers, and manufacturers
📦 Package Includes
-
1 × GIPQ3H60T Intelligent Power Module (IPM)
