Gold-P175 LED TV Panel Booster Module | Universal T-Con Voltage Repair Board for LCD/LED TV Panel Repair
Gold-P175 is a Universal Panel Booster / Voltage Repair Module specially designed for LED TV panels. When LVDS/T-Con board is not generating correct voltages like VGH, VGL, AVDD, HVDD, VCOM, etc., this module helps you to repair & boost panel voltages quickly.
This module generates missing voltage rails required for LCD LED TV panel operation.
⭐ Key Features (Point-to-Point)
- ✅ Universal use for various LCD/LED Panels
- ✅ Support Side LED Voltage Repair

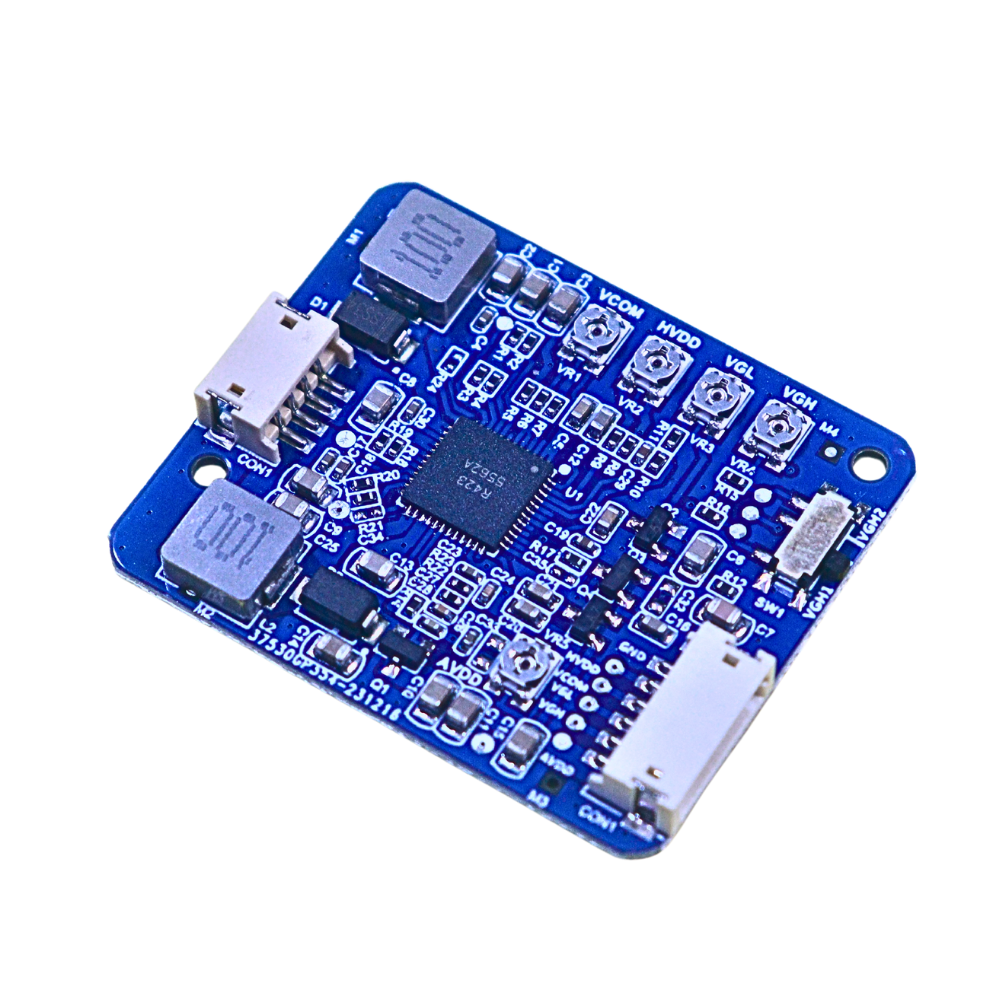

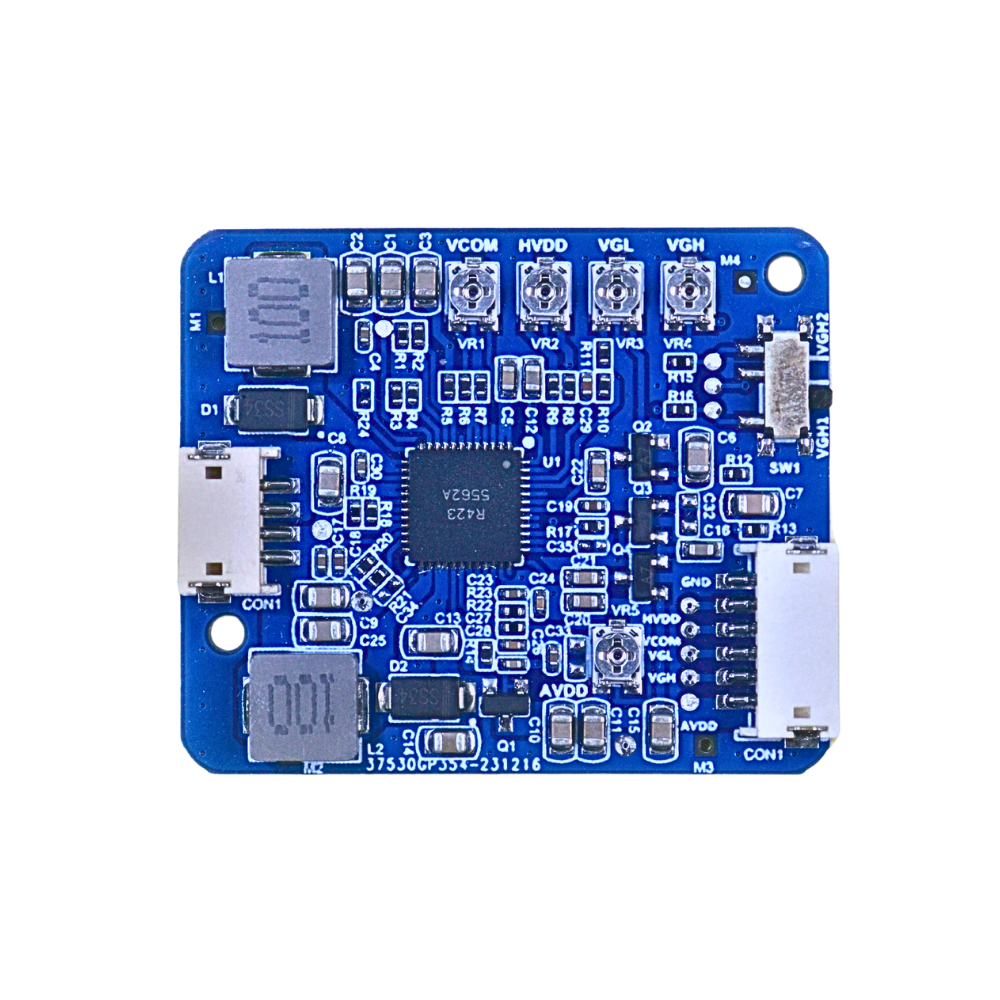

- ✅ Separate VR Pot Controls for VCOM, HVDD, VGL, VGH
- ✅ Professional Grade PCB (Blue Color High Quality)
- ✅ Accurate Boosting & Precision voltage control
- ✅ Very useful for No Display, Dim Display, Half Screen issue repairing

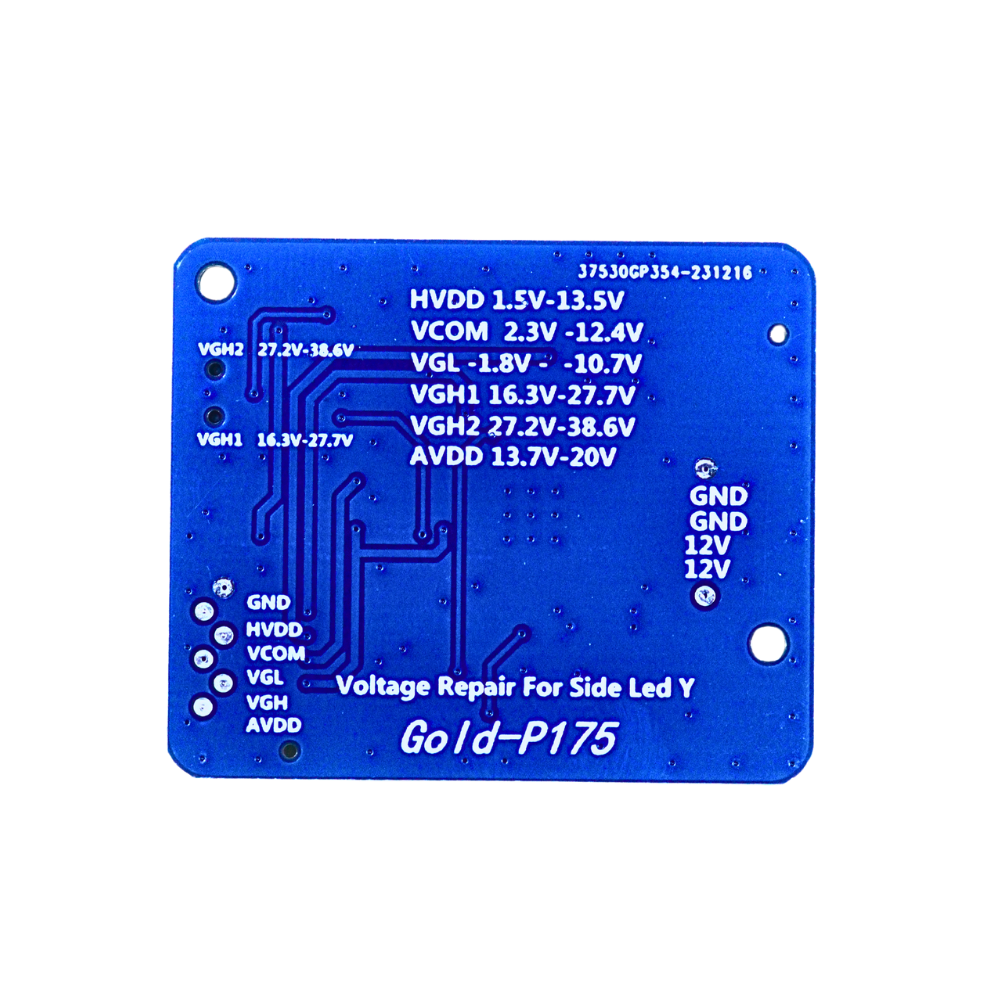

📌 Voltage Range (As Printed on PCB)
| Signal | Range |
|---|---|
| HVDD | 1.5V – 13.5V |
| VCOM | 2.3V – 12.4V |
| VGL | -1.8V – -10.7V |
| VGH1 | 16.3V – 27.7V |
| VGH2 | 27.2V – 38.6V |
| AVDD | 13.7V – 20V |
🔧 Input Supply Support:
- 12V Input Supported
- GND Terminals also available for proper stability
🔍 Applications:
- LCD/LED TV Panel Voltage Repair
- T-Con missing voltage rebuild
- Panel Boosting for No Display, White Display, Black Display
- LED TV Service Centers
- DIY LED TV Repair Projects
- Technical Training Labs / Institutes
Why Should You Buy This?
This module saves your money & time by restoring correct voltages without replacing complete T-CON or Panel. Extremely helpful for technicians and service professionals.
📦 Package Include:
-
1x Gold-P175 Panel Booster Module
