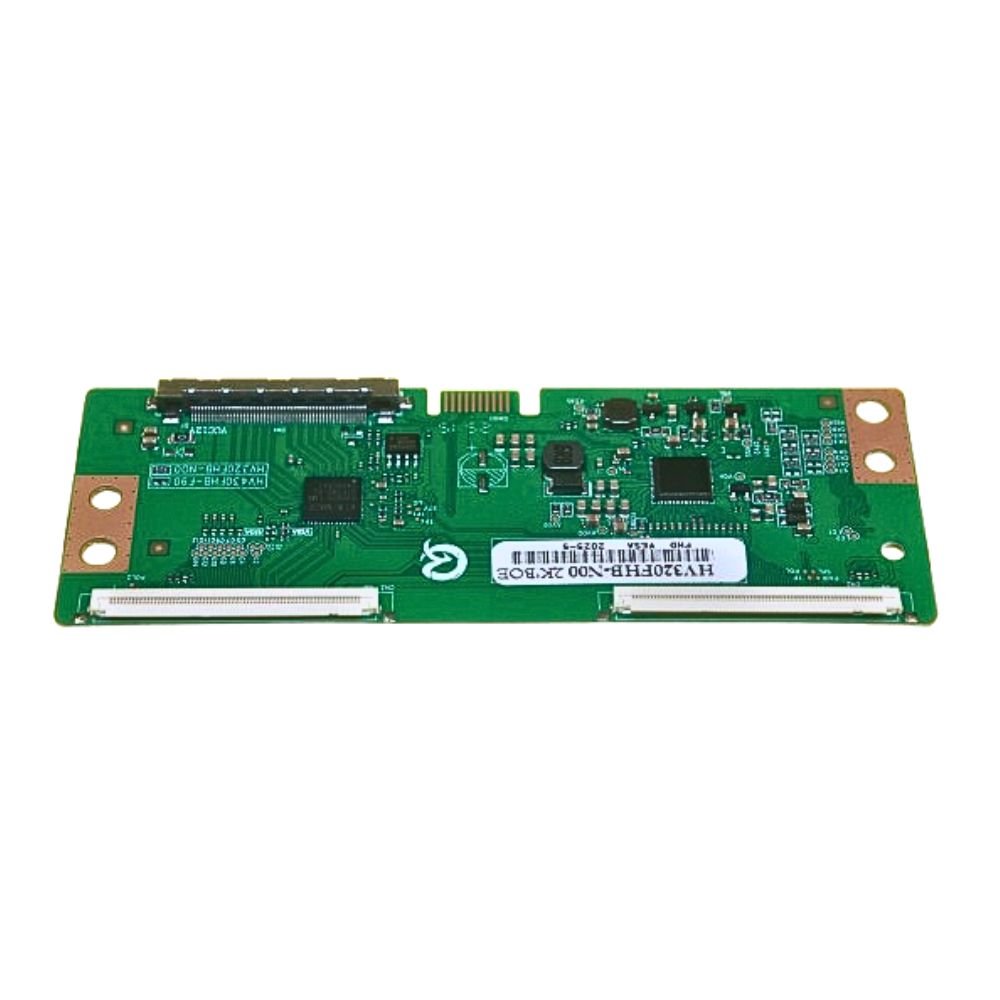

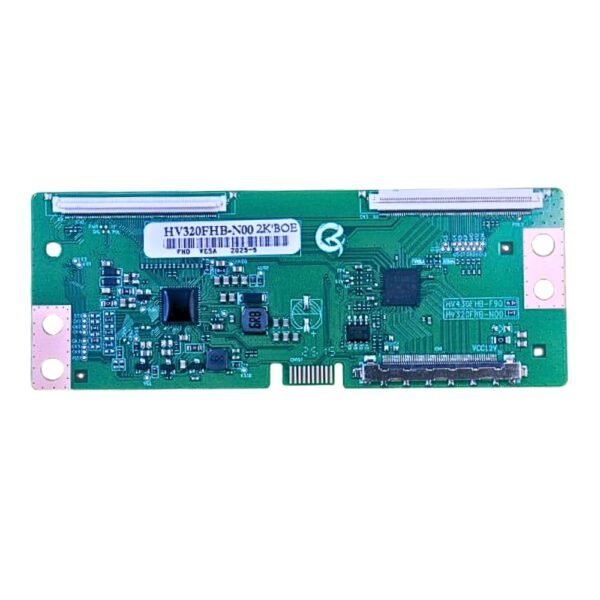

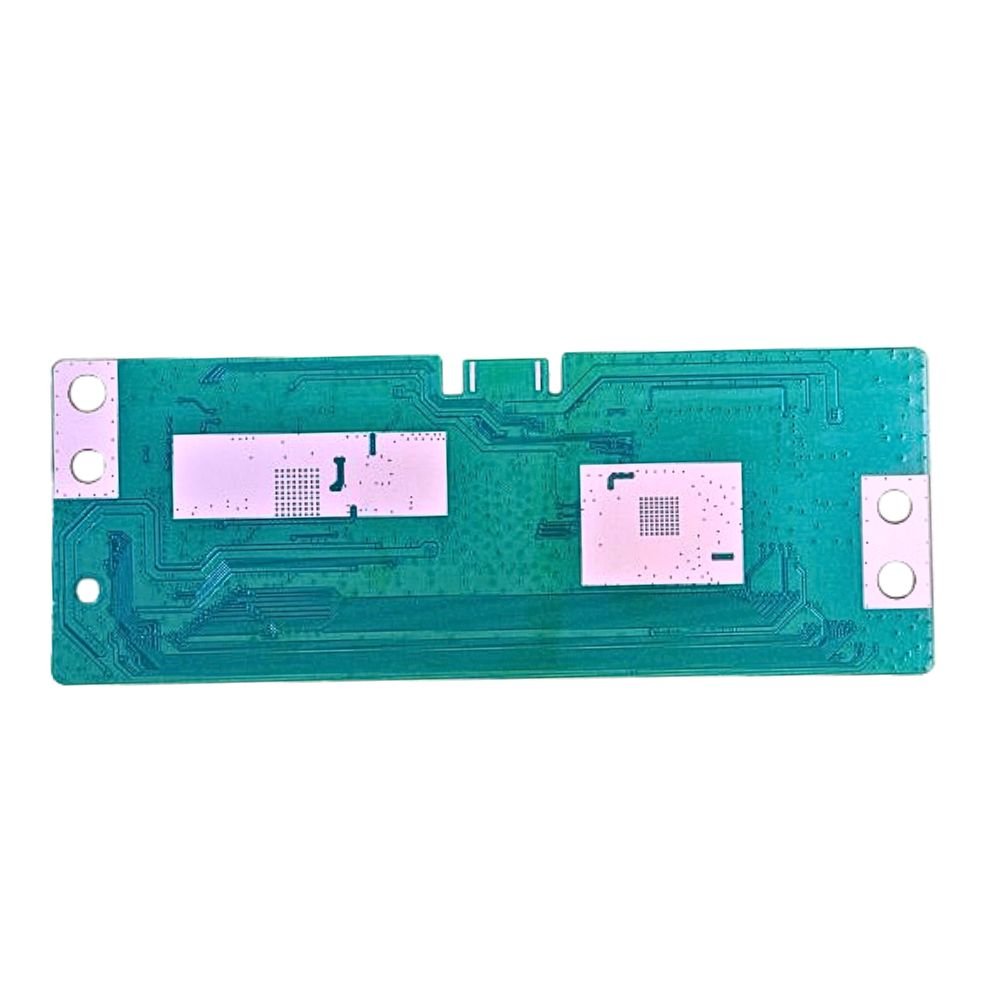

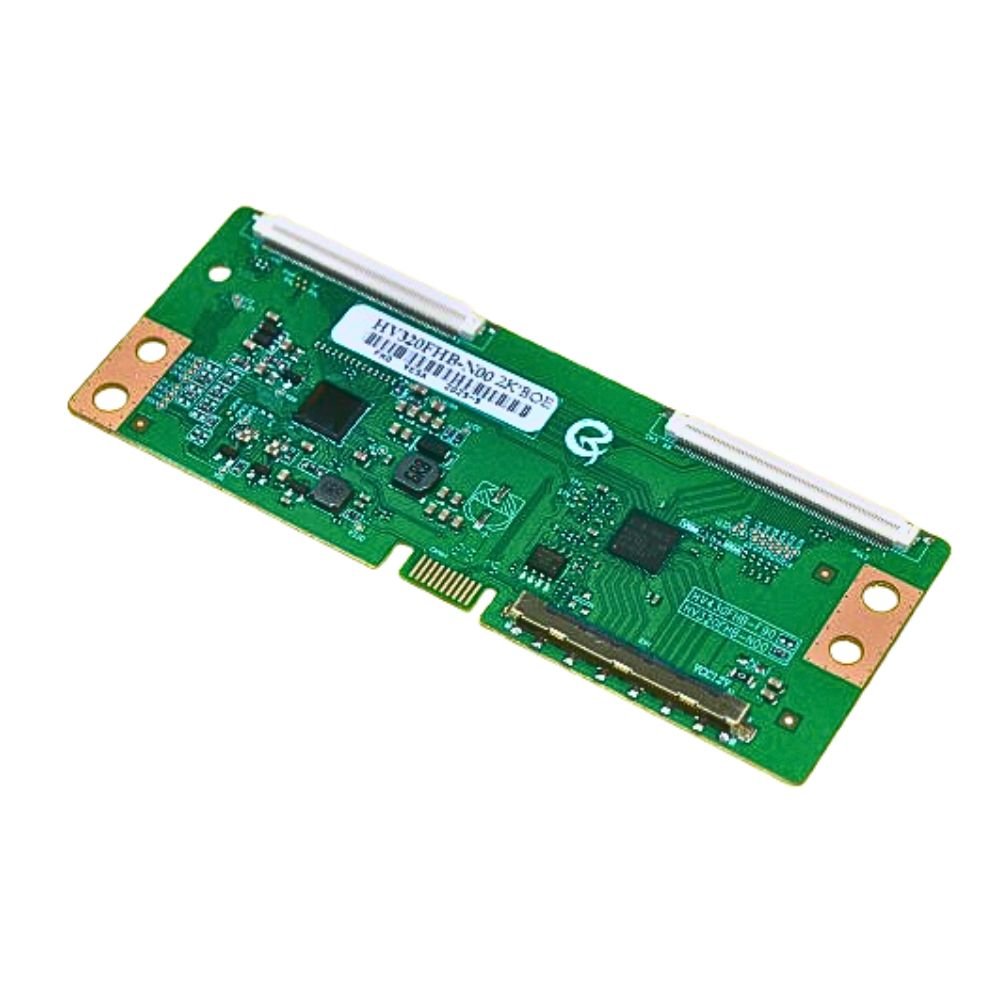

🖥️ HV320FHB Universal TCON Board with VESA/JEIDA & CKV Line Jumper
Upgrade or repair your LED TV or monitor panel with the HV320FHB Universal TCON Board, specially designed to support multiple 32-inch LED panel models. It features VESA/JEIDA selection and CKV Line jumper, making it versatile and compatible with a wide range of panels. This T-CON board is ideal for technicians, DIY repairers, and electronics professionals.
✅ Key Features & Benefits
- 🔄 Universal Compatibility – Designed to work with various HV320FHB panel variants.
- 🔧 VESA/JEIDA Jumper – Easy selection between VESA or JEIDA signal types using onboard jumper.
- 🔌 CKV Line Selection – Comes with a CKV jumper to support CKV track-based panels.
- 🛠️ Perfect for Repair & Replacement – Ideal for use in panel repairs or conversions.
- ⚡ Stable Performance – Ensures clear video output and reliable functioning.
- 🔍 High Build Quality – Durable components for long-lasting use.
📋 Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Universal TCON Board |
| Model Compatibility | HV320FHB Series |
| Supported Panels | N00, N10, N02, F40, F80 |
| Input Interface | LVDS |
| Output Signal | Supports VESA & JEIDA via Jumper |
| CKV Support | Yes, with CKV Line Jumper |
| Panel Size Support | 32-inch (Typically) |
| Application | LED TV, Monitor Panel Repair |
| Operating Voltage | Standard TCON voltage (Typically 12V) |
| Dimensions | Standard 32″ Panel TCON size |
📺 Supported Panel Models
This TCON Board is compatible with the following panel models:
- ✅ HV320FHB-N00
- ✅ HV320FHB-N10
- ✅ HV320FHB-N02
- ✅ HV320FHB-F40
- ✅ HV320FHB-F80
🧰 Applications
- 🔧 LED TV Panel Repair
- 🖥️ LCD/LED Monitor Panel Repair
- 🔄 Universal Replacement for TCON Boards
- 🧑🔧 Technician Use in TV Service Centers
- 🎓 Training & Educational Purposes
