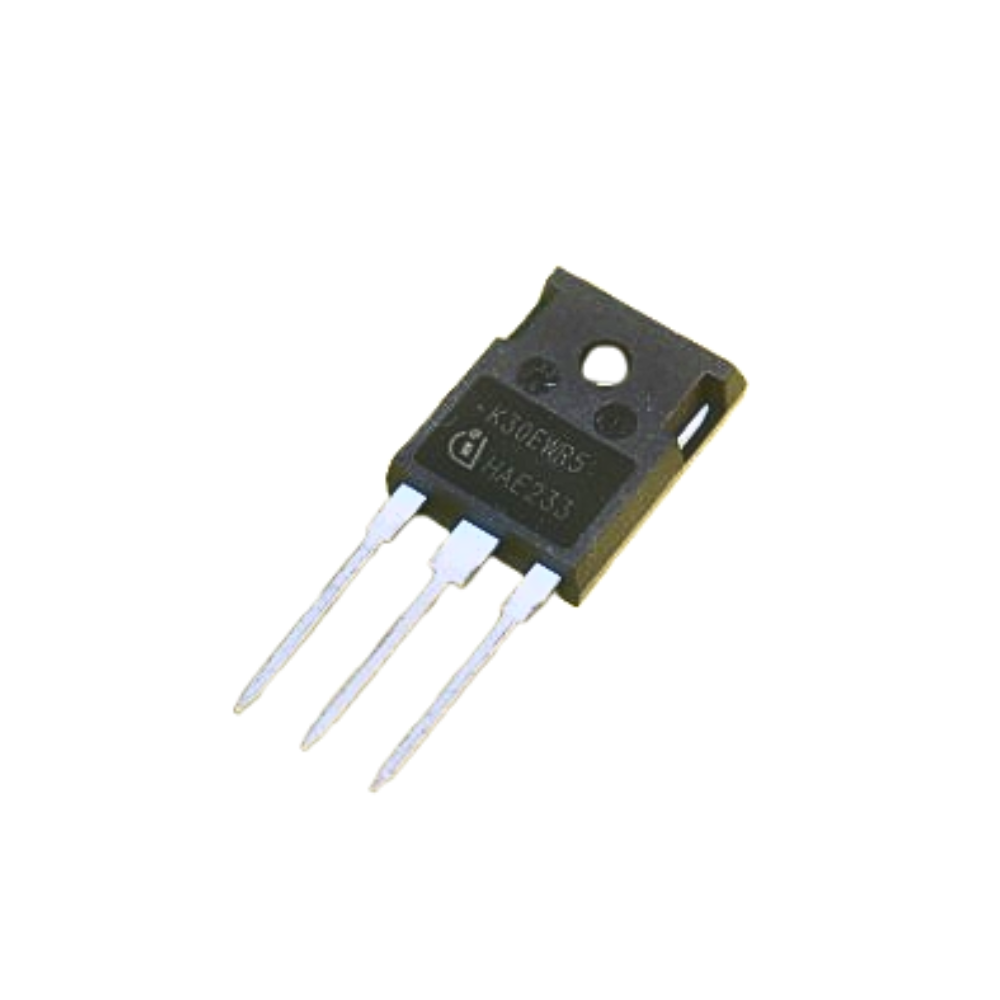

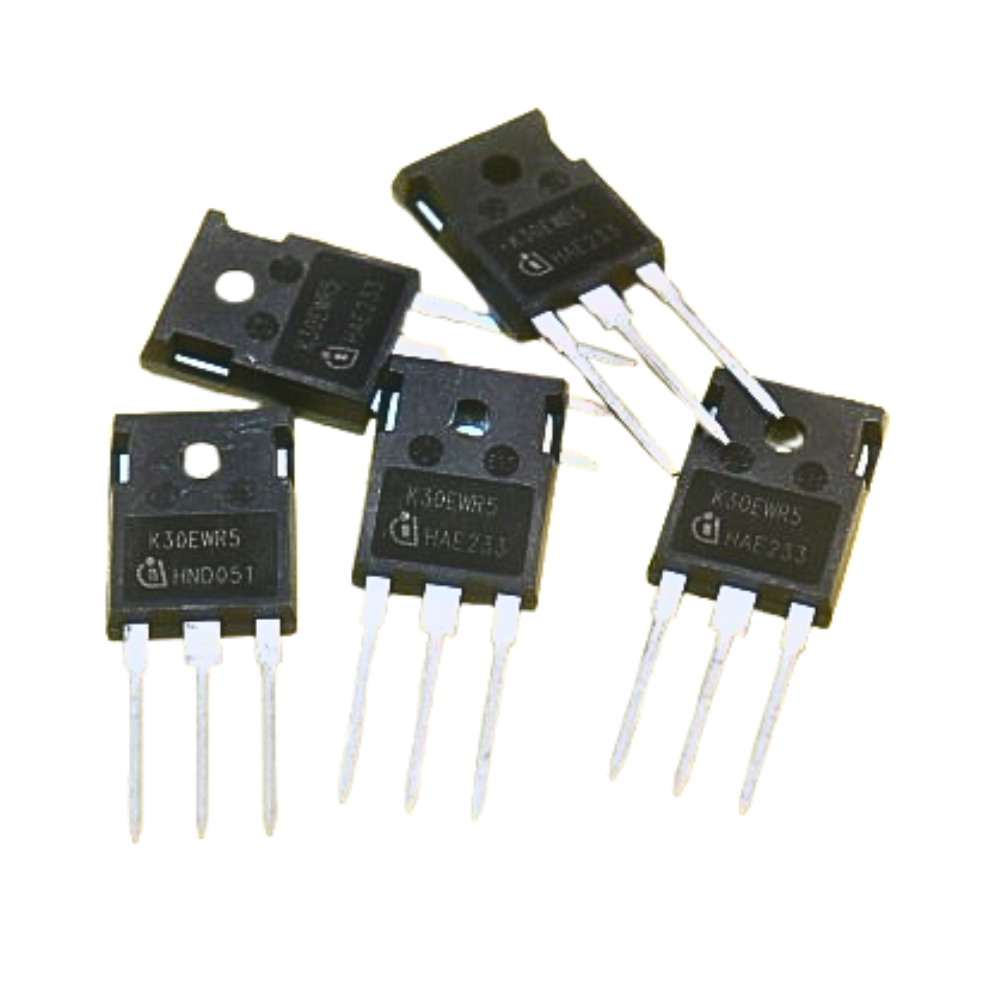

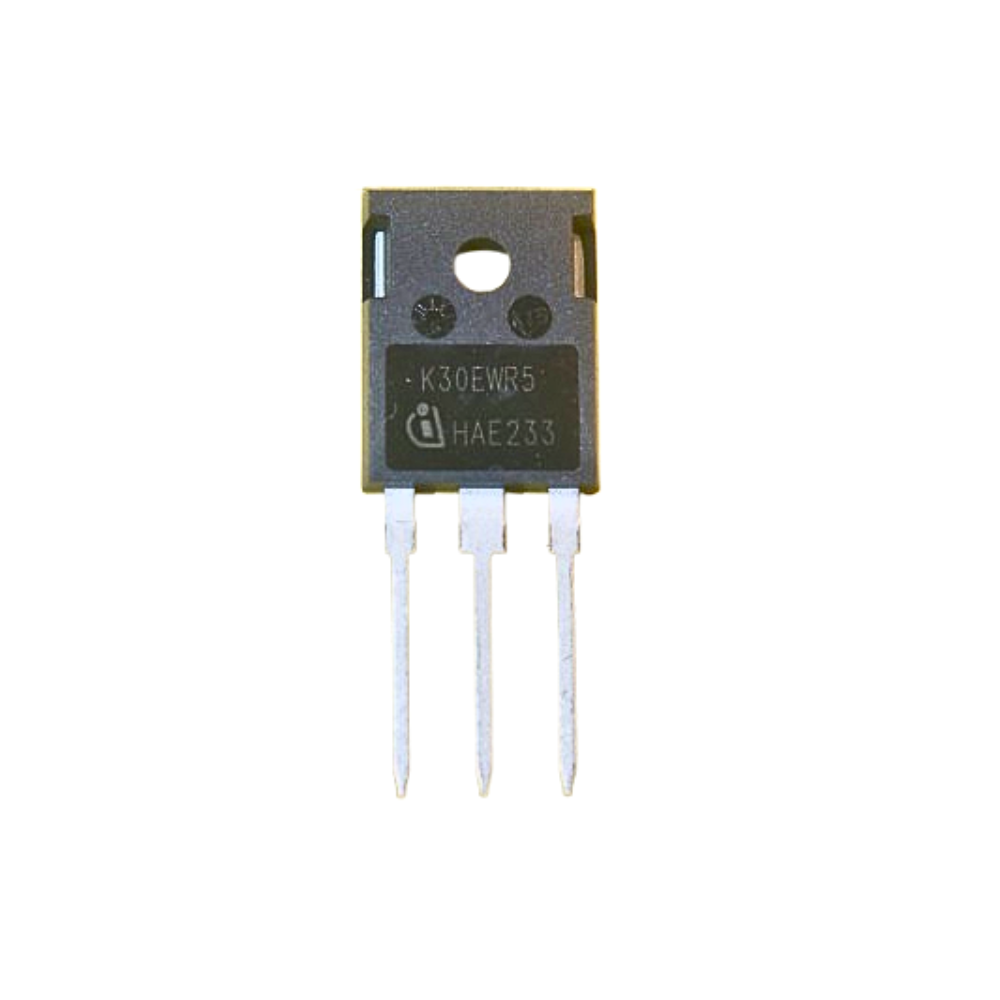

K30EWR5 Reverse Conducting IGBT | High-Efficiency Power Switching Component
Upgrade your power electronics projects with the K30EWR5 Reverse Conducting IGBT – a highly efficient and compact solution designed for high-speed switching and low loss operations. Perfect for induction heating, motor control, welding inverters, and more!
🔍 Key Features:
-
⚡ Reverse Conducting IGBT Technology – Combines IGBT and freewheeling diode in a single chip for compact design.
-
💨 Fast Switching Speed – Ideal for high-frequency applications like induction cookers and inverters.
-
🔥 Low Saturation Voltage – Reduces power loss and improves overall efficiency.
-
🧊 Built-in Diode – Simplifies circuit design and lowers component count.
-
🛠️ High Reliability – Strong thermal and electrical characteristics for durable operation.
-
🔧 Easy to Mount – Standard TO-247 package for quick installation and replacement.
📊 Technical Specifications Table:
| Parameter | Value |
|---|---|
| Part Number | K30EWR5 |
| Type | Reverse Conducting IGBT |
| Voltage Rating (V<sub>CES</sub>) | 600V |
| Current Rating (I<sub>C</sub>) | 30A |
| Gate Voltage (V<sub>GE</sub>) | ±20V |
| Package Type | TO-247 |
| Switching Frequency | Up to 20kHz |
| Built-in Diode | Yes |
| Collector-Emitter Saturation Voltage (V<sub>CE(sat)</sub>) | Low |
| Operating Temperature Range | -40°C to +150°C |
| Condition | New |
🎯 Applications:
-
🔄 Induction Heating Equipment
-
🌀 Motor Drives
-
⚙️ Welding Inverters
-
🔌 Power Factor Correction (PFC) Circuits
-
🔋 Uninterruptible Power Supplies (UPS)
-
🍳 Induction Cookers
