Description

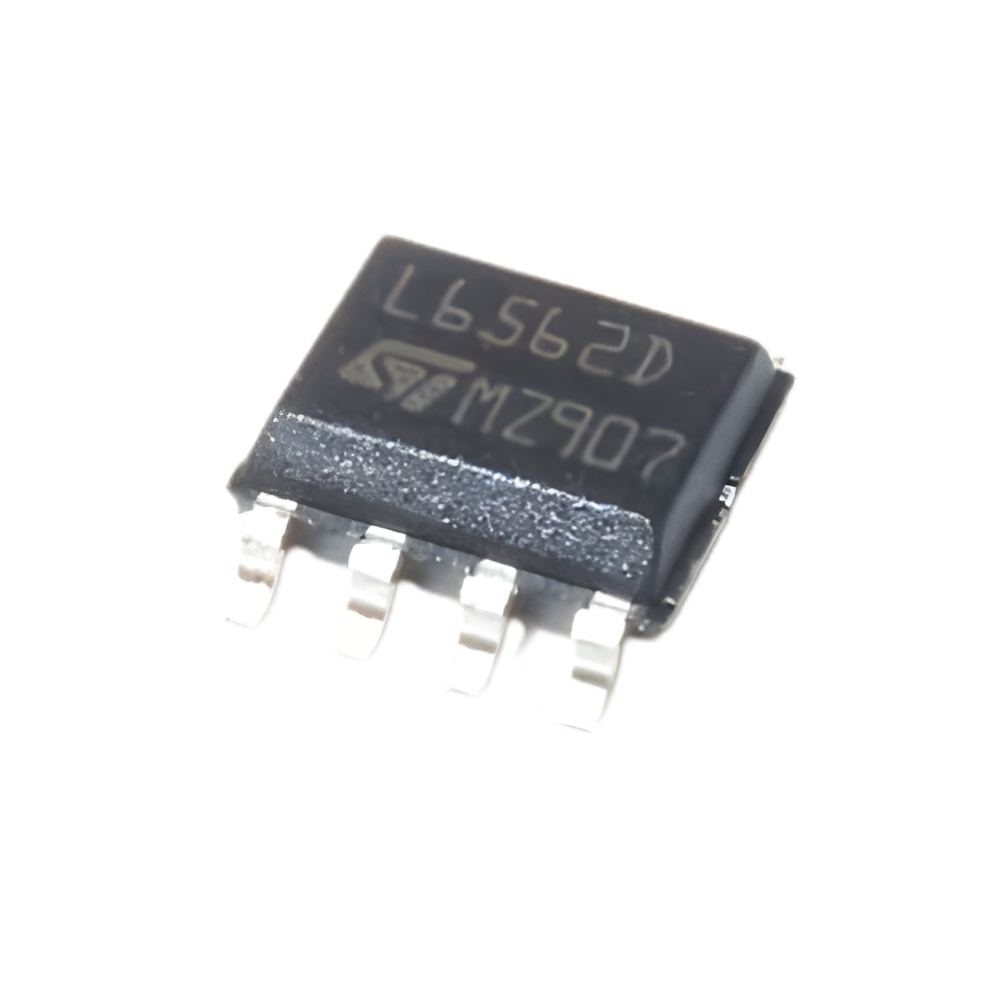

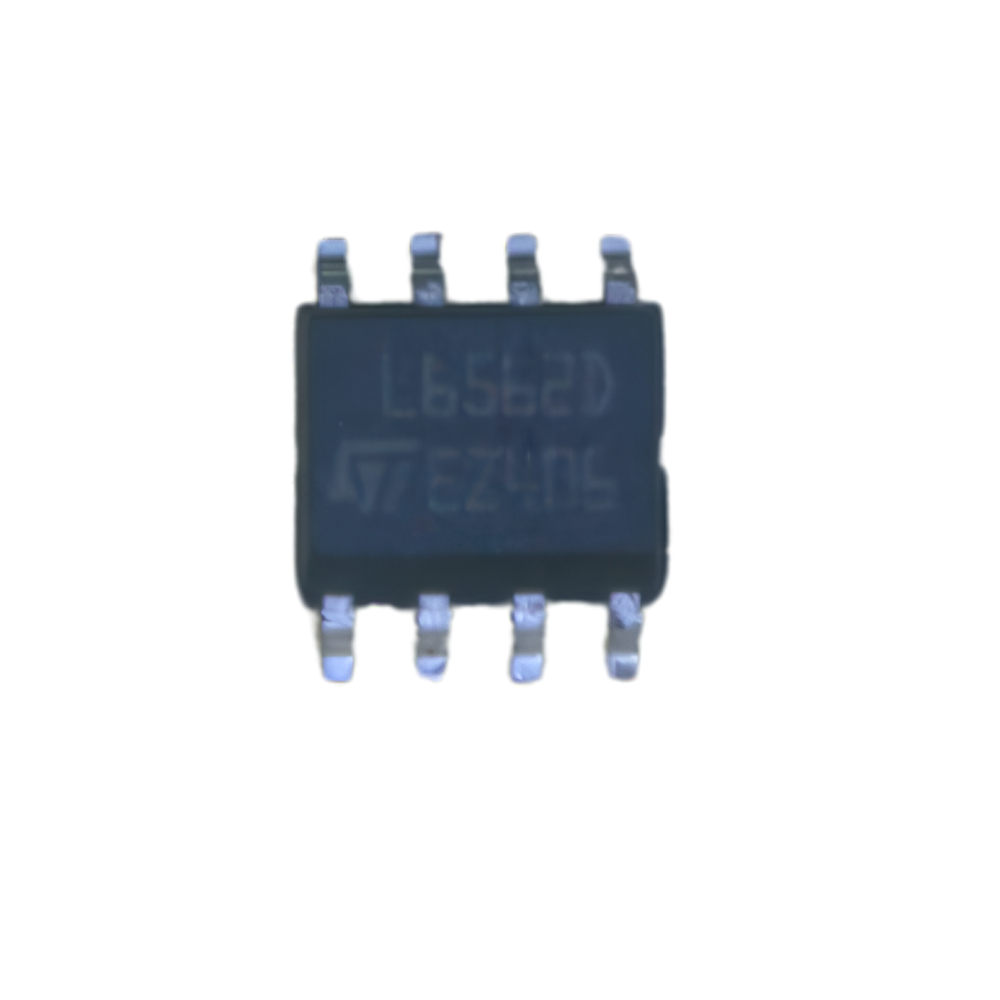

L6562D Transition-Mode PFC Controller IC (SO-8 Package)
Upgrade your power electronics projects with the L6562D, a high-performance Transition-Mode (TM) Power Factor Correction (PFC) Controller IC designed to improve efficiency, reduce harmonic distortion, and meet international power standards. Ideal for SMPS, LED drivers, adapters, and power supplies, this IC delivers stable, efficient, and reliable PFC control in a compact SO-8 package.
⭐ Key Features & Highlights
- ⚡ Transition-Mode (TM) PFC Control – Optimizes efficiency across load conditions
- 🔌 High Power Factor – Achieves near-unity PF with low THD
- 📉 Low Power Consumption – Improves overall system efficiency
- 🛡️ Built-in Protection – Over-voltage, under-voltage lockout & current limiting
- 🔄 Frequency Foldback – Enhanced light-load efficiency
- 📦 Compact SO-8 Package – Saves PCB space and simplifies layout
- 🧠 Wide Input Voltage Range – Suitable for universal AC inputs
🛠️ Why Choose the L6562D?
- ✔️ Helps comply with IEC61000-3-2 harmonic standards
- ✔️ Reduces stress on input components
- ✔️ Improves efficiency of downstream DC-DC stages
- ✔️ Proven reliability for long-term operation
📋 Technical Specifications Table
| Parameter | Details |
|---|---|
| IC Type | Transition-Mode PFC Controller |
| Model | L6562D |
| Package | SO-8 |
| Operating Voltage (Vcc) | 10V – 20V (typical) |
| Control Method | Transition Mode (TM) |
| Switching Frequency | Variable (load dependent) |
| Start-up Current | Very Low |
| Protection Features | OVP, UVLO, Current Limit |
| Application Type | AC-DC Power Supplies |
| Mounting Type | Surface Mount (SMD) |
| Operating Temperature | Industrial Grade |
🔧 Applications
- 🔋 SMPS (Switch Mode Power Supplies)
- 💡 LED Drivers & LED Power Supplies
- 🔌 AC-DC Adapters & Chargers
- 📺 TV Power Boards & Industrial Power Units
- 🏭 Industrial & Commercial Power Systems
📦 Package Information
- SO-8 SMD Package
- Suitable for automated assembly
- Ideal for compact PCB designs
🎯 Who Should Buy This?
- 👨🔧 Electronics Technicians & Repair Professionals
- 👨💻 Power Electronics Engineers
- 🧪 R&D Labs & Educational Institutes
- 🛠️ DIY Electronics Enthusiasts
