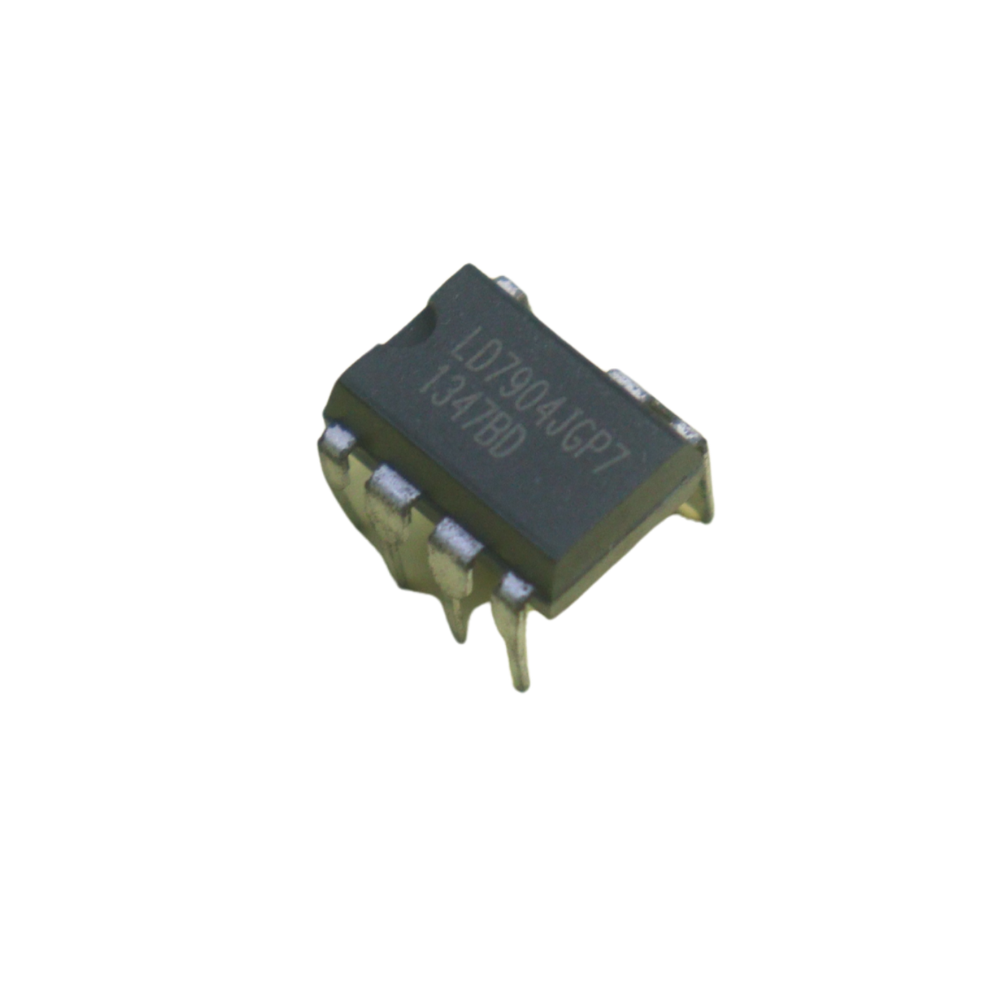

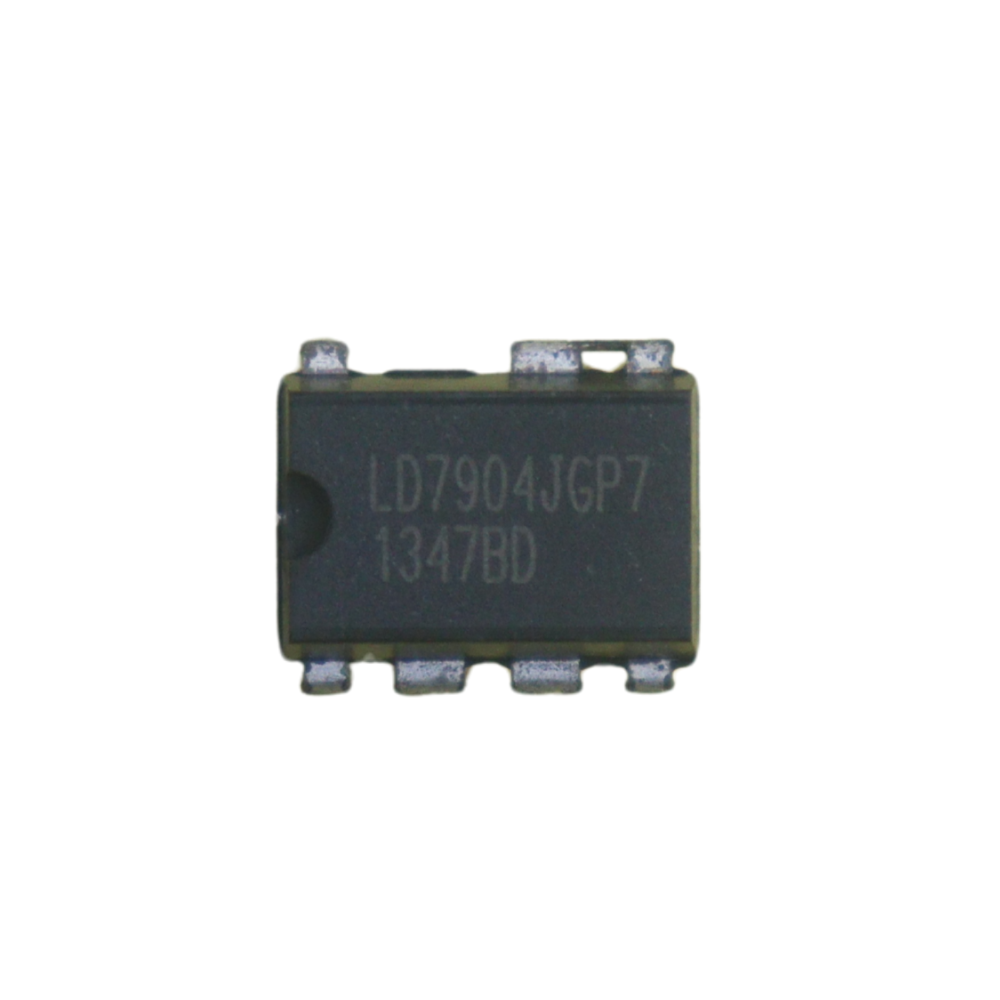

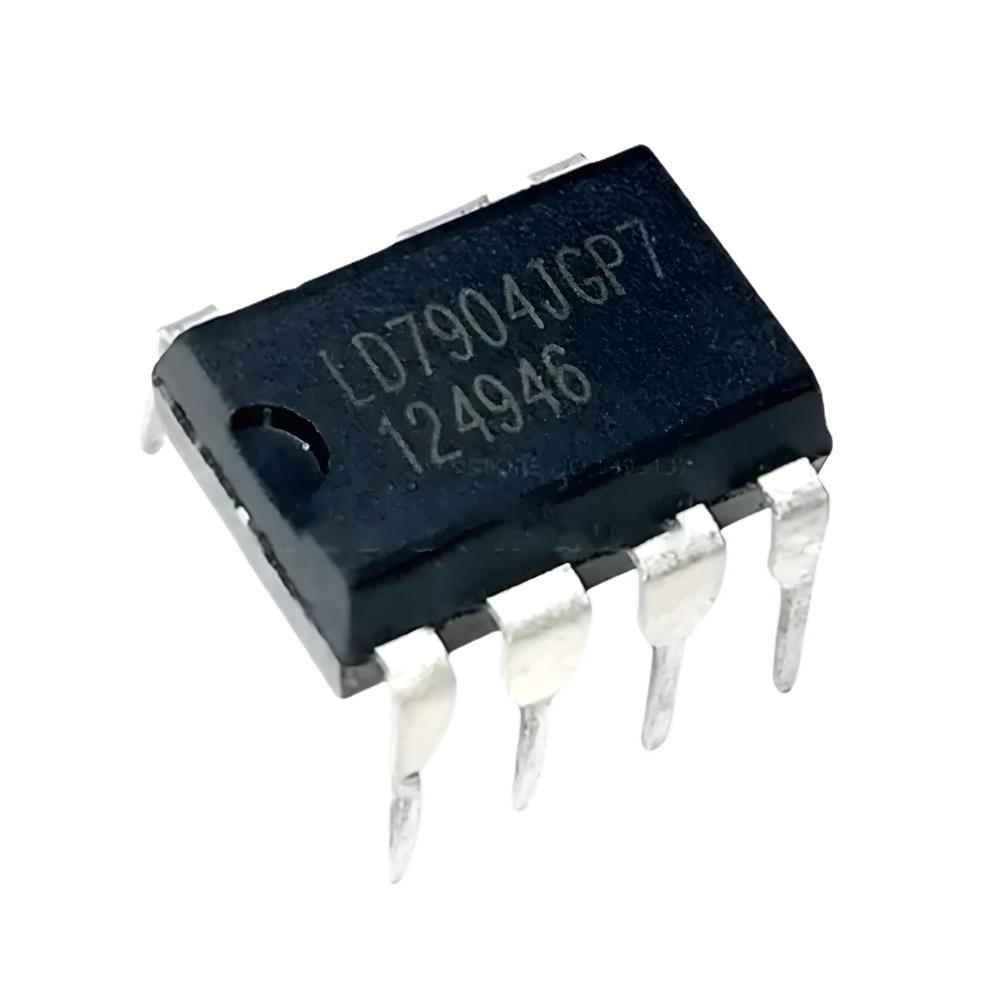

LD7904 PWM Power IC DIP-6

The LD7904JGP7  is a PWM (Pulse Width Modulation) Power Controller IC mainly used in SMPS (Switch Mode Power Supply) circuits.

👉 This IC controls the switching of power MOSFETs to regulate output voltage efficiently.
👉 If your LED TV, power adapter, or SMPS board is dead or not starting, this IC is often one of the main faulty components.

💡 In simple words:
It acts like the “brain” of the power supply, controlling how electricity flows and ensuring stable output.

🔥 Key Features & Highlights

• ⚡ High-Performance PWM Controller IC – Designed for efficient SMPS power regulation
• 🔌 Widely Used in Power Supply Circuits – Ideal for LED TVs, adapters, chargers & SMPS boards
• 🛠️ Perfect for Repairing Work – Best choice for technicians fixing dead power or no-output issues
• 📦 DIP-6 Package – Easy to solder and replace (through-hole type)
• 🔄 Stable Switching Operation – Ensures consistent voltage output and protection
• 💡 Energy Efficient Design – Reduces power loss and improves overall efficiency
• 🔧 Common Replacement IC – Compatible with many generic PWM controller applications

📊 Technical Specifications
