Description

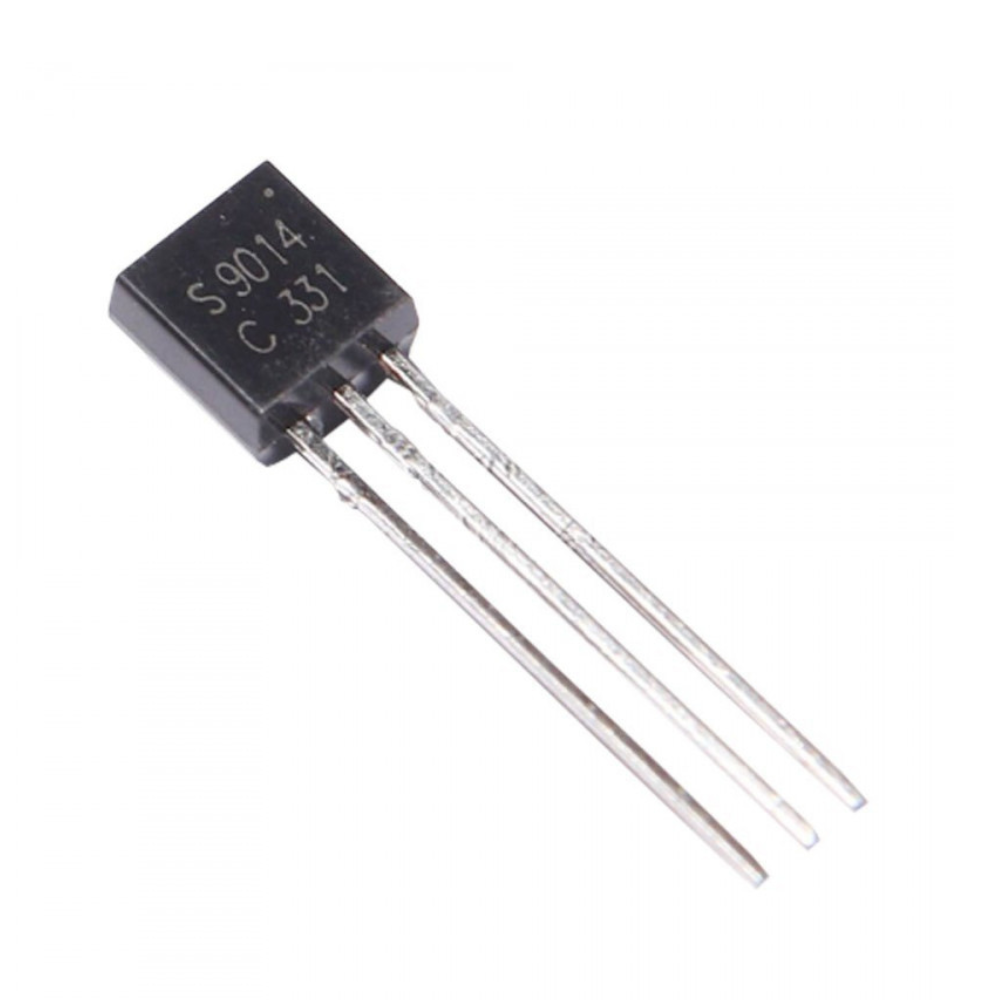

S9014 NPN bipolar junction Transistor
The S9014 NPN Bipolar Junction Transistor is a high-performance, low-noise transistor widely used in signal amplification, switching circuits, and DIY electronics projects.
Perfect for students, hobbyists, technicians, and professional circuit designers, this transistor delivers stable performance, high gain, and excellent reliability in small-signal applications.
Whether you’re repairing a gadget or building a new circuit, the S9014 ensures smooth operation and long-lasting durability.
⭐ Key Features & Benefits:
- 🔧 NPN Silicon Transistor — ideal for low-power electronic applications
- 📶 High DC Current Gain (HFE) — delivers strong amplification
- 🎧 Low Noise — perfect for audio and signal processing circuits
- ⚡ Low Collector-Emitter Saturation Voltage — improves switching efficiency
- 🔥 Good Thermal Stability — works smoothly in various conditions
- 📐 Compact TO-92 Package — easy to use on breadboards & PCBs
- 🛠️ Widely Compatible — suitable for FM radios, audio devices, toys, LED drivers, and more
- 🧪 Perfect for DIY Projects & Repairs — stable, reliable, and budget-friendly
📊 Technical Specifications (Table Format):
| Parameter | Value |
|---|---|
| Type | NPN Bipolar Junction Transistor |
| Package | TO-92 |
| Collector–Emitter Voltage (Vceo) | 50V |
| Collector–Base Voltage (Vcbo) | 50V |
| Emitter–Base Voltage (Vebo) | 5V |
| Collector Current (Ic max) | 100mA |
| DC Current Gain (HFE) | 64 – 300 |
| Power Dissipation (Ptot) | 400mW |
| Transition Frequency (ft) | 100 MHz |
| Operating Temperature | -55°C to +150°C |
| Material | Silicon |
🧰 Applications:
- 🔊 Audio signal amplification
- 📻 FM/AM radio circuits
- 💡 LED drivers & control circuits
- 🔁 Switching circuits for microcontrollers
- 📡 RF circuits and small signal processing
- 🧒 School & college DIY electronics projects
- 🔋 Battery-powered gadgets & toys
- 🔧 Electronics repairing & prototyping
🛒 Why Buy From Us?
- ✔️ Tested & verified components
- ✔️ High-quality, original S9014 transistors
- ✔️ Best for electronics shops, technicians & students
- ✔️ Fast delivery & safe packaging
