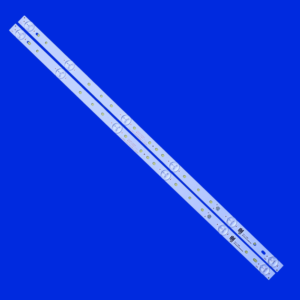

JJ-0680-D32030601EM 32 Inch LED TV Backlight Strips | 3V 6LED 2W | 567mm Length | 2 Pcs Set (CNL535)
Original price was: ₹999.00.₹699.00Current price is: ₹699.00.
Samsung 40 Inch LED TV Backlight Strip Set – LM41-00090Y 13LED (2pcs Curved) + LM41-00090X 12LED (1pc Straight) | 3pcs Set
Original price was: ₹1,999.00.₹1,649.00Current price is: ₹1,649.00.
- Samsung 40 inch backlight strip
- LM41-00090X, LM41-00090Y
- 2014SVS_40_MEGA_3228
- Samsung LED TV backlight
- 13 LED strip Samsung
- 12 LED backlight strip
- Samsung TV repair parts
- LED TV backlight replacement
- curved LED strip Samsung
- TV panel backlight kit
- Samsung SVS 40 mega strip
- LED TV technician spare parts
- Samsung backlight original code
In stock
Description

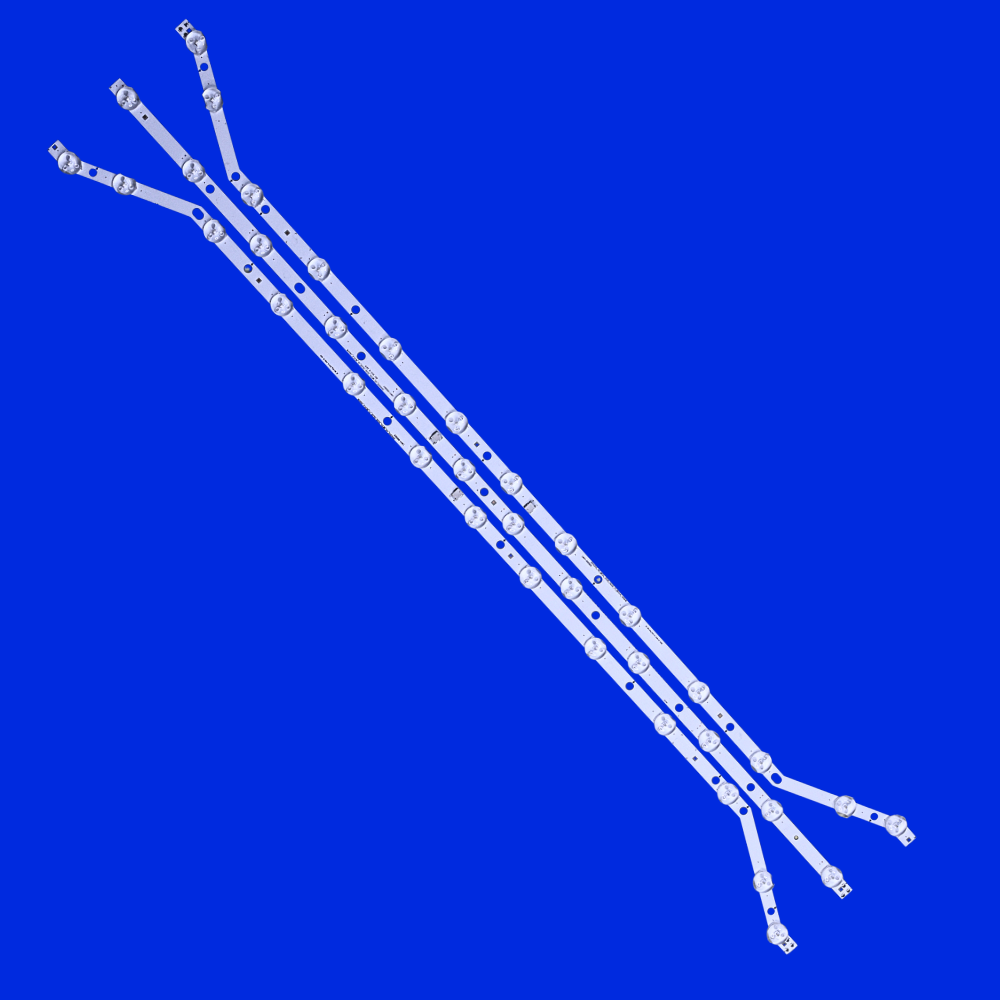

Samsung 40 Inch LED TV Backlight Strip Set – LM41-00090Y 13LED (2pcs Curved) + LM41-00090X 12LED (1pc Straight) | 3pcs Set
This backlight strip set is specially designed for Samsung 40-inch LED TVs using SVS_40_MEGA_3228 series panels.
From your attached images, the strip clearly shows:
- ✅ Wide Lens LED (high brightness focus type)

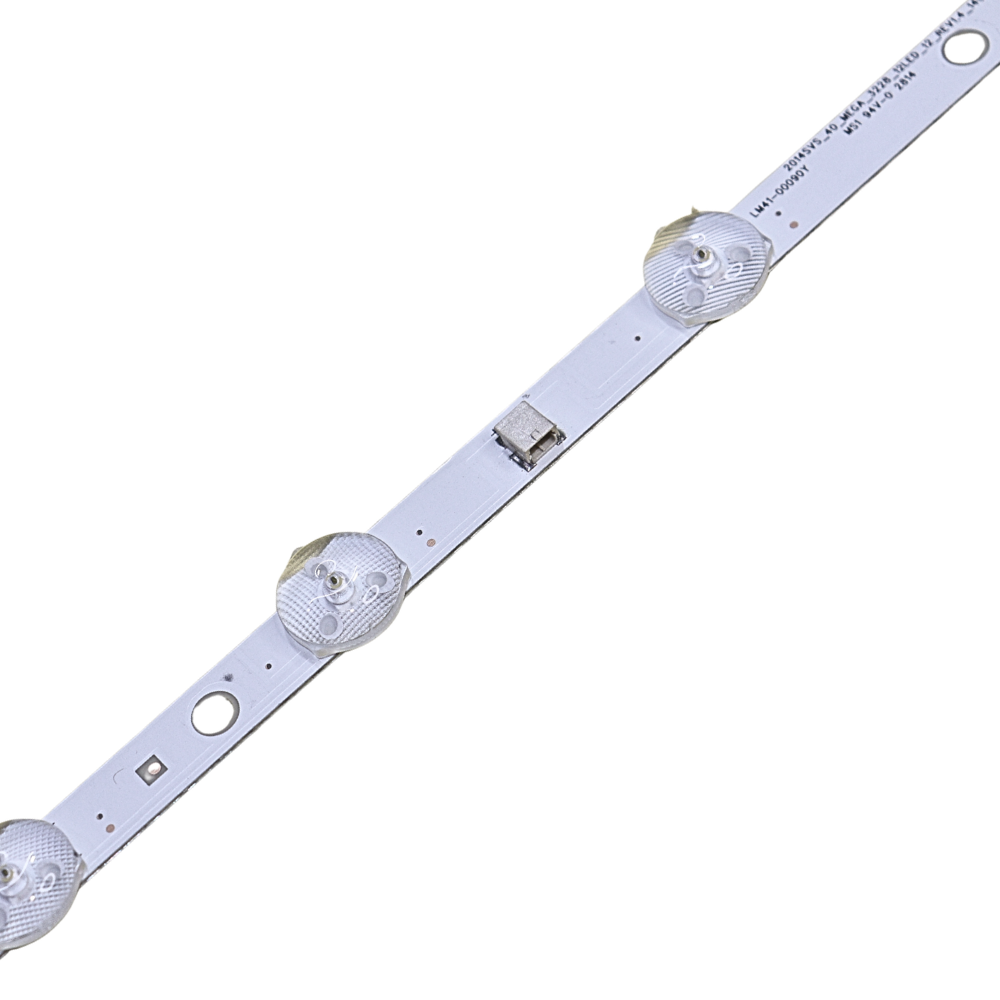

- ✅ Original Samsung PCB marking (LM41-00090X / LM41-00090Y)
- ✅ Precise hole alignment for chassis fitting
- ✅ Curved + straight mixed configuration (important for panel design)
👉 This ensures 100% compatibility when matching the same code.
🔥 Key Features (Based on Original Marking)
- 💡 Original Code Matching –

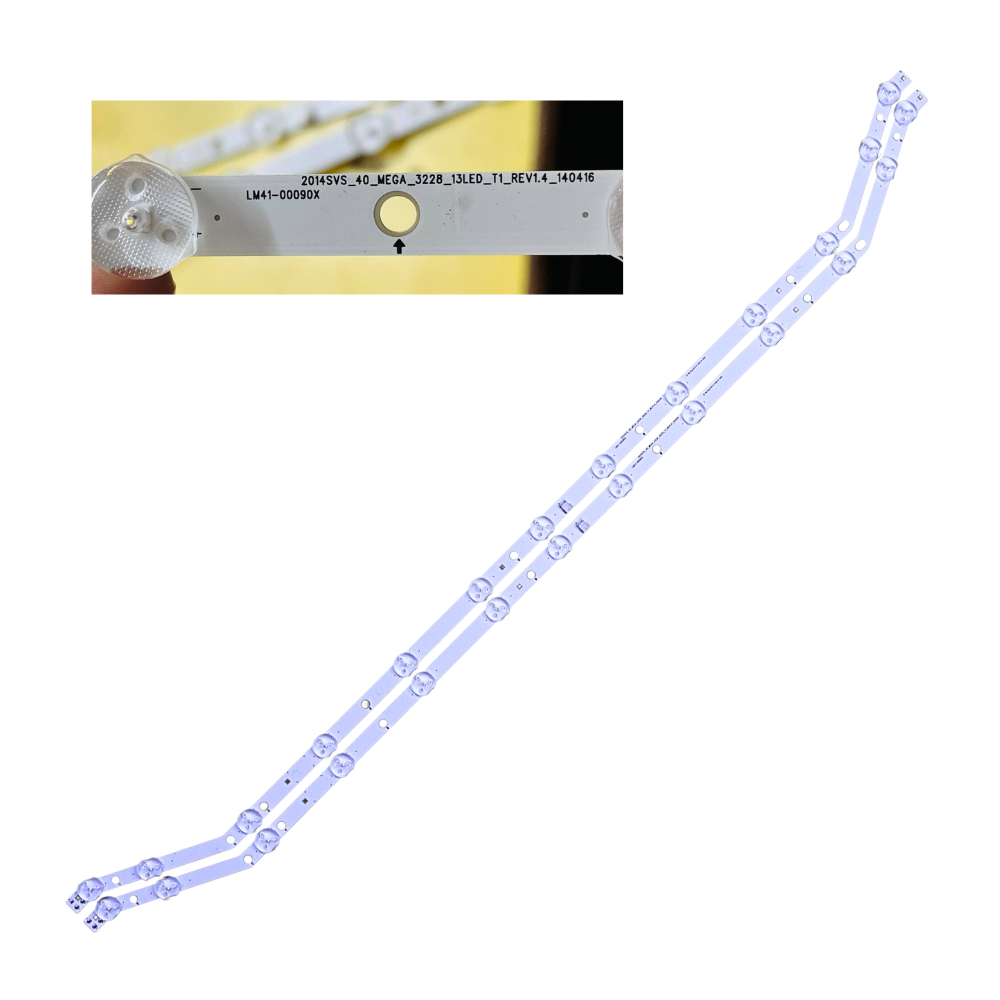

✔️ 13LED Strip: LM41-00090X / 2014SVS_40_MEGA_3228_13LED_T1_REV1.4

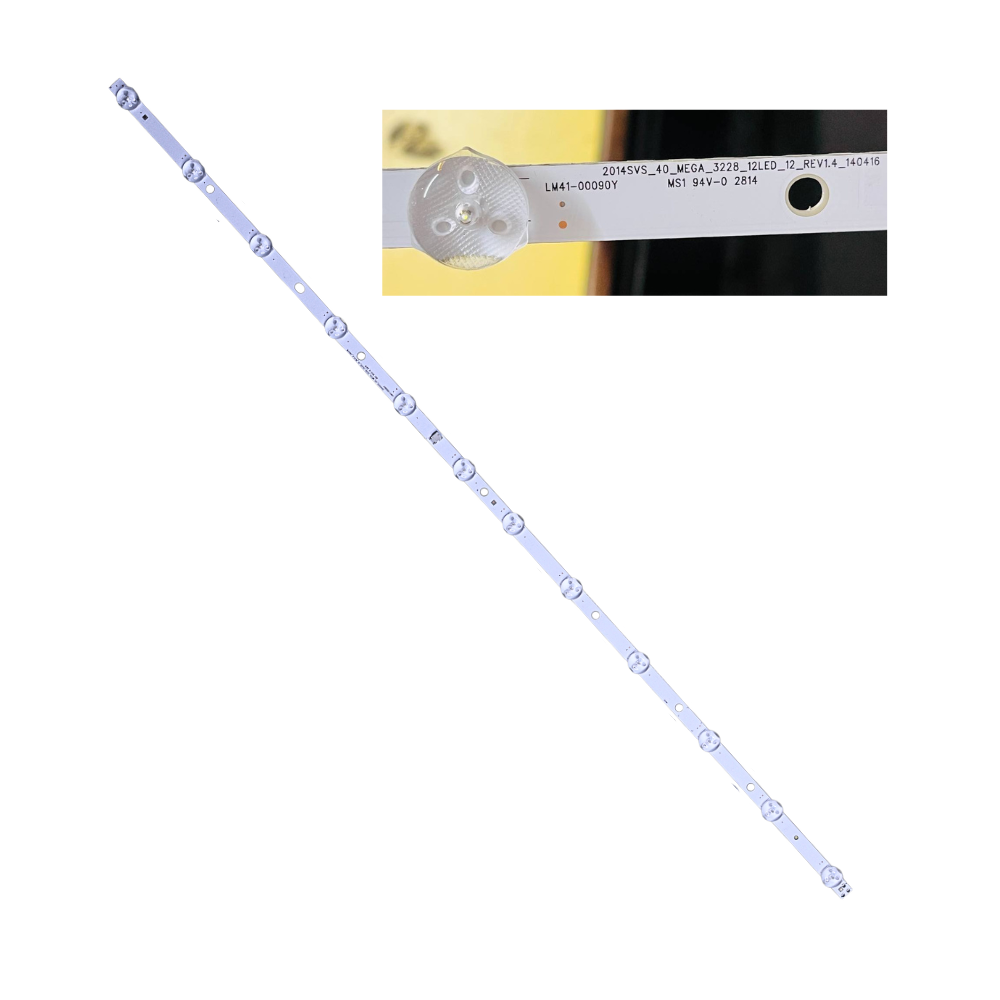

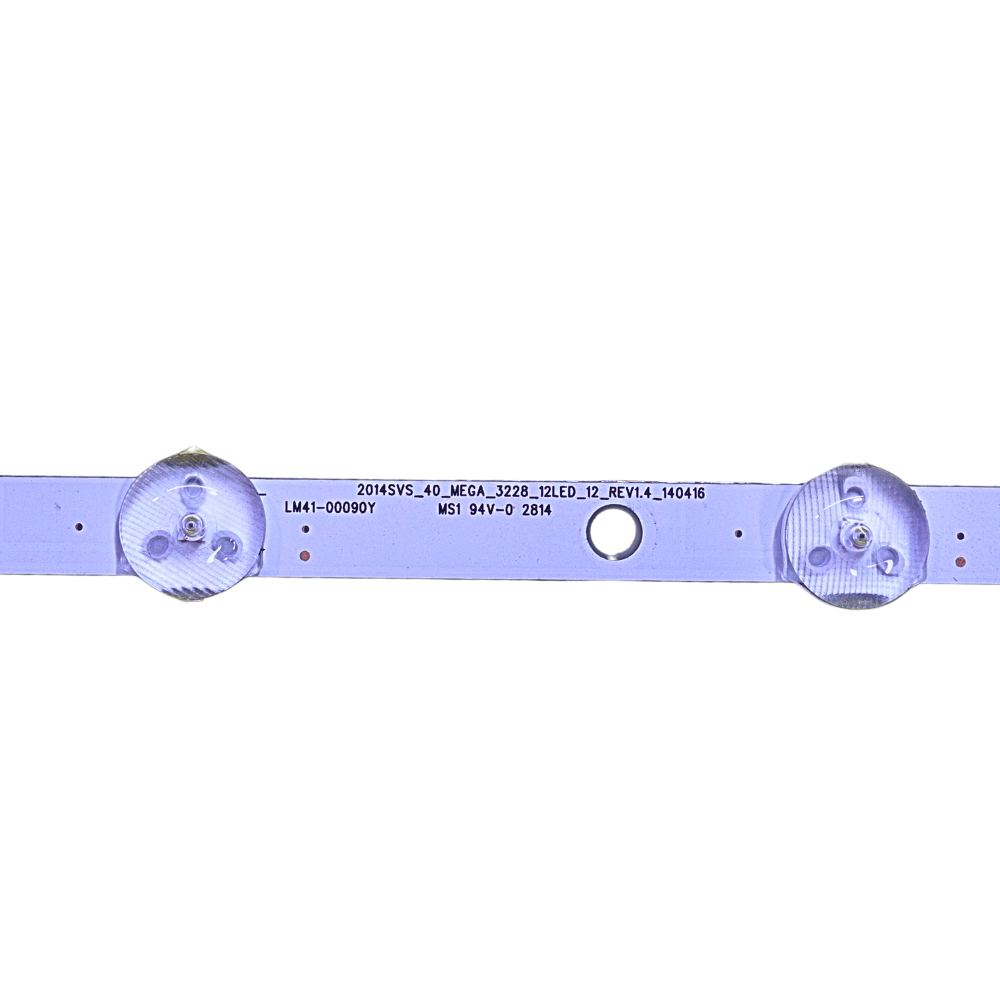

✔️ 12LED Strip: LM41-00090Y / 2014SVS_40_MEGA_3228_12LED_12_REV1.4 - 📦 Complete Set Combination
✔️ 2pcs Curved 13 LED Strips
✔️ 1pc Straight 12 LED Strip - 📺 Perfect for Samsung 40 Inch Panels (SVS_40_MEGA Series)
- 🔆 High Brightness Lens LEDs (Wide Diffuser Type)

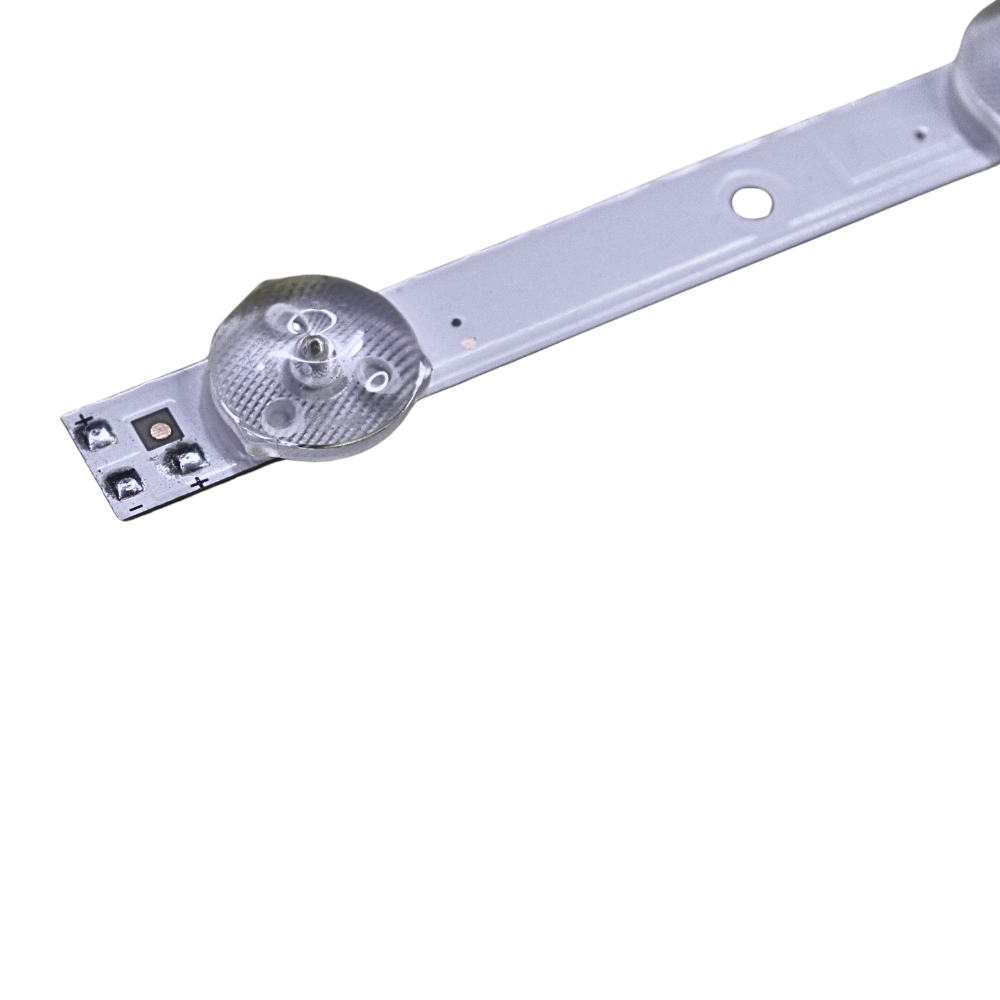

- 🔧 Exact Replacement – Same Hole, Same Connector, Same Layout
- ⚡ Energy Efficient & Long Life LEDs
📊 Technical Specifications Table
| Feature | Details |
|---|---|
| Brand Compatibility | Samsung |
| TV Size Support | 40 Inch |
| Strip Model (13 LED) | LM41-00090X |
| Strip Model (12 LED) | LM41-00090Y |
| PCB Code | 2014SVS_40_MEGA_3228 |
| LED Count | 13 LED (Curved) + 12 LED (Straight) |
| Strip Type | Curved + Straight Combination |
| Lens Type | Big Lens Diffuser |
| Voltage | 3V per LED (Typical) |
| Material | Aluminum PCB |
| Condition | Brand New |
| Installation | Technician Recommended |
⚠️ Common Problems It Solves
- 🔇 Sound OK but No Display
- 🌑 Half Screen Dark
- 🔅 Low Brightness / Flickering
- ⚡ Backlight Not Turning ON
💡 Replacing this set restores full panel brightness and uniform light distribution.
🔧 Applications
- 📺 Samsung 40” LED TV Backlight Replacement
- 🛠️ LED TV Repair Shops & Technicians
- 🔄 Panel Backlight Restoration
- 🧑🔧 Advanced DIY Repair (Experts Only)
⚠️ Important Instructions
- 🔍 Must match code: LM41-00090X / LM41-00090Y before buying
- 📏 Do not rely only on TV size (40 inch)
- ⚡ Use LED tester before full installation
- 🧰 Handle lens carefully (very sensitive)
📦 What You Will Receive
- ✔️ 2 × Curved Backlight Strips (13 LEDs each)
- ✔️ 1 × Straight Backlight Strip (12 LEDs)
- ✔️ Total: 3 Pieces Complete Set
🎯 Why This Product is Best Choice
- ✔️ Based on Original Samsung Strip Code
- ✔️ Perfect Curved + Straight Combination Set
- ✔️ No modification required
- ✔️ Best for professional repair work
- ✔️ Tested Quality with stable brightness
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 80 × 3 × 3 cm |
