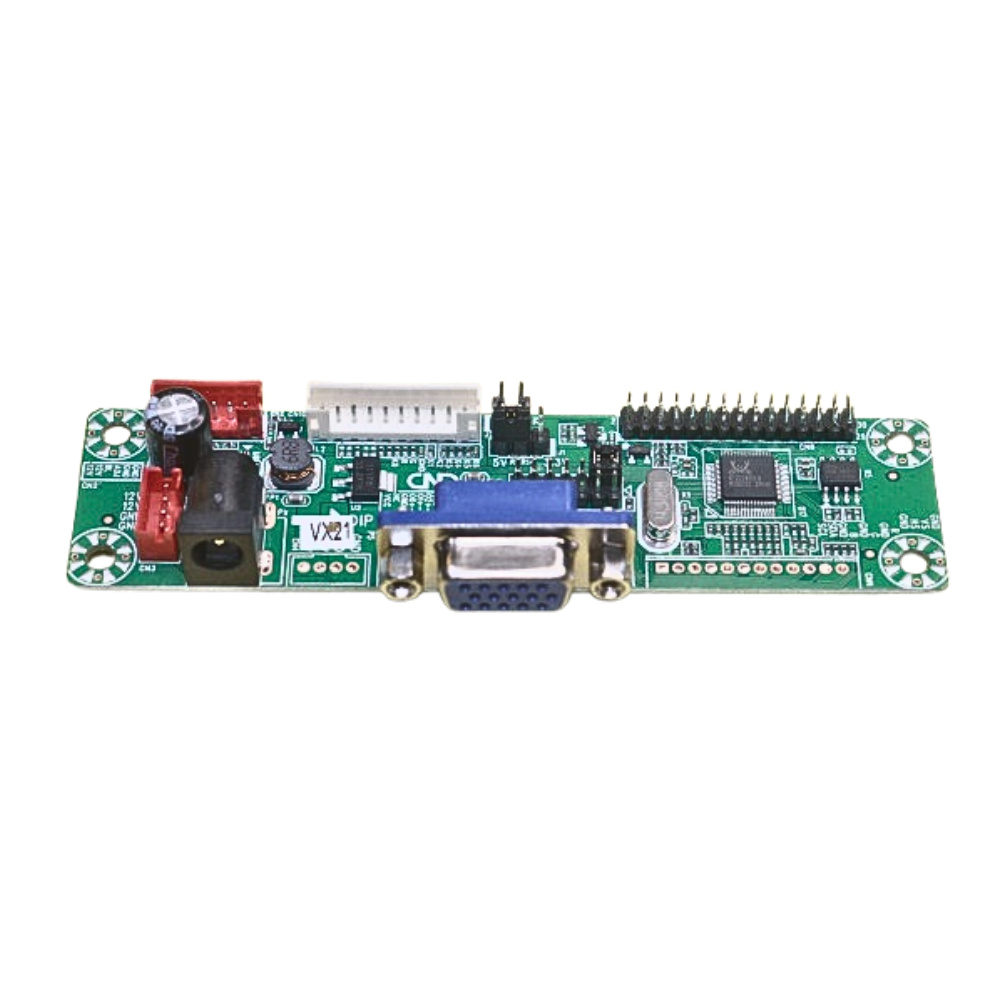

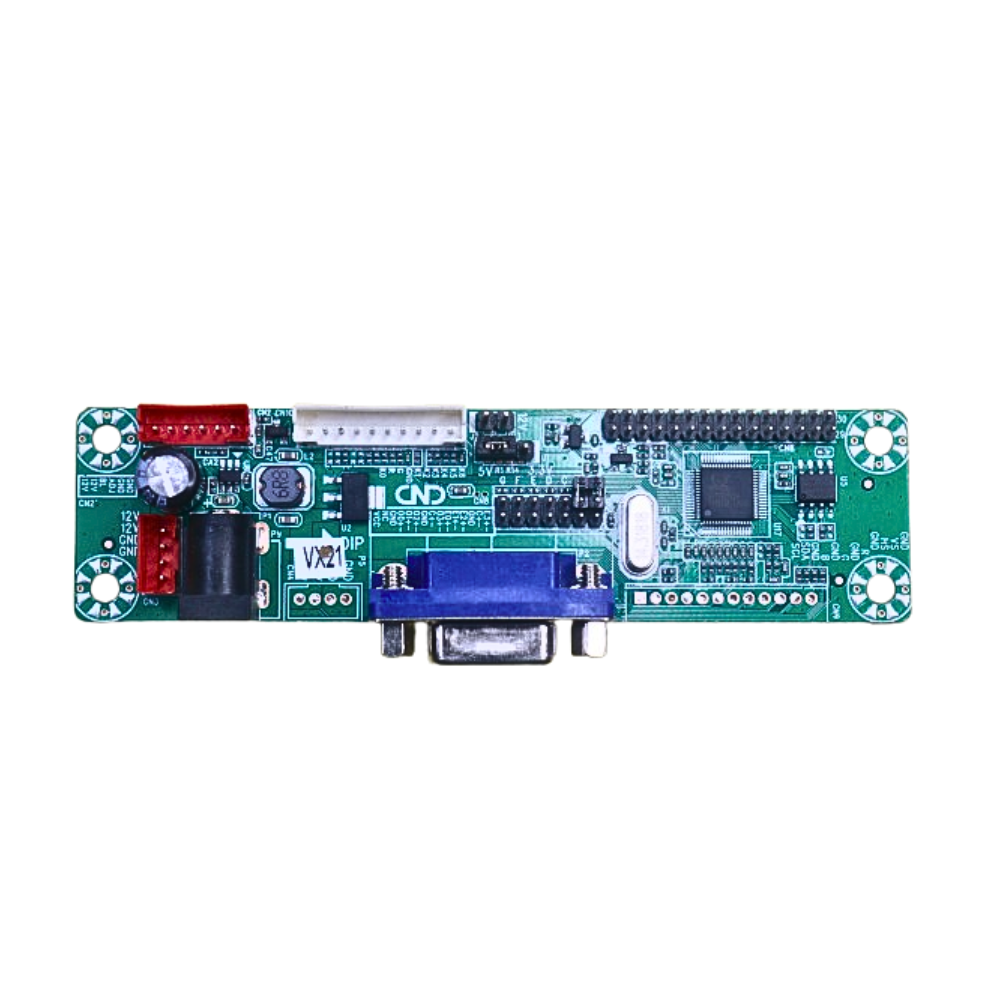

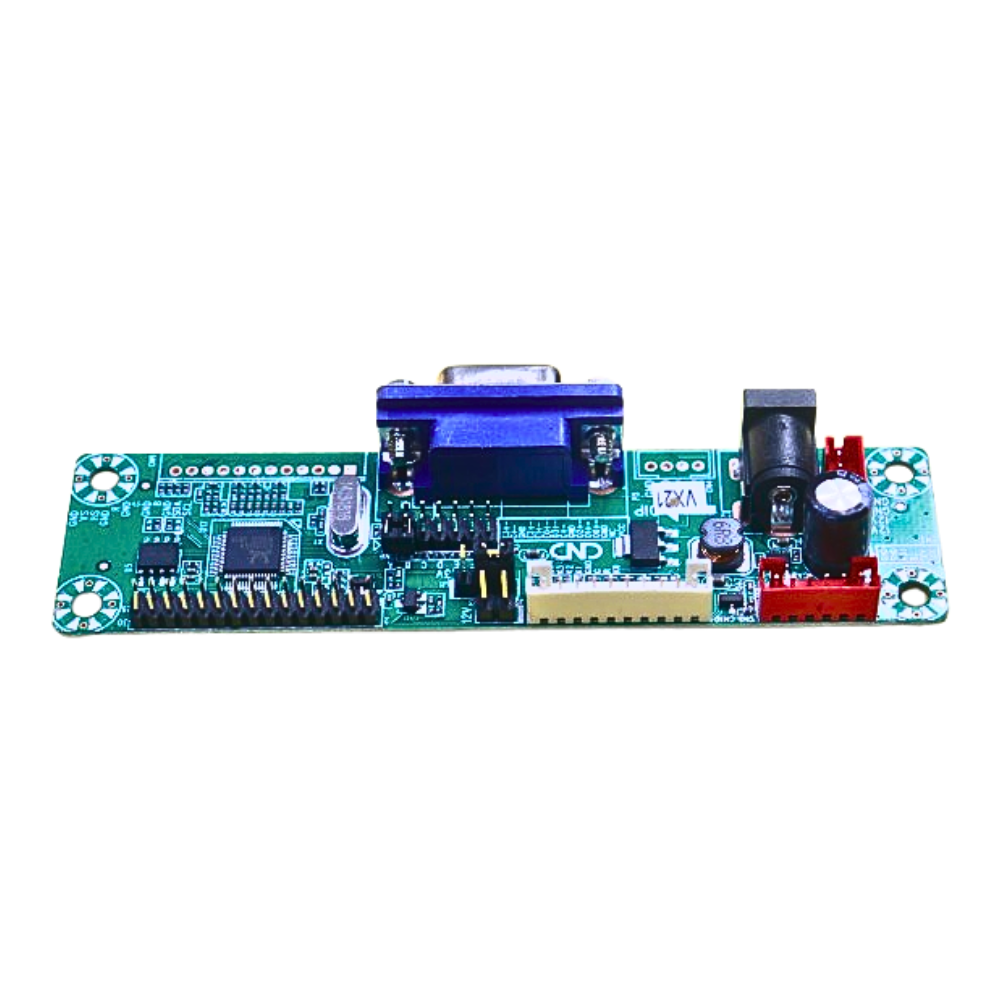

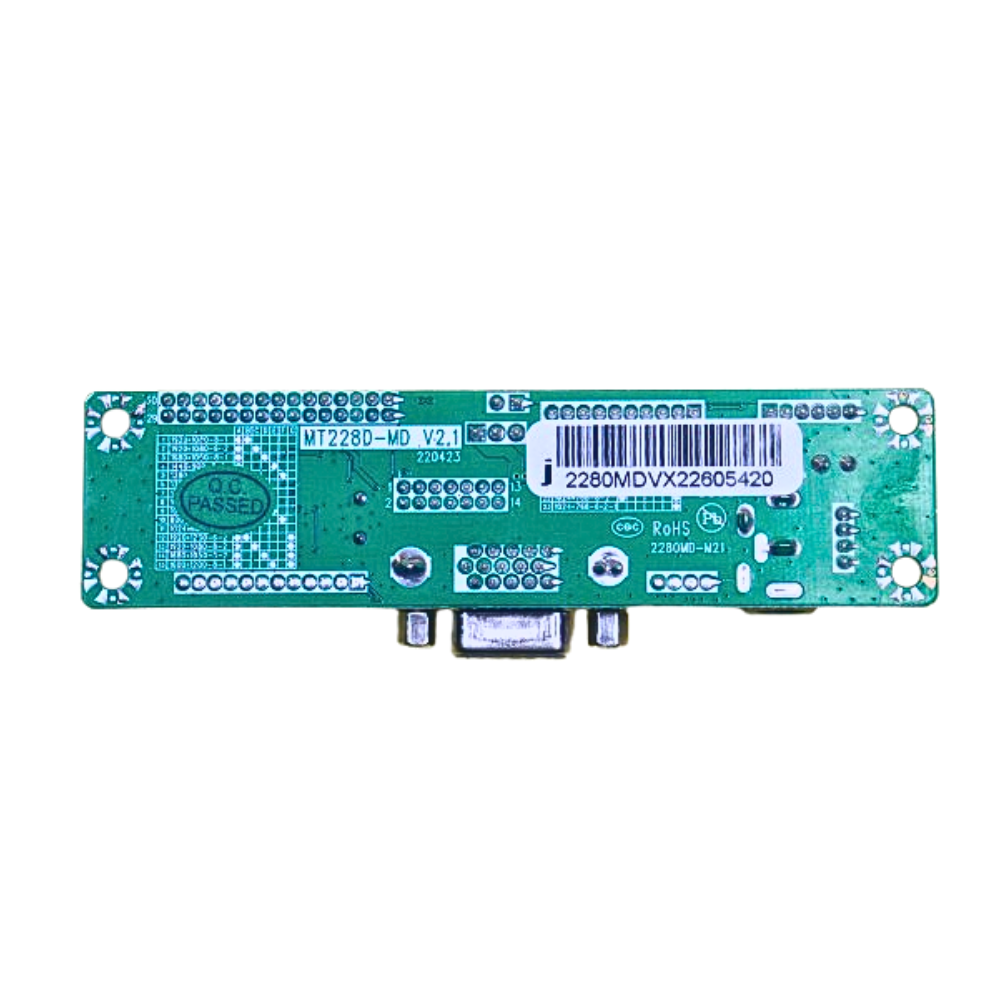

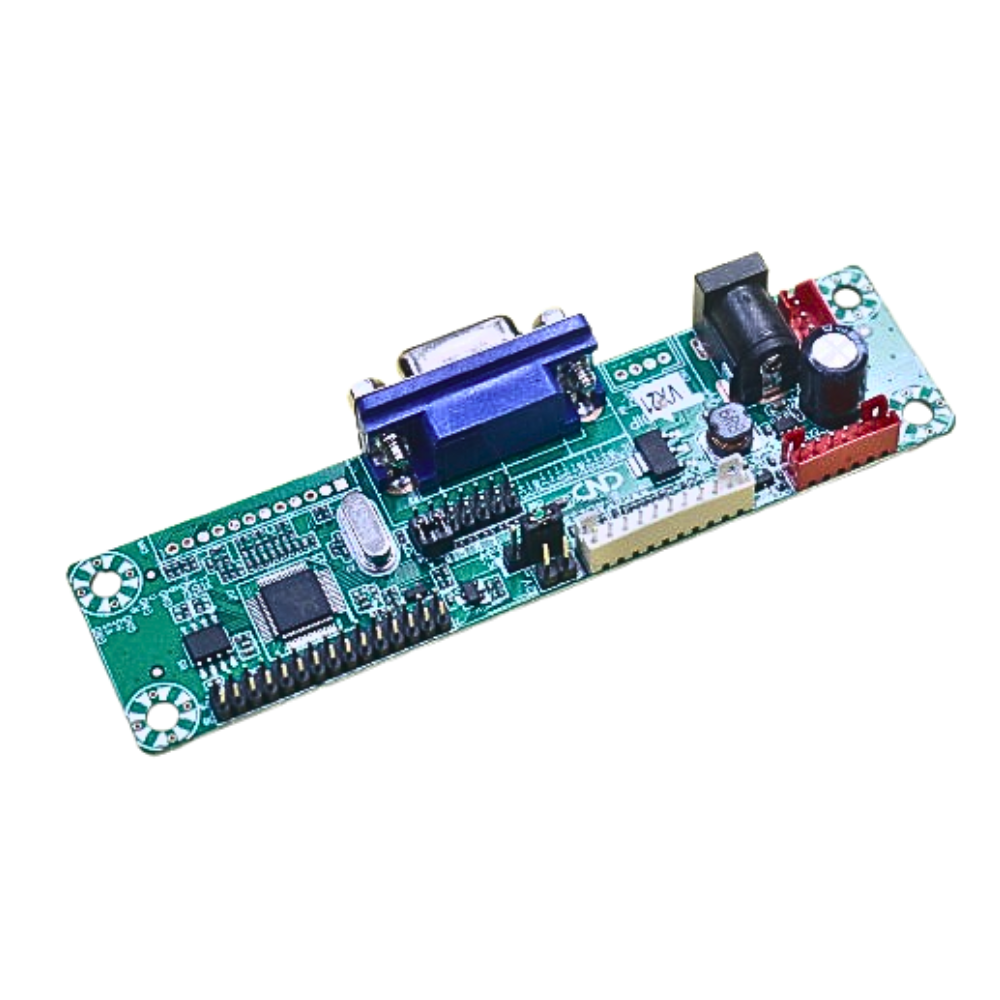

Universal Monitor Controller Board – Supports LCD/LED Panels with VGA Input | 23 Resolutions with Multiple Bit Rates
Upgrade or repurpose your LCD/LED screens effortlessly with this Universal Monitor Controller Board featuring VGA input support. Ideal for repairing monitors or converting laptop screens into external displays, this controller board supports 23 different resolutions and multiple bit-rate LCD/LED panels, making it highly versatile for various display applications.
Designed for hobbyists, technicians, and DIY enthusiasts, it ensures easy compatibility and reliable performance for a wide range of screen types. Whether you’re repairing a desktop monitor or building a custom display system, this board is a dependable choice.
📦 Key Features:
-
✅ VGA Input Support – Connect to computers, Raspberry Pi, DVRs, or other VGA-enabled devices.
-
✅ Wide Panel Compatibility – Supports 23 resolutions from 1024×768 to 1920×1080.
-
✅ 7 Jumper Settings (A–G) – Select the correct resolution for your panel easily.
-
✅ Adjustable Panel Voltage – Choose between 3.3V, 5V, or 12V for compatibility with various screen types.
-
✅ Plug-and-Play Installation – Simple jumper-based setup. No software flashing needed.
-
✅ Great for DIY Projects – Turn an old laptop screen into a secondary monitor or custom display.
Panel Voltage Selection:
| Jumper Setting | Voltage |
|---|---|
| JP1 | 3.3V |
| JP2 | 5V |
| JP3 | 12V |
Resolution Support Table:
| SL NO | Resolution | Jumper Setting | Bit Rate |
|---|---|---|---|
| 1 | 1920×1080 | A & B | 8-bit, 1-ch |
| 2 | 1920 x 1080 | A & C | 6-bit, 2-ch |
| 3 | 1680 x 1050 | A & D | 8-bit, 1-ch |
| 4 | 1440 x 900 | A & E | 8-bit, 1-ch |
| 5 | 1280 x 1024 | A & F | 8-bit, 1-ch |
| 6 | 1366 x 768 | B | 8-bit, 1-ch |
| 7 | 1366 x 768 | C | 6-bit, 2-ch |
| 8 | 1024 x 768 | D | 8-bit, 1-ch |
| 9 | 1024 x 768 | E | 6-bit, 2-ch |
| 10 | 800 x 600 | F | 6-bit, 2-ch |
| 11 | 1024 x 600 | A | 8-bit, 1-ch |
| 12 | 1920 x 1200 | A, B & G | 6-bit, 2-ch |
| 13 | 1920 x 1080 | A, C & G | 8-bit, 2-ch |
| 14 | 1680 x 1050 | A, D & G | 6-bit, 2-ch |
| 15 | 1600 x 1200 | A, E & G | 8-bit, 1-ch |
| 16 | 1600 x 900 | A, F & G | 8-bit, 1-ch |
| 17 | 1600 x 900 | B & G | 6-bit, 2-ch |
| 18 | 1440 x 900 | C & G | 6-bit, 2-ch |
| 19 | 1400 x 1050 | D & G | 8-bit, 1-ch |
| 20 | 1280 x 1024 | E & G | 8-bit, 2-ch |
| 21 | 1280 x 800 | F & G | 6-bit, 2-ch |
| 22 | 1024 x 768 | A & G | 8-bit, 2-ch |
| 23 | 1020 x 768 | G | 6*2-bit, 1-ch |
📝 Note: The complete resolution chart with jumper settings is provided in the product manual or upon request.
Ensure the correct voltage is selected before powering the board to avoid panel damage.
Applications:
-
✅ LCD/LED Monitor Repairs
-
✅ DIY Laptop Screen Conversions
-
✅ Raspberry Pi Display Projects
-
✅ Custom Display Systems
-
✅ CCTV Monitor Integration
What’s in the Box:
-
1 × Universal VGA Controller Board
-

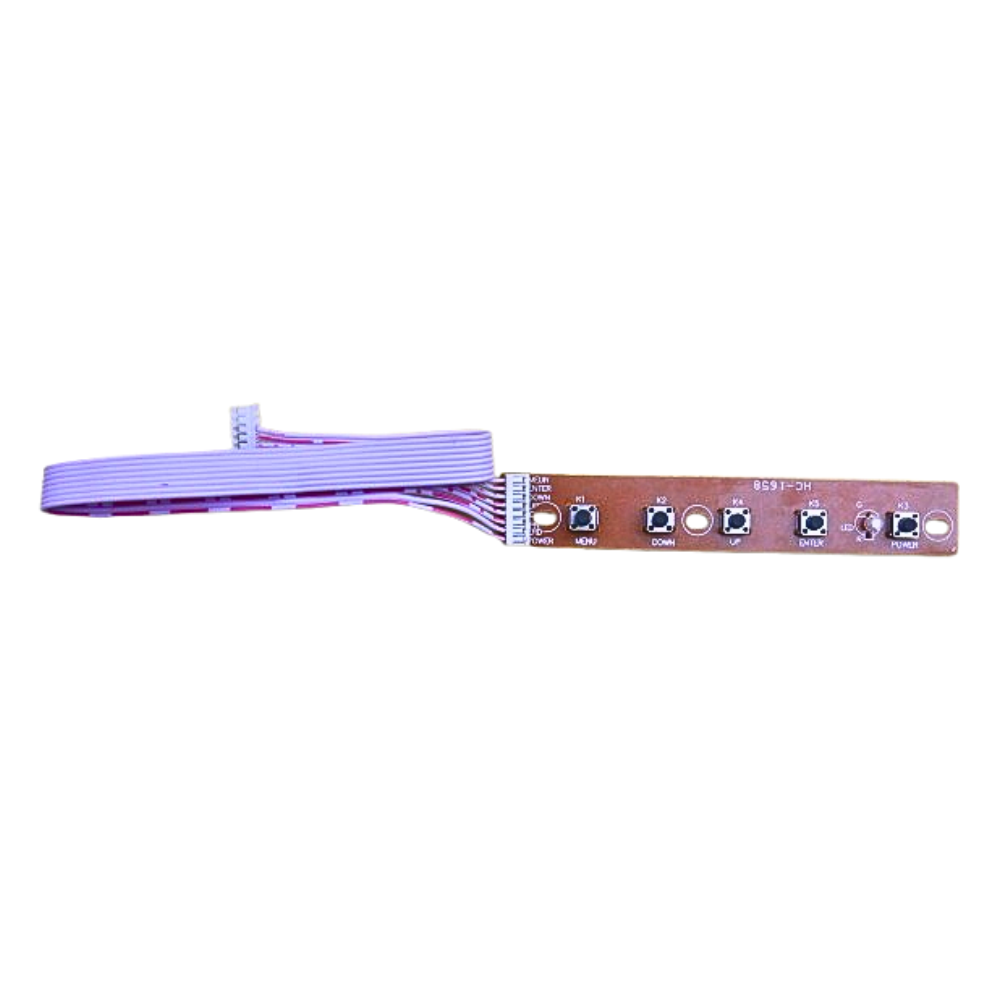

1 × 5-Key Button Control Board
