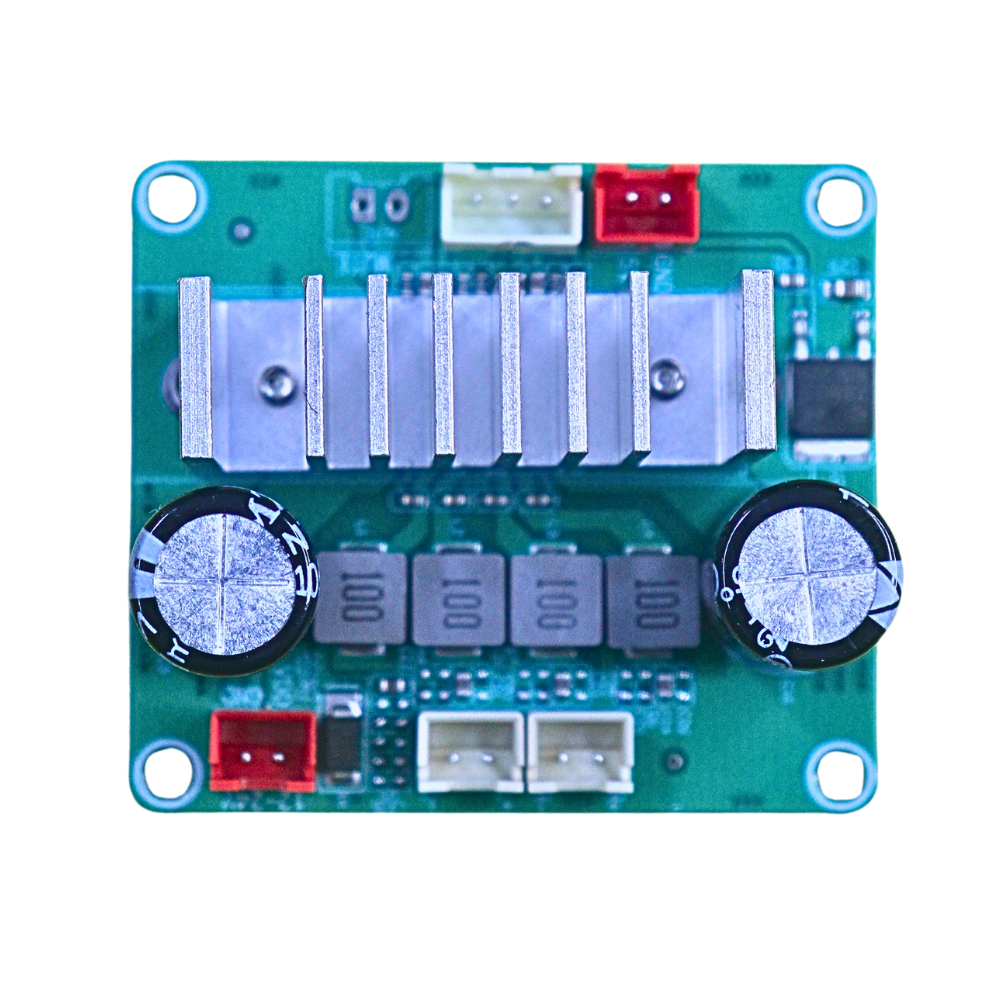

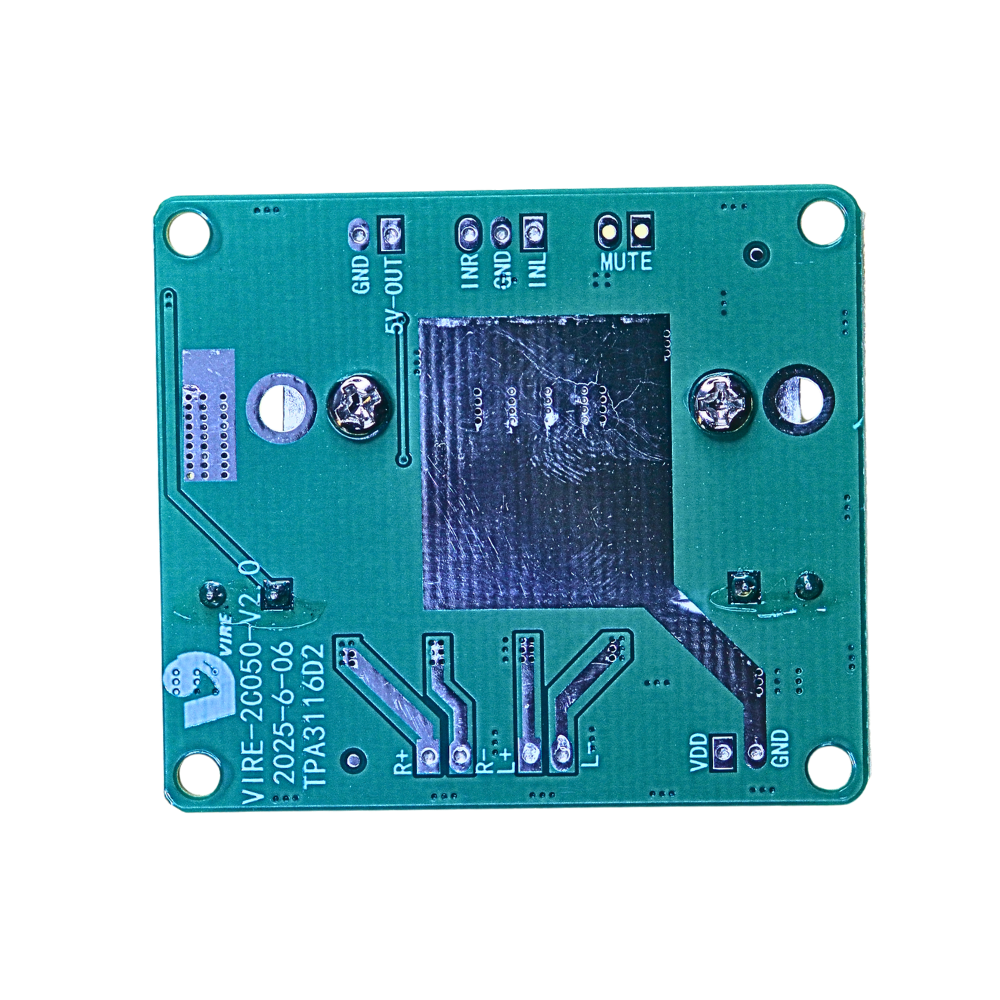

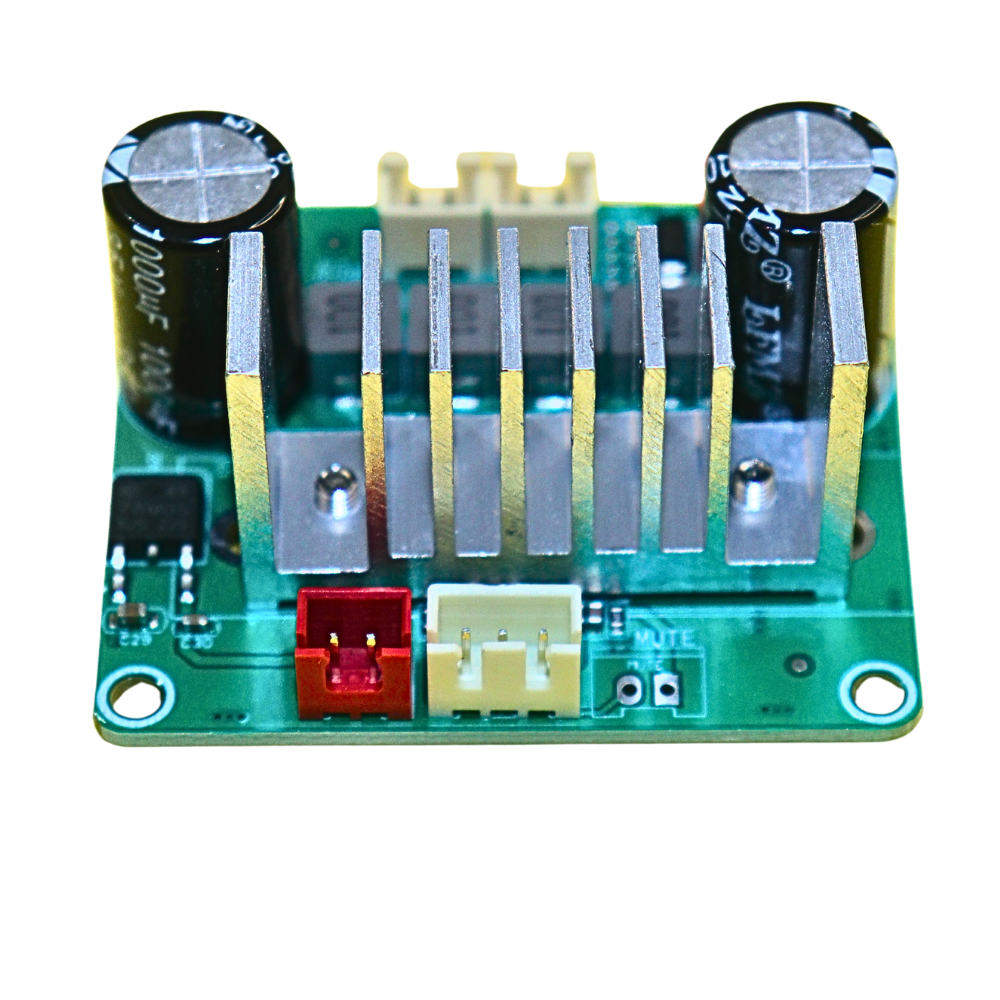

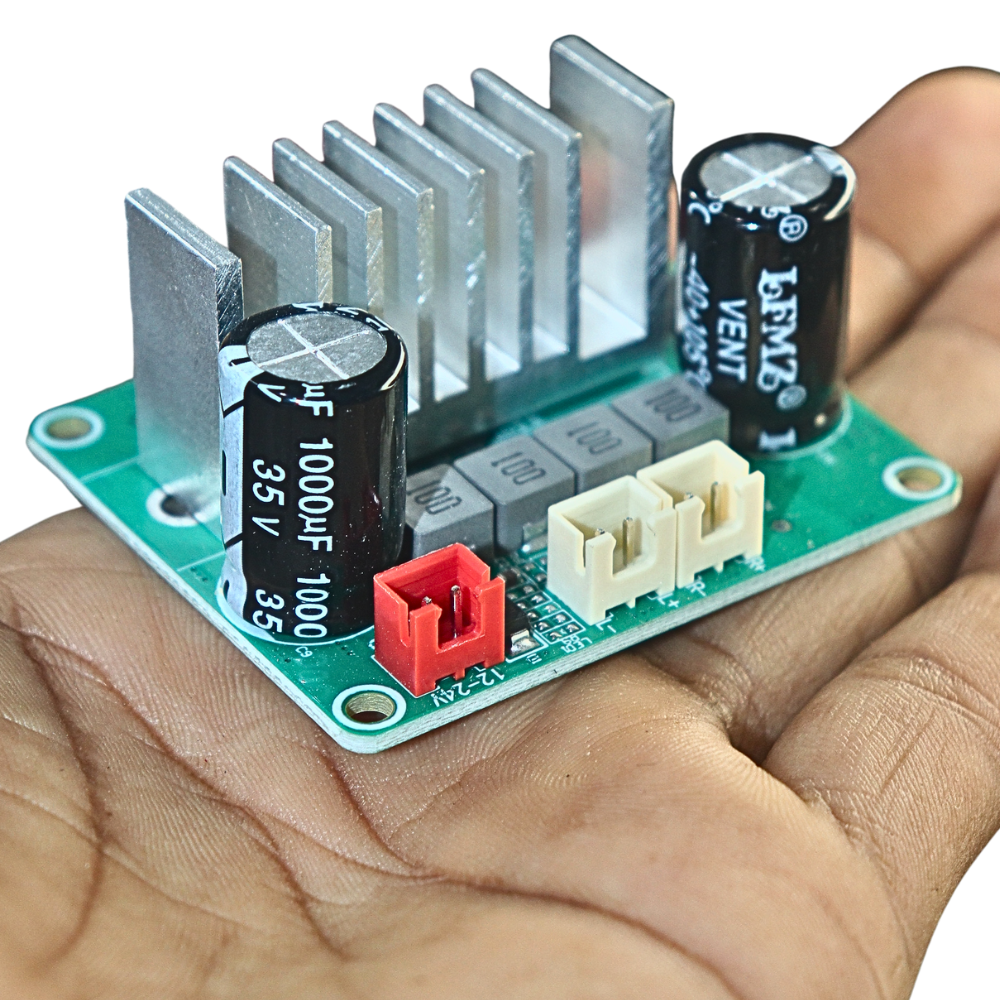

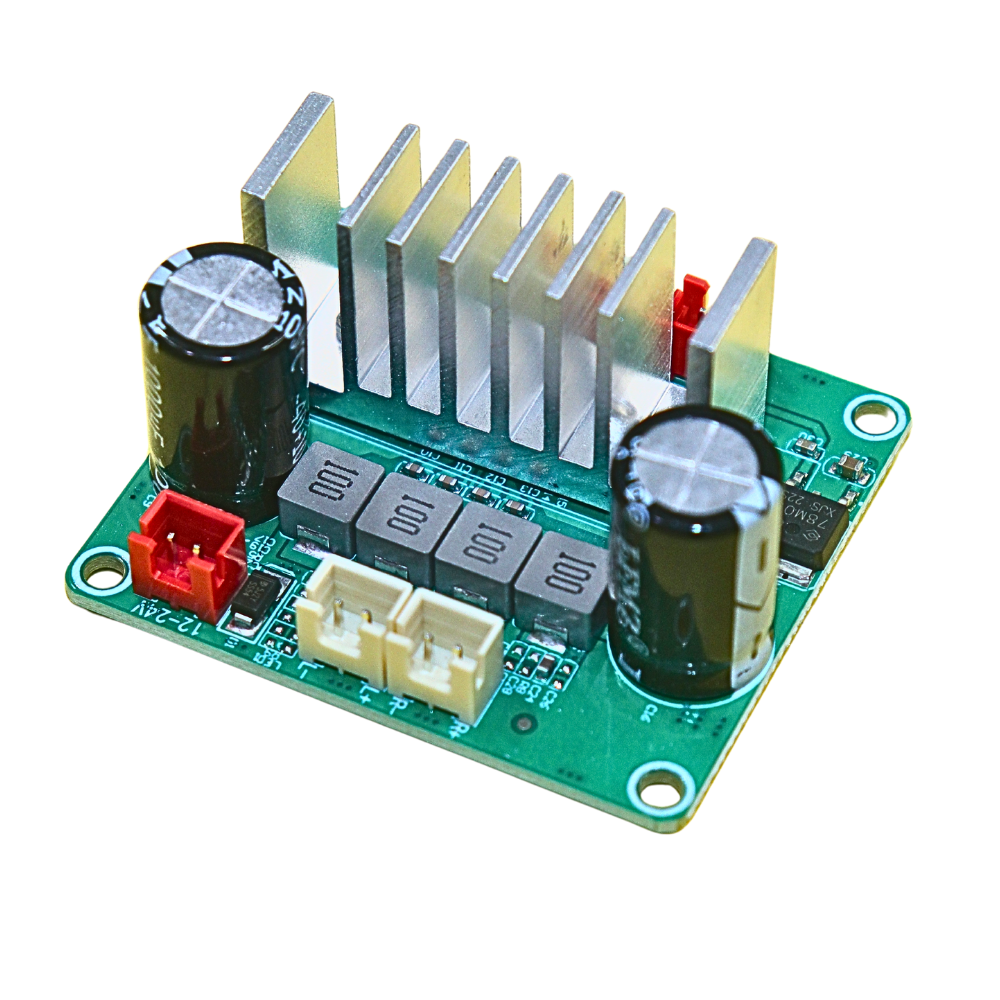

Vire 2C50 50W + 50W Stereo Class-D Amplifier Kit with TPA3116D2 (12V–24V DC)
Upgrade your audio projects with the Vire 2C50 Stereo Amplifier Kit, powered by the highly efficient TPA3116D2 Class-D amplifier IC. Designed for clean sound, high power, and low heat, this amplifier kit is perfect for DIY audio lovers, technicians, and compact speaker systems.
⭐ Key Highlights
- 🔥 High Output Power: 50W + 50W stereo (depending on voltage & speaker impedance)
- ⚡ Wide Voltage Range: Works with 12V to 24V DC power supply
- 🎵 Crystal Clear Sound: Low distortion, high efficiency Class-D design
- ❄️ Low Heat Generation: Ideal for long-hour operation
- 🧠 TPA3116D2 IC: Popular and trusted audio amplifier chipset
- 🔧 DIY Friendly: Easy to install and integrate into audio projects
🧠 What Makes This Amplifier Special?
The TPA3116D2 is known for its excellent sound quality and power efficiency. Unlike old Class-AB amplifiers, this Class-D design wastes less power as heat, giving you:
- Better sound clarity 🎶
- Smaller heatsink requirement 🔩
- Longer component life ⏳
This makes the Vire 2C50 amplifier ideal for portable speakers, home audio systems, and custom-built sound projects.
📊 Technical Specifications
| Feature | Details |
|---|---|
| Product Name | Vire 2C50 Stereo Amplifier Kit |
| Amplifier IC | TPA3116D2 |
| Output Power | 50W + 50W (Max) |
| Channel | 2 Channel (Stereo) |
| Amplifier Class | Class-D |
| Input Voltage | DC 12V – 24V |
| Recommended Voltage | 19V – 24V for best performance |
| Speaker Impedance | 4Ω – 8Ω |
| Efficiency | Up to 90% |
| Audio Input | AUX / Line-In |
| Board Type | DIY / Ready-to-Use PCB |
| Protection | Over-current & Thermal Protection |
🛠 Applications & Use Cases
Perfect choice for:
- 🔊 DIY Bluetooth Speaker Projects
- 🏠 Home Audio & Mini Hi-Fi Systems
- 🔧 Electronics Learning & Training
- 🚗 Car Audio DIY Builds
- 🎤 PA System (Small Scale)
- 🧪 Audio Testing & Lab Use
⚠️ Usage Tips
- ✔ Use a good quality SMPS or battery for noise-free output
- ✔ Match speaker impedance (4–8Ω) correctly
- ✔ For full power, use 24V DC with proper current rating
- ❌ Do not short speaker output terminals
